C0603C223K5RAC 其他数据使用手册 - KEMET Corporation（基美）

制造商:

KEMET Corporation（基美）

分类:

电容

封装:

0603

描述:

陶瓷电容器 Ceramic Capacitor

Pictures:

3D模型

符号图

焊盘图

引脚图

产品图

页面导航:

标记信息在P1

封装信息在P1

技术参数、封装参数在P1

查看文档

1 技术参数、封装参数

导航目录

标记信息在P1
封装信息在P1
技术参数、封装参数在P1

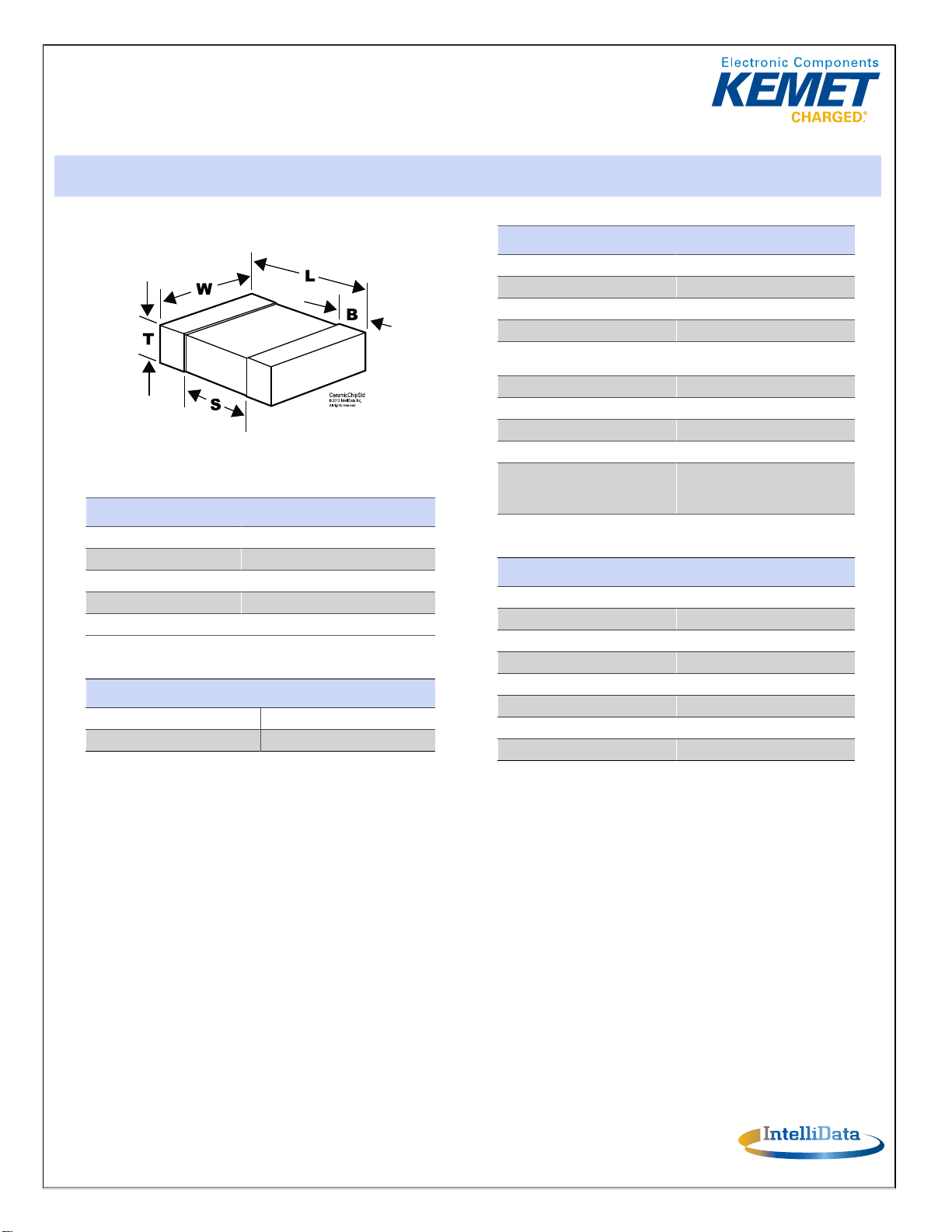

C0603C223K5RAC数据手册

Page:

of 1 Go

PDF下载

若手册格式错乱，请下载阅览PDF原文件

Generated - e4033134-a6f0-4ac3-a3f4-861344d8574e

KEMET Part Number: C0603C223K5RACTU

(C0603C223K5RAC7867, C0603C223K5RACTR, 0603C223K5RACTU)

Ceramic, Commercial Grade, KEMET, Commercial-(CxxxxC), 0.022 uF, 10%, 50 V, 0603, X7R, SMD, MLCC, Temperature Stable,

Class II

Dimensions

L 1.6mm +/-0.15mm

W 0.8mm +/-0.15mm

T 0.8mm +/-0.07mm

S 0.7mm MIN

B 0.35mm +/-0.15mm

Packaging Specifications

Packaging: T&R, 180mm, Paper Tape

Packaging Quantity: 4000

General Information

Style: SMD Chip

Supplier: KEMET

Series: Commercial-(CxxxxC)

Chip Size: 0603

Description:

SMD, MLCC, Temperature

Stable, Class II

RoHS: Yes

Termination: Tin

Marking: No

Failure Rate: N/A

Miscellaneous:

Note: Referee time for X7R

dielectric for this part number is

1000 hours

Specifications

Capacitance: 0.022 uF

Capacitance Tolerance: 10%

Voltage DC: 50 VDC

Temperature Range: -55/+125C

Temperature Coefficient: X7R

Dissipation Factor: 2.5%

Aging Rate: 3% Loss/Decade Hour

Dielectric Strength: 125 V

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
