C0603C333K5RALTU
aka C0603C333K5RAL7867
Capacitor, ceramic, 0.033 uF, +/-10% Tol, 50V, X7R, 0603

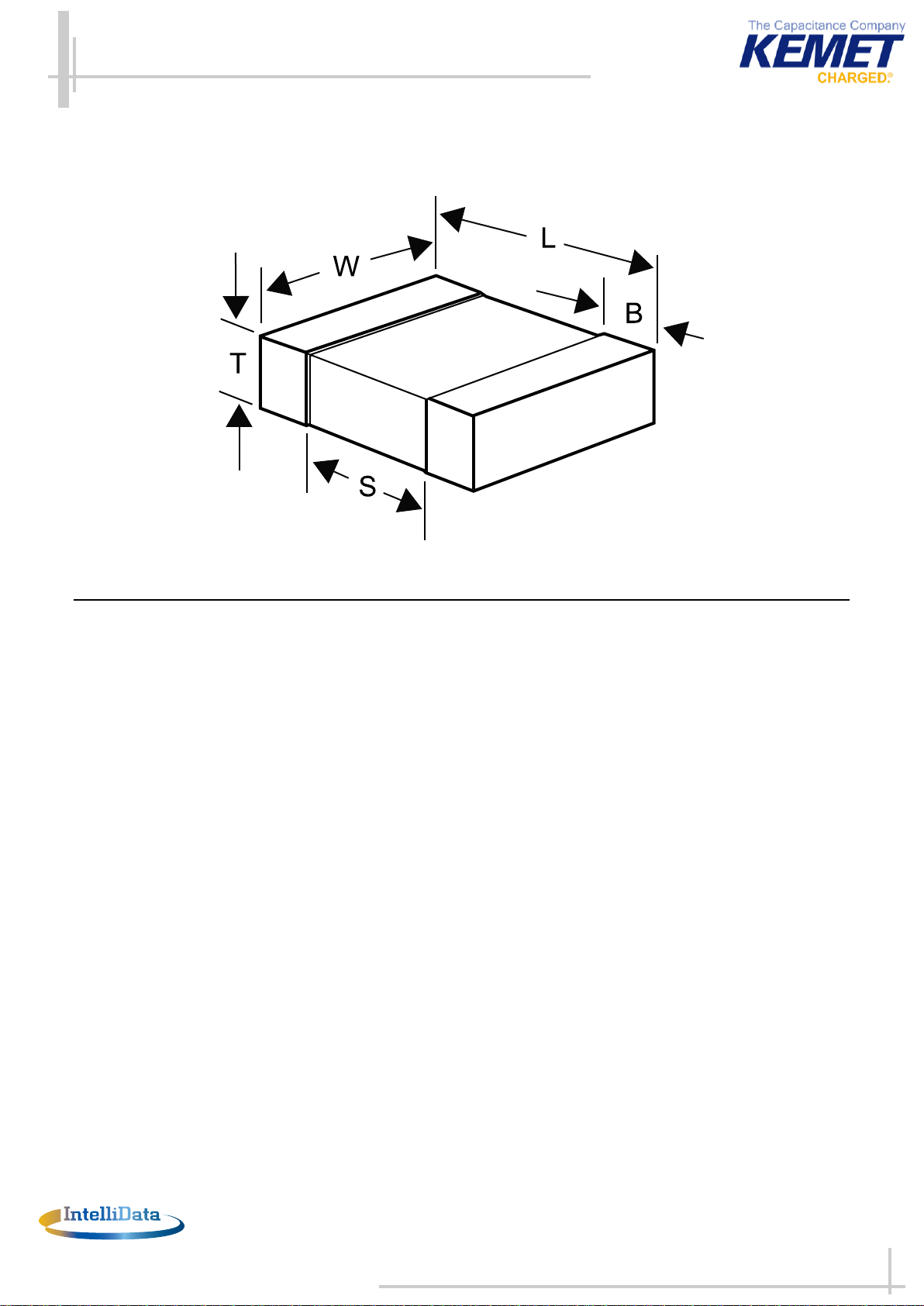

Dimensions (mm)
ID Dimension Tolerance
L 1.60 +/-0.15
W 0.80 +/-0.15
T 0.8 +/-0.07
B .35 +/-0.15
S 0.7 min
Specifications
Manufacturer: KEMET
Capacitance: 0.033 uF
Chip Size: 0603
Voltage: 50V
Temperature Coefficient: X7R
Tolerance: +/-10%
Application: Std Chip
Termination Type: Tin-Lead (SnPb)
Marked: No
Dissipation Factor: 2.5%
Insulation Resistance: 30.3 GOhm
Dielectric Strength: 125V
Miscellaneous Electrical: Note: Kemet 50 Volt parts may be
operated afor 63 volt applicaitons
Package Kind: T&R
Package Size: 7in
Package Type: Paper Tape
Package Quantity: 4000
© 2006-2012 IntelliData.net
Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but
are not intended to constitute - and we specifically disclaim - any warranty concerning suitability for a specific customer application or
use. This Information is intended for use only by customers who have the requisite experience and capability to determine the correct
products for their application. Any technical advice inferred from this Information or otherwise provided by us with reference to the use of
our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
