© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1003_C0G • 1/8/2013 2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – C0G Dielectric, 10 – 200 VDC (Commercial Grade)

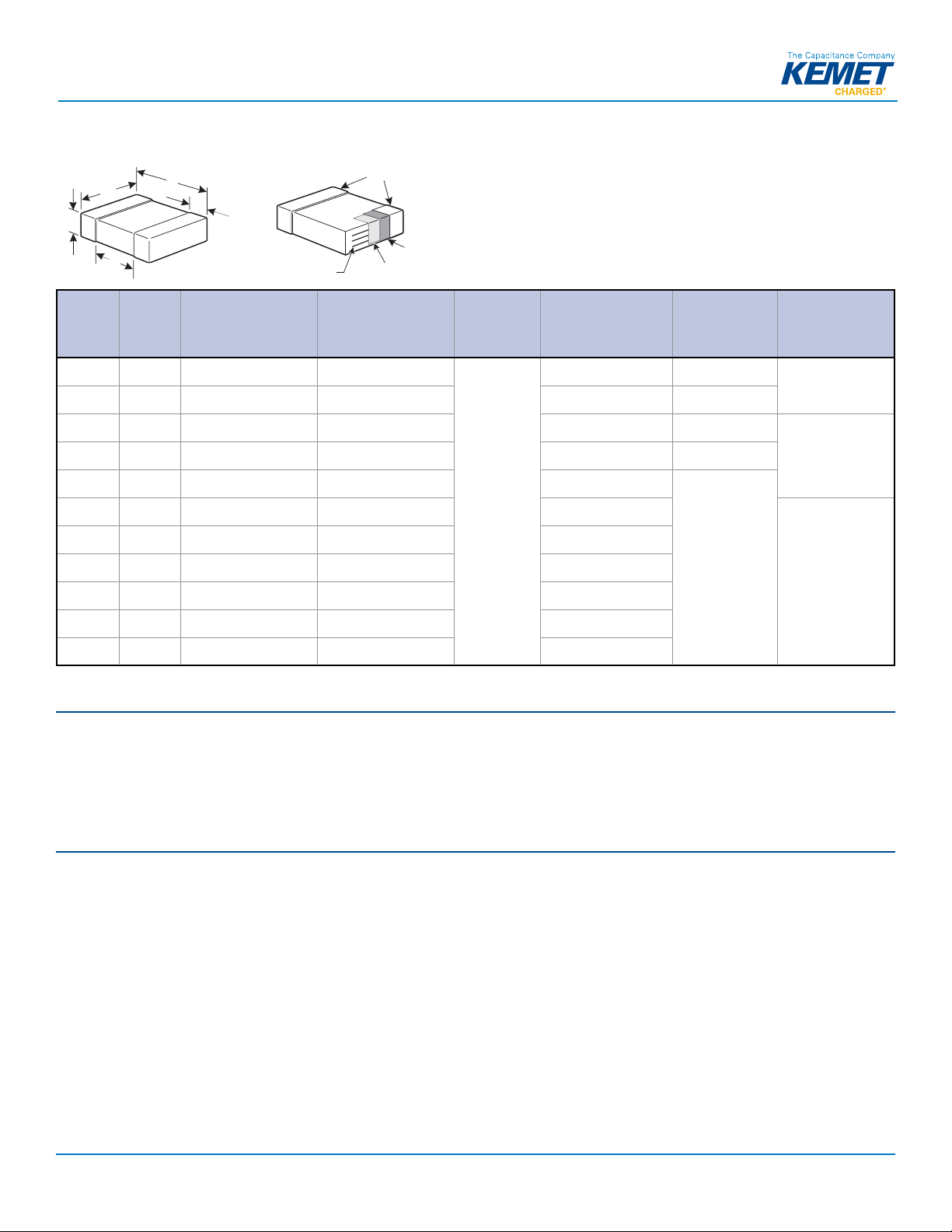

Dimensions – Millimeters (Inches)
Ceramic Surface Mount
W
L
T
B
S
100% Tin or SnPb Plate
Nickel Plate
Conductive Metalization
Electrodes
EIA
Size
Code
Metric
Size
Code
L
Length
W
Width
T
Thickness
B
Bandwidth
S
Separation
Minimum
Mounting
Technique
0201 0603 0.60 (.024) ± 0.03 (.001) 0.30 (.012) ± 0.03 (.001)
See Table 2 for
Thickness
0.15 (.006) ± 0.05 (.002) N/A
Solder Reow Only
0402 1005 1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002) 0.30 (.012) ± 0.10 (.004) 0.30 (.012)
0603 1608 1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006) 0.35 (.014) ± 0.15 (.006) 0.70 (.028)
Solder Wave or
Solder Reow
0805 2012 2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008) 0.50 (0.02) ± 0.25 (.010) 0.75 (.030)
1206 3216 3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008) 0.50 (0.02) ± 0.25 (.010)
N/A
1210 3225 3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008) 0.50 (0.02) ± 0.25 (.010)
Solder Reow Only
1808 4520 4.70 (.185) ± 0.50 (.020) 2.00 (.079) ± 0.20 (.008) 0.60 (.024) ± 0.35 (.014)
1812 4532 4.50 (.177) ± 0.30 (.012) 3.20 (.126) ± 0.30 (.012) 0.60 (.024) ± 0.35 (.014)
1825 4564 4.50 (.177) ± 0.30 (.012) 6.40 (.252) ± 0.40 (.016) 0.60 (.024) ± 0.35 (.014)
2220 5650 5.70 (.224) ± 0.40 (.016) 5.00 (.197) ± 0.40 (.016) 0.60 (.024) ± 0.35 (.014)
2225 5664 5.60 (.220) ± 0.40 (.016) 6.40 (.248) ± 0.40 (.016) 0.60 (.024) ± 0.35 (.014)
Applications
Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass,
ltering, transient voltage suppression, blocking and energy storage.
Qualication/Certication
Commercial Grade products are subject to internal qualication. Details regarding test methods and conditions are referenced in
Table 4, Performance and Reliability.
