C8051F00x/01x-DK
Rev. 0.6 5
6. Target Board
The C8051F00x/01x Development Kit includes a target board with a C8051F005 device pre-installed for evaluation
and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyp-
ing using the target board. Refer to
Figure 2
for the locations of the various I/O connectors.
P1 Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1 Connects SW2 to port pin P1.7
J2 64-pin I/O connector providing access to all I/O signals
J3 Connects LED D3 to port pin P1.6
J4 JTAG connector for Debug Adapter interface
J6 Analog I/O configuration connector
X1 Analog I/O terminal block

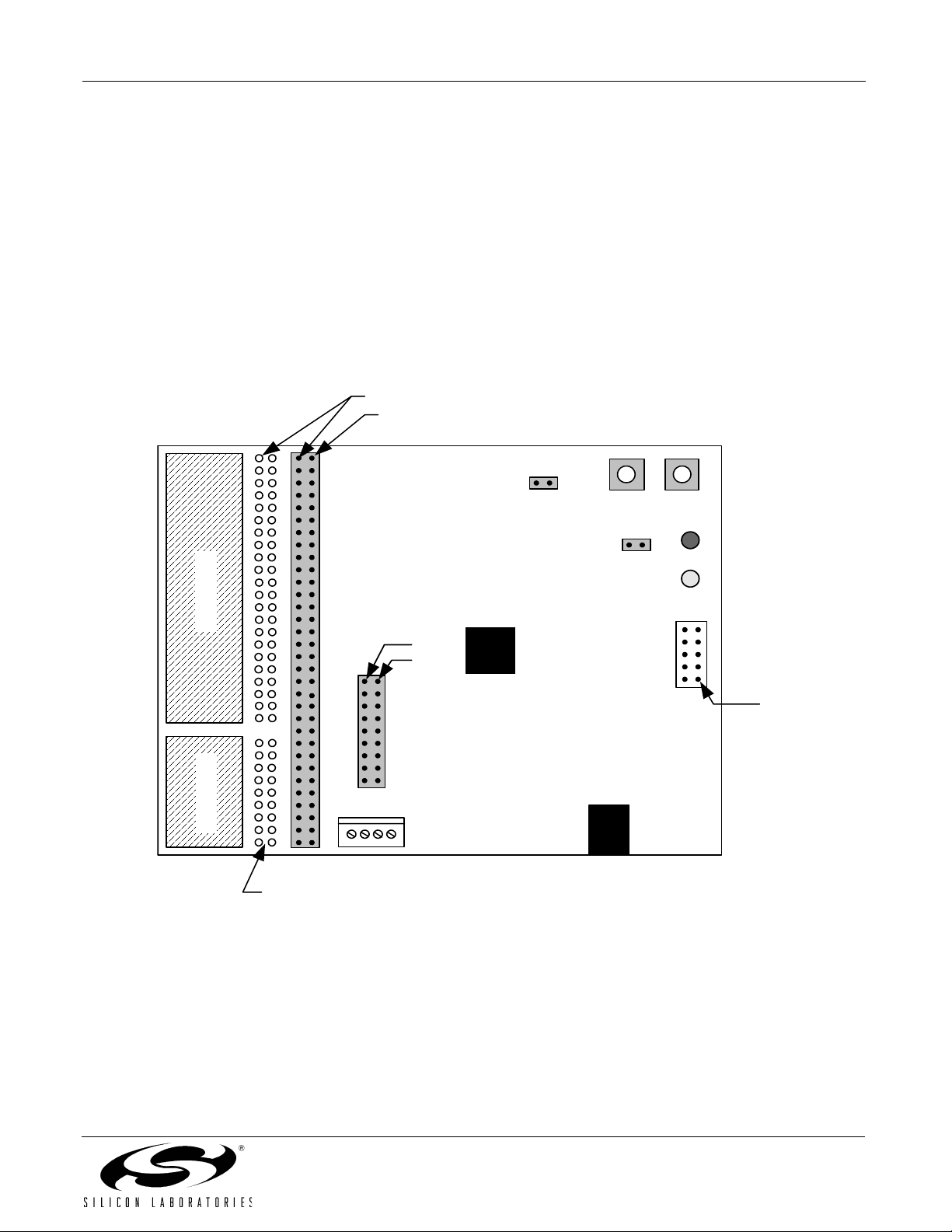

Figure 2. C8051F005 Target Board
J3
J1
P1
Proto AreaProto Area
J
2
Pin 1
Prototyping Area I/O Connection Points
J
6
Pin 2
P1.7 RESET
PWRP1.6
Pin 1
JTAG
C8051F005
Pin 1
Pin 2
X1
