C8051F310-TB 其他数据使用手册 - Silicon Labs（芯科）
制造商:
Silicon Labs（芯科）
分类:
开发套件
封装:
LQFP
描述:
开发套件, C8051F310 MCU, 片上调试电路, 29端口I/O, 看门狗定时器
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P2
技术参数、封装参数在P2
电气规格在P2
导航目录
C8051F310-TB数据手册
Page:
of 2 Go
若手册格式错乱，请下载阅览PDF原文件

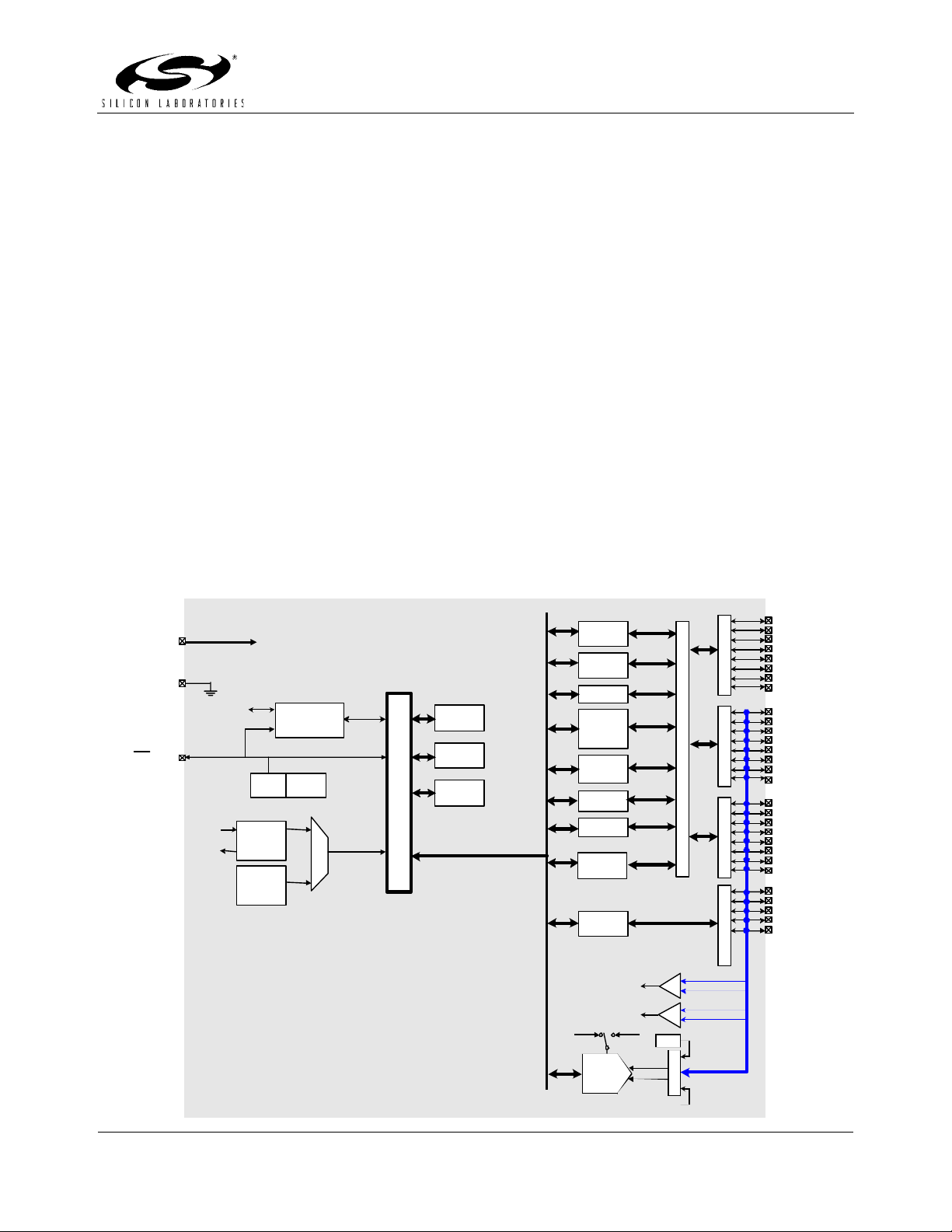

Small Form Factor Copyright © 2004 by Silicon Laboratories 6.15.2004
UART
16 kB
FLASH
256 By te
SRAM
POR
SFR Bus
8
0
5
1
C
o
r
e
Reset
RST/C2CK
External
Oscillator
Circuit
Debug
HW
Brown-
Out
Analog /Dig ital
Power
P
0
D
r
v
1 kB
XR AM
XTAL1
XTAL2
SPI
VDD
GND
C
R
O
S
S
B
A
R
P
1
D
r
v
Port 0
Latch
SMBus
Timer
0,1,2,3 /
RTC
Port 1
Latch
2%
Internal
Oscillator
System Clock
P
2
D
r
v
P
3
D
r
v
10-bit
200 ksps
AD C
A
M
U
X
AIN0-AIN20
VREF
VDD
CP1
+
-
Temp
CP0
+
-
C2D
Port 2
Latch
Port 3
Latch
PCA/
WDT
VDD/
VREF
P0.0/VREF
P0.1
P0.2/XTAL1
P0.3/XTAL2
P0.4/TX
P0.5/RX
P0.6/CNVST
P0.7
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
P3.0/C2D
P3.1
P3.2
P3.3
P3.4
C8051F310
25 MIPS, 16 kB Flash, 10-Bit ADC, 32-Pin Mixed-Signal MCU
Analog Peripherals
10-Bit ADC
- ±1 LSB INL; no missing codes
- Programmable throughput up to 200 ksps
- Up to 21 external inputs; programmable as single-ended or differential
- Data-dependent windowed interrupt generator
- Built-in temperature sensor (±3 °C)
Two Comparators
- Programmable hysteresis and response time
- Configurable to generate interrupts or reset
- Low current (0.4 µA)
POR/Brown-out Detector
On-Chip Debug
- On-chip debug circuitry facilitates full speed, non-intrusive in-system
debug (no emulator required)
- Provides breakpoints, single stepping
- Inspect/modify memory and registers
- Superior performance to emulation systems using ICE-chips, target
pods, and sockets
Supply Voltage: 2.7 to 3.6 V
- Typical Operating Current: 7 mA at 25 MHz
15 µA at 32 kHz
- Typical Stop Mode Current: <0.1 µA
High-Speed 8051 µC Core
- Pipelined instruction architecture; executes 70% of instructions in 1 or 2
system clocks
- Up to 25 MIPS throughput with 25 MHz system clock
- Expanded interrupt handler
Memory
- 1280 bytes data RAM
- 16 kB Flash; in-system programmable in 512-byte sectors (512 bytes
are reserved)
Digital Peripherals
- 29 port I/O; all are 5 V tolerant
- Hardware SMBus™ (I2C™ compatible), SPI™, and UART serial ports
available concurrently
- Programmable 16-bit counter/timer array with five capture/compare
modules, WDT
- 4 general-purpose 16-bit counter/timers
- Realtime clock mode using timer or PCA
Clock Sources
- Internal oscillator: 24.5 MHz, 2% accuracy supports UART operation
- External oscillator: Crystal, RC, C, or Clock (1 or 2 pin modes)
- Can switch between clock sources on-the-fly
32-Pin LQFP
Temperature Range: –40 to +85 °C
