Rev. 0.4 12/07 Copyright © 2007 by Silicon Laboratories C8051F064-EK
C8051F064-EK
C8051F064 EVALUATION KIT USER’S GUIDE
1. Relevant Devices
The C8051F064 Evaluation Kit is intended as an evaluation platform for the microcontrollers in the C8051F06x
MCU family. The members of this MCU family are C8051F060, C8051F061, C8051F062, C8051F063,
C8051F064, C8051F065, C8051F066, and C8051F067.
The evaluation board included in this kit is provided with a pre-soldered C8051F064 MCU (TQFP100 package).
Code developed on the C8051F064 can be easily ported to the other members of this MCU family.
Refer to the C8051F06x data sheet for the differences between the members of this MCU family.
2. Kit Contents
C8051F064 Evaluation Kits contain the following items:
C8051F064 Evaluation Board
Silicon Laboratories Evaluation Kit IDE and Product Information CD-ROM. CD content includes the following:
Silicon Laboratories Integrated Development Environment (IDE)
Keil Software 8051 Development Tools (evaluation assembler, linker, and C compiler)
Source code examples and register definition files
Documentation
Evaluation Kit Demos, C8051F064 ADC Demo
USB Cable
C8051F064 Evaluation Kit User’s Guide
3. Kit Overview
Figure 1 illustrates the block diagram of the C8051F064 Evaluation Kit. The board includes an analog front end to
signal condition and digitize (through the C8051F064) analog input signals. The board also includes two USB ports
to transfer conversions to a PC: the DATA Port and the Self-Demo/IDE Debug port. The DATA port consists of a
Silicon Laboratories CP2101 (UART to USB bridge) and a USB connector. The Self-Demo/IDE Debug port
consists of Silicon Laboratories’ debug interface hardware and a USB connector.
Power for the C8051F064 board can be supplied from either USB connection. An alternative lower noise supply
can be used for better measurement performance if desired. Refer to Section 9. for more details.

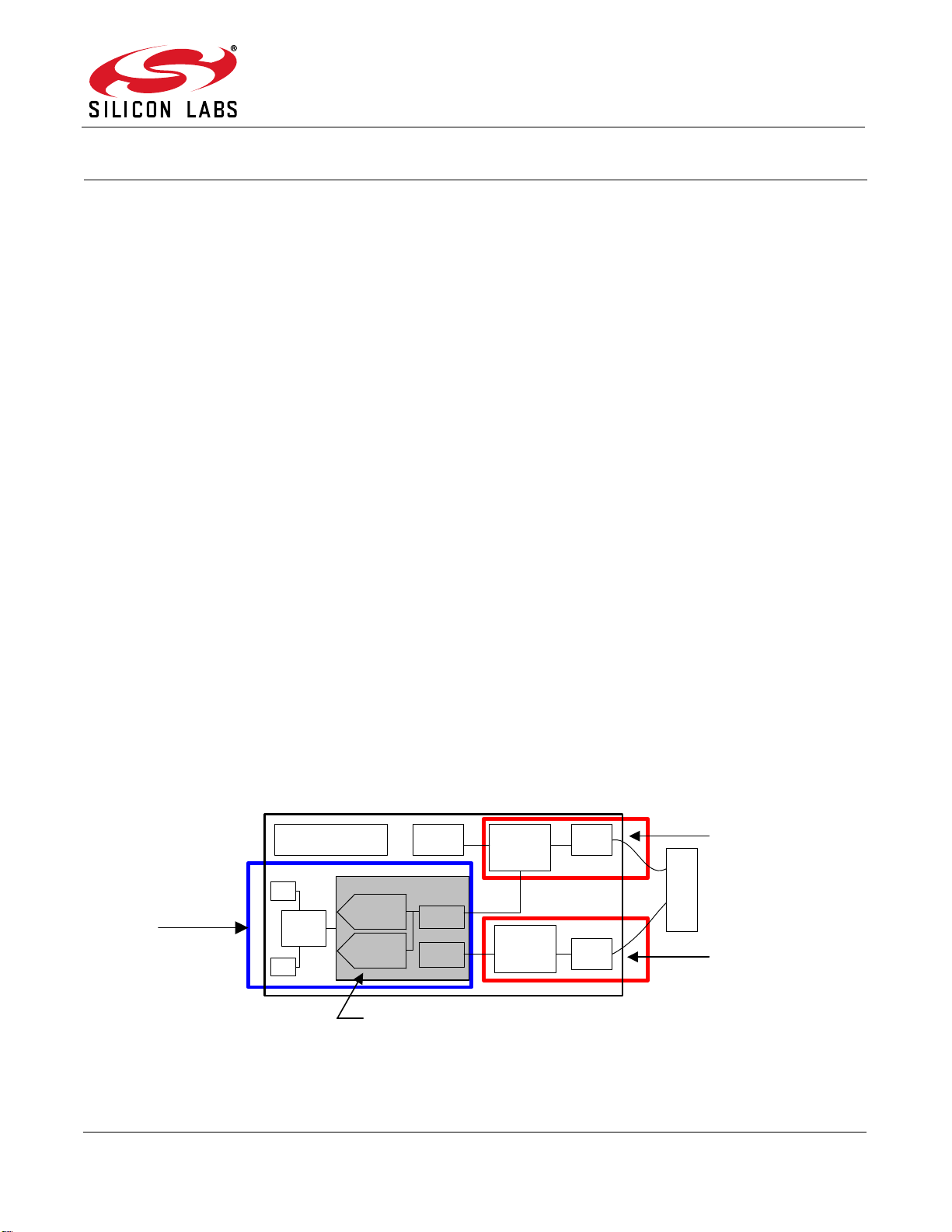

Figure 1. C8051F064 Evaluation Board Block Diagram
USB
CONN
USB
CONN
C8051F064
16-BIT
SAR
16-BIT
SAR
SERIAL
I/F
DEBUG
VOLT
SUPPLY
ALT. VOLT SUPPLY
INTERFACE
Dual 1 Msps High-Resolution Data Acquisition
INL: ±0.75 LSB
SiNAD: 89 dB
Power: 20 mW
PC
1. Self-Demo Port
2. IDE Debug Port
(Tools Test Drive)
Data Port
Analog Front End
BNC
BNC
INPUT
CKT
I/F
PROGRAM
/DEBUG
PORT
DATA
PORT
