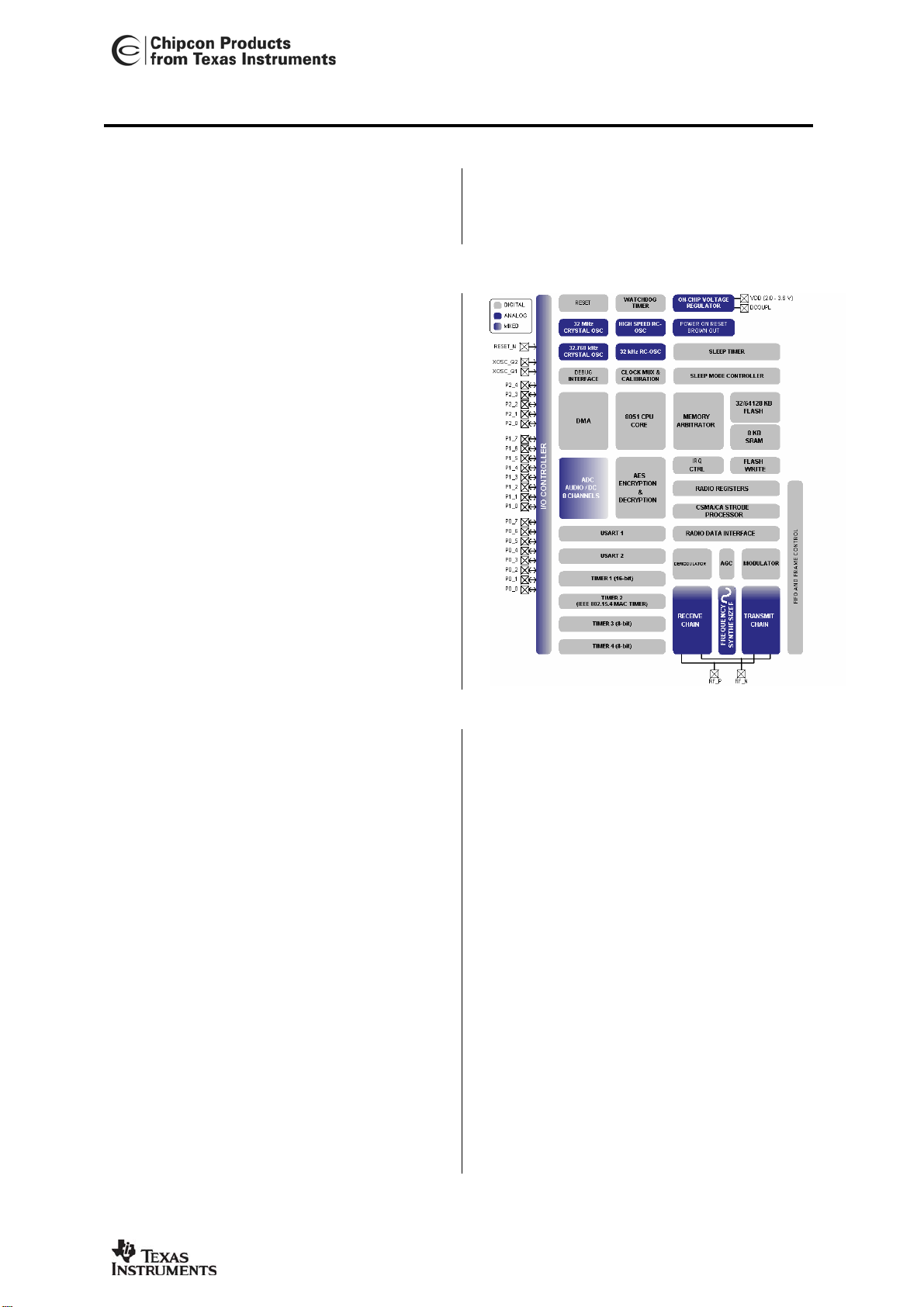

CC2430
CC2430 Data Sheet (rev. 2.1) SWRS036F Page 1 of 211
A True System-on-Chip solution for 2.4 GHz IEEE 802.15.4 / ZigBee
®
Applications
• 2.4 GHz IEEE 802.15.4 systems
• ZigBee
®
systems
• Home/building automation
• Industrial Control and Monitoring
• Low power wireless sensor networks
• PC peripherals
• Set-top boxes and remote controls
• Consumer Electronics
Product Description
The
CC2430
comes in three different flash
versions: CC2430F32/64/128, with 32/64/128
KB of flash memory respectively. The
CC2430
is a true System-on-Chip (SoC) solution
specifically tailored for IEEE 802.15.4 and
ZigBee
®
applications. It enables ZigBee
®
nodes to be built with very low total bill-of-
material costs. The
CC2430
combines the
excellent performance of the leading
CC2420
RF transceiver with an industry-standard
enhanced 8051 MCU, 32/64/128 KB flash
memory, 8 KB RAM and many other powerful
features. Combined with the industry leading
ZigBee
®
protocol stack (Z-Stack™) from Texas
Instruments, the
CC2430
provides the market’s
most competitive ZigBee
®
solution.
The
CC2430
is highly suited for systems where
ultra low power consumption is required. This
is ensured by various operating modes. Short
transition times between operating modes
further ensure low power consumption.
Key Features
• RF/Layout
o 2.4 GHz IEEE 802.15.4 compliant RF
transceiver (industry leading CC2420 radio
core)
o Excellent receiver sensitivity and robustness to
interferers
o Very few external components
o Only a single crystal needed for mesh network
systems
o RoHS compliant 7x7mm QLP48 package
• Low Power
o Low current consumption (RX: 27 mA, TX: 27
mA, microcontroller running at 32 MHz)
o Only 0.5 µA current consumption in powerdown
mode, where external interrupts or the RTC
can wake up the system
o 0.3 µA current consumption in stand-by mode,
where external interrupts can wake up the
system
o Very fast transition times from low-power
modes to active mode enables ultra low
average power consumption in low dutycycle
systems
o Wide supply voltage range (2.0V - 3.6V)
• Microcontroller
o High performance and low power 8051
microcontroller core
o 32, 64 or 128 KB in-system programmable
flash
o 8 KB RAM, 4 KB with data retention in all
power modes
o Powerful DMA functionality
o Watchdog timer
o One IEEE 802.15.4 MAC timer, one general
16-bit timer and two 8-bit timers
o Hardware debug support
• Peripherals
o CSMA/CA hardware support.
o Digital RSSI / LQI support
o Battery monitor and temperature sensor
o 12-bit ADC with up to eight inputs and
configurable resolution
o AES security coprocessor
o Two powerful USARTs with support for several
serial protocols
o 21 general I/O pins, two with 20mA sink/source
capability
• Development tools
o Powerful and flexible development tools
available
Not Recommended for New Designs
