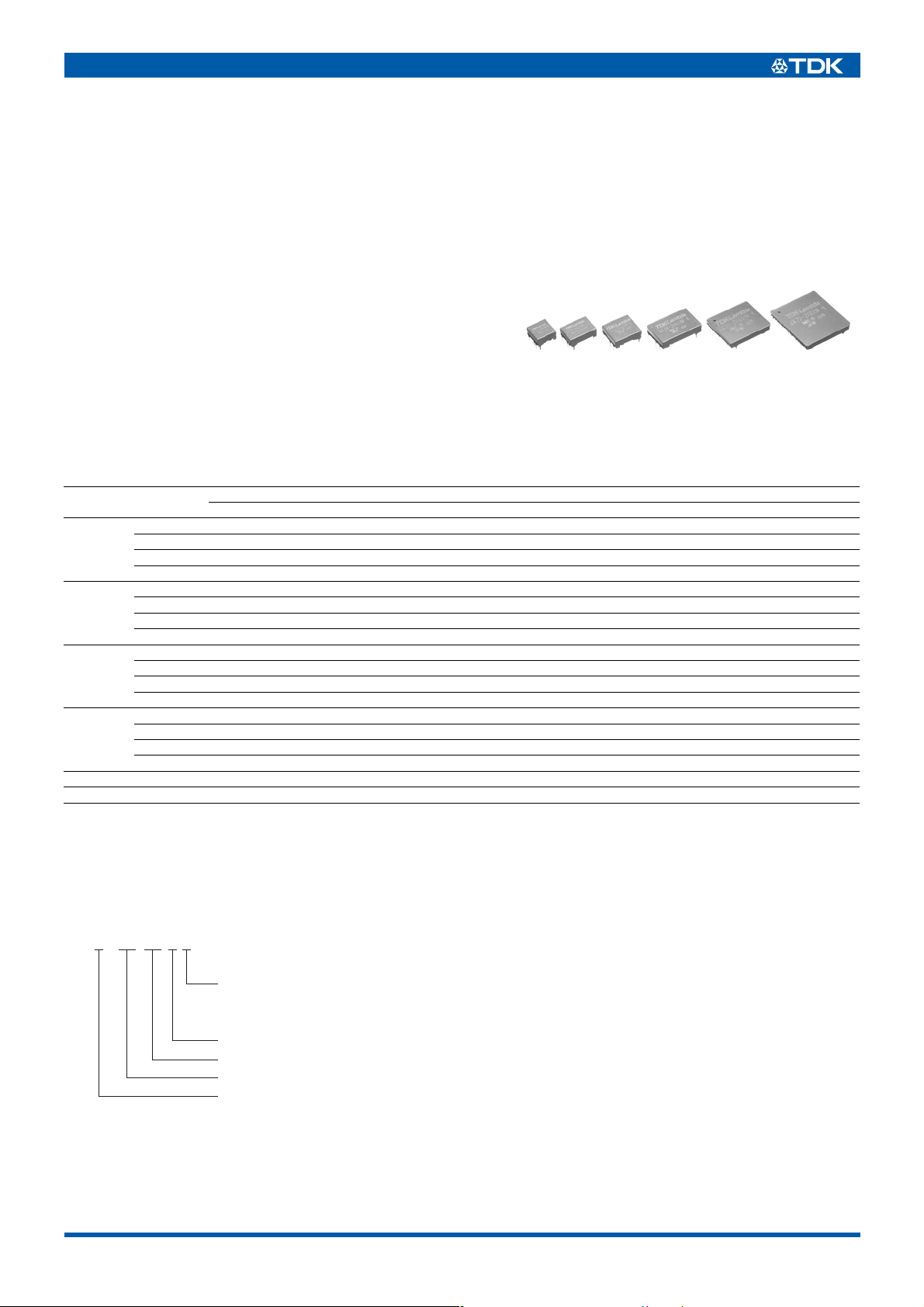

(1/21)
002-05 / 20061129 / ea335_cc_e.fm
• All specifications are subject to change without notice.
DC to DC Converters
Insulated Type, Ultra Compact Size, 1.5 to 25W Output, 5-year Warranty Period
CC-E Series
FEATURES
• Compact size(almost half floor space of existing product).
• No tantalum capacitor and no aluminum electrolytic capacitor
are used.
• All series are equipped with a built-in remote control function
(except for SIP).
• Output voltage tolerance ±3%(under 10W, at single output).
• Light weight(no potting).
• It is a product conforming to RoHS directive.
• These are PWB halogen-free pc board.
• Both mountings of DIP type and SMD type are available.
• UL60950-1, C-UL CSA 60950-1 and EN60950-1 approved
(partial approved).
PART NUMBERS AND RATINGS
∗1
An "x" within the product name is to be replaced by the symbol representing the terminal structure (F: DIP / R: SMD / S: SIP).
Note that the SIP type is limited to 3W.
∗2
The output voltage can be set to 15V, ±15V, by connecting the 12Vout, ±12V TRM (output variable) to –Vout.
∗3
24V single output is possible by opening the ±12Vout COM terminal and connecting the load to +Vout, –Vout. Also, 30V single output is possible when
connecting the TRM terminal with –Vout under the same conditions.
PRODUCT IDENTIFICATIONS
Conformity to RoHS Directive
Output
power
Input
voltage
Output voltage
3.3V 5V 12V(15V
∗2
)±12V(15V
∗2
) or 24V, 30V
∗3
1.5W
5V CC1R5-0503Sx
∗1
-E CC1R5-0505Sx-E CC1R5-0512Sx-E CC1R5-0512Dx-E
12V CC1R5-1203Sx-E CC1R5-1205Sx-E CC1R5-1212Sx-E CC1R5-1212Dx-E
24V CC1R5-2403Sx-E CC1R5-2405Sx-E CC1R5-2412Sx-E CC1R5-2412Dx-E
48V CC1R5-4803Sx-E CC1R5-4805Sx-E CC1R5-4812Sx-E CC1R5-4812Dx-E
3W
5V CC3-0503Sx-E CC3-0505Sx-E CC3-0512Sx-E CC3-0512Dx-E
12V CC3-1203Sx-E CC3-1205Sx-E CC3-1212Sx-E CC3-1212Dx-E
24V CC3-2403Sx-E CC3-2405Sx-E CC3-2412Sx-E CC3-2412Dx-E
48V CC3-4803Sx-E CC3-4805Sx-E CC3-4812Sx-E CC3-4812Dx-E
6W
5V CC6-0503Sx-E CC6-0505Sx-E CC6-0512Sx-E CC6-0512Dx-E
12V CC6-1203Sx-E CC6-1205Sx-E CC6-1212Sx-E CC6-1212Dx-E
24V CC6-2403Sx-E CC6-2405Sx-E CC6-2412Sx-E CC6-2412Dx-E
48V CC6-4803Sx-E CC6-4805Sx-E CC6-4812Sx-E CC6-4812Dx-E
10W
5V CC10-0503Sx-E CC10-0505Sx-E CC10-0512Sx-E CC10-0512Dx-E
12V CC10-1203Sx-E CC10-1205Sx-E CC10-1212Sx-E CC10-1212Dx-E
24V CC10-2403Sx-E CC10-2405Sx-E CC10-2412Sx-E CC10-2412Dx-E
48V CC10-4803Sx-E CC10-4805Sx-E CC10-4812Sx-E CC10-4812Dx-E
15W 24V CC15-2403Sx-E CC15-2405Sx-E
25W 24V CC25-2403Sx-E CC25-2405Sx-E
CC3-0505SF-E
Form symbols
Output mode symbols
Output voltage
Input voltage
Output power
F: Horizontal DIP type
R: Horizontal SMD type
S: Vertical SIP type
S: Single output, D: Double output
03: 3.3V / 05: 5V / 12: 12V
05: 5V / 12: 12V / 24: 24V / 48: 48V
1R5: 1.5W / 3: 3W / 6:6W / 10: 10W / 15: 15W / 25: 25W
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
