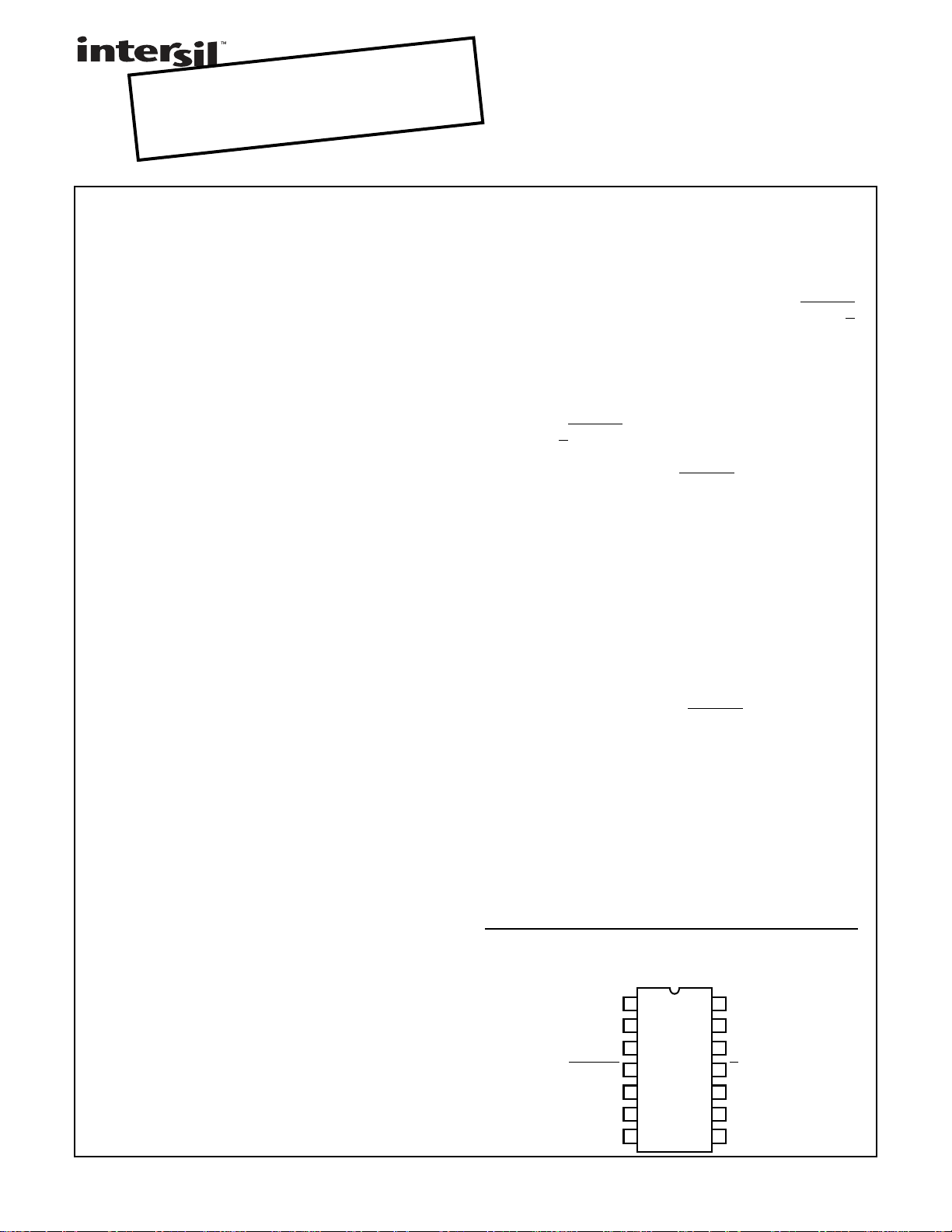

7-897
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143 | Copyright © Intersil Corporation 1999
CD4047BMS
CMOS Low-Power
Monostable/Astable Multivibrator
Description
CD4047BMS consists of a gatable astable multivibrator with logic tech-
niques incorporated to permit positive or negative edge triggered
monostable multivibrator action with retriggering and external counting
options.
Inputs include +TRIGGER, -TRIGGER, ASTABLE, ASTABLE
,
RETRIGGER, and EXTERNAL RESET. Buffered outputs are Q, Q
,
and OSCILLATOR. In all modes of operation, an external capacitor
must be connected between C-Timing and RC-Common terminals, and
an external resistor must be connected between the R-Timing and RC-
Common terminals.
Astable operation is enabled by a high level on the ASTABLE input or a
low level on the ASTABLE
input, or both. The period of the square wave
at the Q and Q
Outputs in this mode of operation is a function of the
external components employed. “True” input pulses on the ASTABLE
input or “Complement” pulses on the ASTABLE
input allow the circuit to
be used as a gatable multivibrator. The OSCILLATOR output period will
be half of the Q terminal output in the astable mode. However, a 50%
duty cycle is not guaranteed at this output.
The CD4047BMS triggers in the monostable mode when a positive
going edge occurs on the +TRIGGER input while the -TRIGGER is held
low. Input pulses may be of any duration relative to the output pulse.
If retrigger capability is desired, the RETRIGGER input is pulsed. The
retriggerable mode of operation is limited to positive going edge. The
CD4047BMS will retrigger as long as the RETRIGGER input is high,
with or without transitions (See Figure 31)
An external countdown option can be implemented by coupling “Q” to
an external “N” counter and resetting the counter with trigger pulse. The
counter output pulse is fed back to the ASTABLE
input and has a dura-
tion equal to N times the period of the multivibrator.
A high level on the EXTERNAL RESET input assures no output pulse
during an “ON” power condition. This input can also be activated to ter-
minate the output pulse at any time. For monostable operation, when-
ever VDD is applied, an internal power on reset circuit will clock the Q
output low within one output period (tM).
The CD4047BMS is supplied in these 14-lead outline packages:
Pinout
CD4047BMS
TOP VIEW
Braze Seal DIP H4Q
Frit Seal DIP H1B
Ceramic Flatpack H3W
C
R
R-C COMMON
ASTABLE
ASTABLE
-TRIGGER
VSS
VDD
OSC OUT
RETRIGGER
Q
Q
EXT. RESET
+TRIGGER
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Features
• High Voltage Type (20V Rating)
• Low Power Consumption: Special CMOS Oscillator
Configuration
• Monostable (One-Shot) or Astable (Free-Running)
Operation
• True and Complemented Buffered Outputs
• Only One External R and C Required
• Buffered Inputs
• 100% Tested for Quiescent Current at 20V
• Standardized, Symmetrical Output Characteristics
• 5V, 10V and 15V Parametric Ratings
• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specifications for Description of
‘B’ Series CMOS Devices”
Monostable Multivibrator Features
• Positive or Negative Edge Trigger
• Output Pulse Width Independent of Trigger Pulse
Duration
• Retriggerable Option for Pulse Width Expansion
• Internal Power-On Reset Circuit
• Long Pulse Widths Possible Using Small RC Compo-
nents by Means of External Counter Provision
• Fast Recovery Time Essentially Independent of Pulse
Width
• Pulse-Width Accuracy Maintained at Duty Cycles
Approaching 100%
Astable Multivibrator Features
• Free-Running or Gatable Operating Modes
• 50% Duty Cycle
• Oscillator Output Available
• Good Astable Frequency Stability: Frequency Deviation:
-= 2% + 0.03%/
o
C at 100kHz
-= 0.5% + 0.015%/
o
C at 10kHz (Circuits “Trimmed”
to Frequency VDD = 10V 10%
Applications
Digital equipment where low power dissipation and/or high noise
immunity are primary design requirements
• Envelope Detection
• Frequency Multiplication
• Frequency Division
• Frequency Discriminators
• Timing Circuits
• Time Delay Applications
December 1992
File Number
3313
OB
S
OL
E
T
E
P
R
OD
U
C
T
N
O R
E
C
OMM
E
N
D
E
D
R
E
P
L
A
C
E
ME
N
T
co
n
t
act
o
u
r
T
ech
n
ical
S
u
p
p
o
r
t
C
en
t
er
at
1-
888-
IN
T
E
R
S
IL
o
r
www
.in
t
er
s
il.co
m
/t
sc
