Data sheet acquired from Harris Semiconductor

SCHS156C

Features

• Buffered Inputs

• Asynchronous Parallel Load

• Complementary Outputs

• Fanout (Over Temperature Range)

- Standard Outputs. . . . . . . . . . . . . . . 10 LSTTL Loads

- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads

• Wide Operating Temperature Range . . . -55

C to 125

• Balanced Propagation Delay and Transition Times

• Signiﬁcant Power Reduction Compared to LSTTL

Logic ICs

• HC Types

- 2V to 6V Operation

- High Noise Immunity: N

= 30%, N

= 30% of V

at V

= 5V

• HCT Types

- 4.5V to 5.5V Operation

- Direct LSTTL Input Logic Compatibility,

= 0.8V (Max), V

= 2V (Min)

- CMOS Input Compatibility, I

≤ 1µA at V

, V

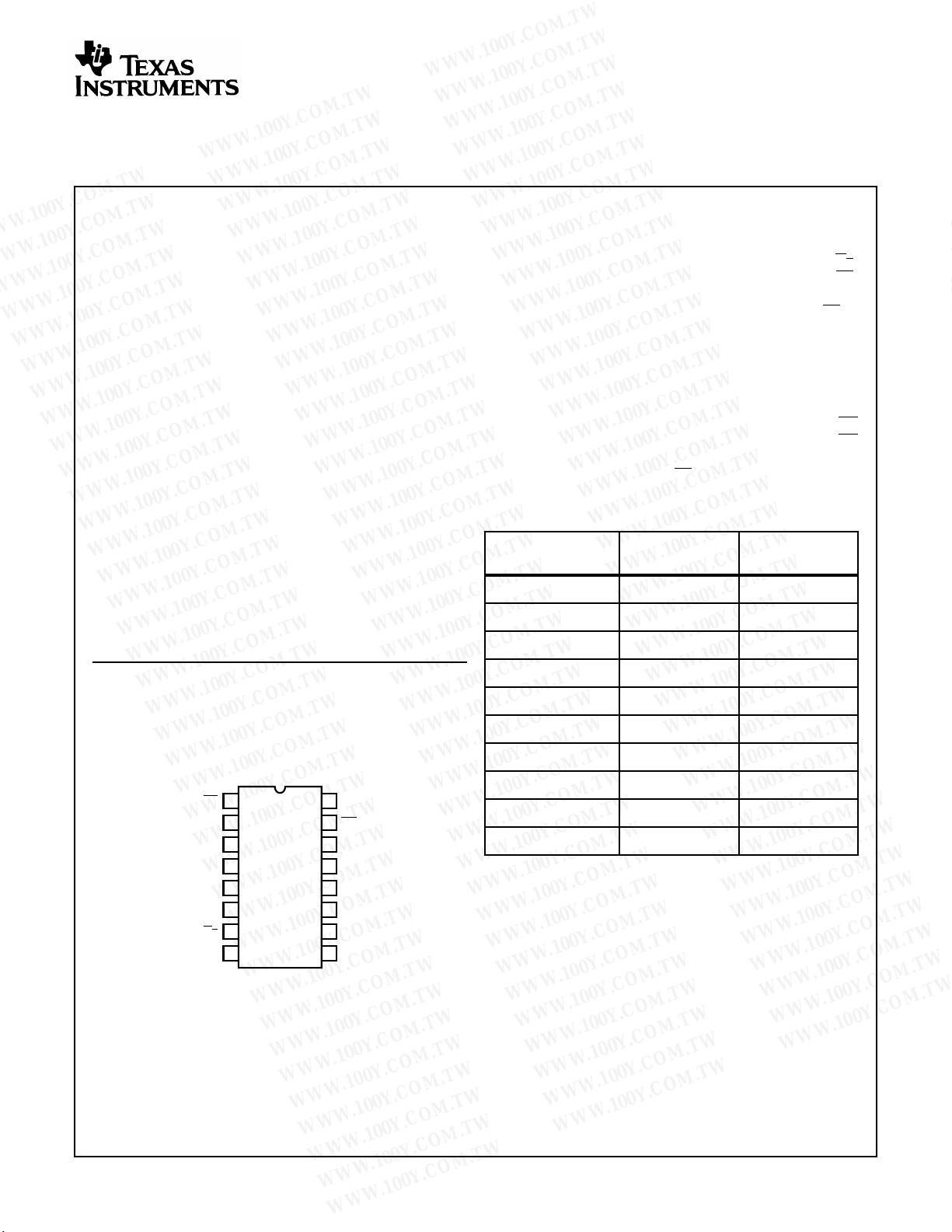

Pinout

CD54HC165, CD54HCT165

(CERDIP)

CD74HC165, CD74HCT165

(PDIP, SOIC)

TOP VIEW

Description

The ’HC165 and ’HCT165 are 8-bit parallel or serial-in shift

registers with complementary serial outputs (Q

and Q

)

available from the last stage. When the parallel load (

PL)

input is LOW, parallel data from the D0 to D7 inputs are

loaded into the register asynchronously. When the

PL is

HIGH, data enters the register serially at the DS input and

shifts one place to the right (Q

→Q

, etc.) with each

positive-going clock transition. This feature allows parallel-

to-serial converter expansion by typing the Q

output to the

DS input of the succeeding device.

For predictable operation the LOW-to-HIGH transition of

should only take place while CP is HIGH. Also, CP an d

should be LOW before the LOW-to-HIGH transition of PL to

prevent shifting the data when

PL goes HIGH.

GND

Ordering Information

PART NUMBER

TEMP. RANGE

(

C) PACKAGE

CD54HC165F3A -55 to 125 16 Ld CERDIP

CD54HCT165F3A -55 to 125 16 Ld CERDIP

CD74HC165E -55 to 125 16 Ld PDIP

CD74HC165M -55 to 125 16 Ld SOIC

CD74HC165MT -55 to 125 16 Ld SOIC

CD54HC165M96 -55 to 125 16 Ld SOIC

CD74HCT165E -55 to 125 16 Ld PDIP

CD74HCT165M -55 to 125 16 Ld SOIC

CD74HCT165MT -55 to 125 16 Ld SOIC

CD54HCT165M96 -55 to 125 16 Ld SOIC

NOTE: When ordering, use the entire part number. The sufﬁx 96

denotes tape and reel. The sufﬁx T denotes a small-quantity reel of

250.

February 1998 - Revised October 2003

CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.

CD54HC165, CD74HC165,

CD54HCT165, CD74HCT165

High-Speed CMOS Logic

8-Bit Parallel-In/Serial-Out Shift Register

[
