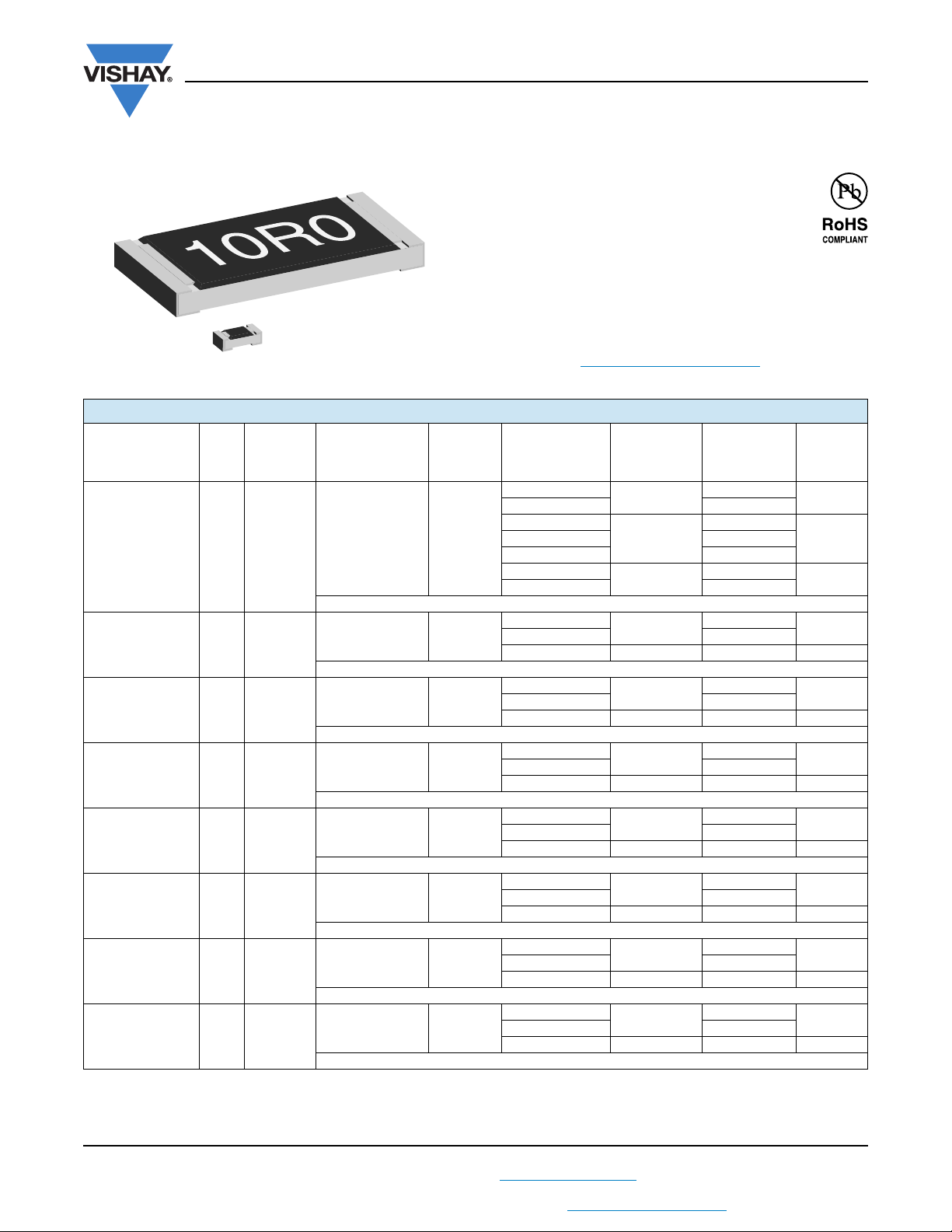

CRCW...BC e3
www.vishay.com
Vishay BCcomponents
Revision: 15-Apr-13
1
Document Number: 28743
For technical questions, contact: f3aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Lead (Pb)-free Thick Film, Rectangular Commodity Chip Resistors
FEATURES
• High volume product suitable for commercial
applications
• Excellent stability (R/R 1 % for 1000 h at
70 °C)
• Lead (Pb)-free solder contacts on Ni barrier layer
• Metal glaze on high quality ceramic
• Protective overglaze
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
Notes
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
• Power rating depends on the maximum temperature at the solder point, the component placement density and the substrate material
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
CASE
SIZE
INCH
CASE
SIZE
METRIC
POWER RATING
P
70 °C
W
LIMITING
ELEMENT
VOLTAGE
MAX. V
TEMPERATURE
COEFFICIENT
ppm/K
TOLERANCE
%
RESISTANCE
RANGE
E-SERIES
CRCW0201...BC 0201 RR 0603M
0.05 30
± 200
± 0.5
10R to 10M
E96
- 200/+ 400 1R0 to 9R76
± 100
± 1
47R to 1M
E24; E96± 200 10R to 10M
- 200/+ 400 1R0 to 9R76
± 200
± 5
10R to 10M
E24
- 200/+ 400 1R0 to 9R1
Zero-Ohm-Resistor: R
max.
= 50 m, I
max.
at 70 °C = 1.0 A
CRCW0402...BC 0402 RR 1005M
0.063 50
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 1.5 A
CRCW0603...BC 0603 RR 1608M
0.10 75
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 2.0 A
CRCW0805...BC 0805 RR 2012M
0.125 150
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 2.5 A
CRCW1206...BC 1206 RR 3216M
0.25 200
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 3.5 A
CRCW1210...BC 1210 RR 3225M
0.50 200
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 4.0 A
CRCW2010...BC 2010 RR 5025M
0.75 400
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 5.0 A
CRCW2512...BC 2512 RR 6332M
1.0 500
± 100
± 1
1R0 to 10M
E24; E96
± 200 1R0 to 9R76
± 200 ± 5 1R0 to 10M E24
Zero-Ohm-Resistor: R
max.
= 20 m, I
max.
at 70 °C = 7.0 A
