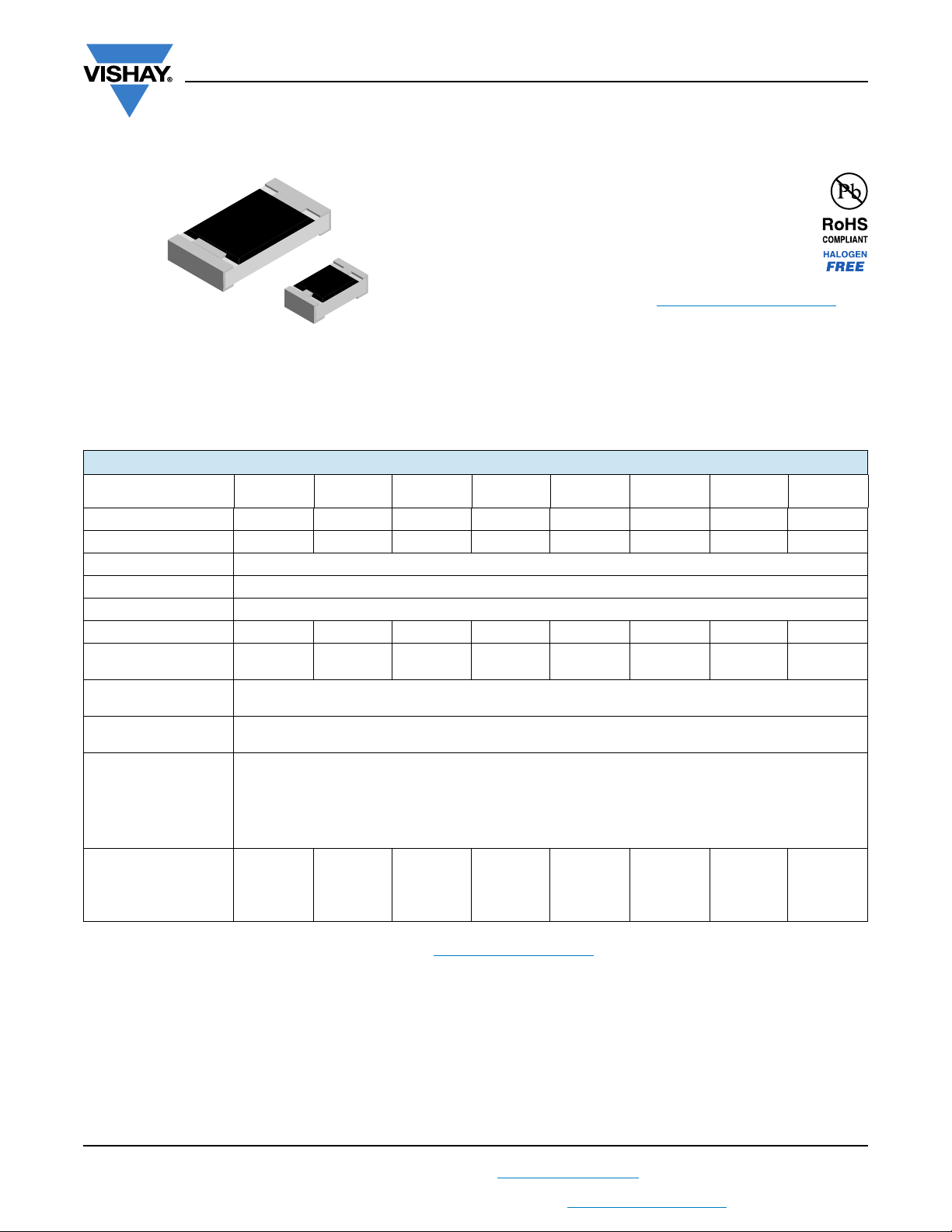

CRCW08056K20JNEAHP数据手册
Page:
of 10 Go
若手册格式错乱,请下载阅览PDF原文件
CRCW-HP e3
www.vishay.com
Vishay Draloric
Revision: 15-Feb-16
1
Document Number: 20043
For technical questions, contact: thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Pulse Proof, High Power Thick Film Chip Resistors
The pulse proof, high power thick film chip resistors series
is the perfect choice for most fields of power measurement
electronics where reliability, stability, high power rating and
excellent pulse load performance are of major concern.
Typical applications include battery management systems
in automotive appliances.
FEATURES
Excellent pulse load capability
Enhanced power rating
Double side printed resistor element
AEC-Q200 qualified
Material categorization: for definitions of
compliance please see www.vishay.com/doc?99912
APPLICATIONS
Automotive
Industrial
Notes
Marking: See document “Surface Mount Resistor Marking” (www.vishay.com/doc?20020
).
(1)
Please refer to APPLICATION INFORMATION below.
(2)
CRCW0402-HP resistors feature a single side printed resistive layer only.
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
TECHNICAL SPECIFICATIONS
DESCRIPTION
CRCW0402-
HP e3
CRCW0603-
HP e3
CRCW0805-
HP e3
CRCW1206-
HP e3
CRCW1210-
HP e3
CRCW1218-
HP e3
CRCW2010-
HP e3
CRCW2512-
HP e3
Imperial size 0402 0603 0805 1206 1210 1218 2010 2512
Metric size code RR1005M RR1608M RR2012M
RR3216M RR3225M RR3246M RR5025M RR6332M
Resistance range 1 to 1 M jumper (0)
Resistance tolerance ± 5 %; ± 1 %; ± 0.5 %
Temperature coefficient ± 200 ppm/K; ± 100 ppm/K
Rated dissipation, P
70
(1)
0.2 W
(2)
0.25 W 0.5 W 0.5 W 0.75 W 1.5 W 1.0 W 1.5 W
Operating voltage,
U
max.
AC
RMS
/DC
50 V 75 V 150 V 200 V 200 V 200 V 400 V 500 V
Permissible film
temperature,
F max.
(1)
155 °C
Operating temperature
range
-55 °C to +155 °C
Max. resistance change
at P
70
for resistance
range, |R/R| after:
1000 h 2.0 %
8000 h 4.0 %
Permissible voltage
against ambient
(insulation):
1 min, U
ins
75 V 100 V 200 V 300 V 300 V 300 V 300 V 300 V
