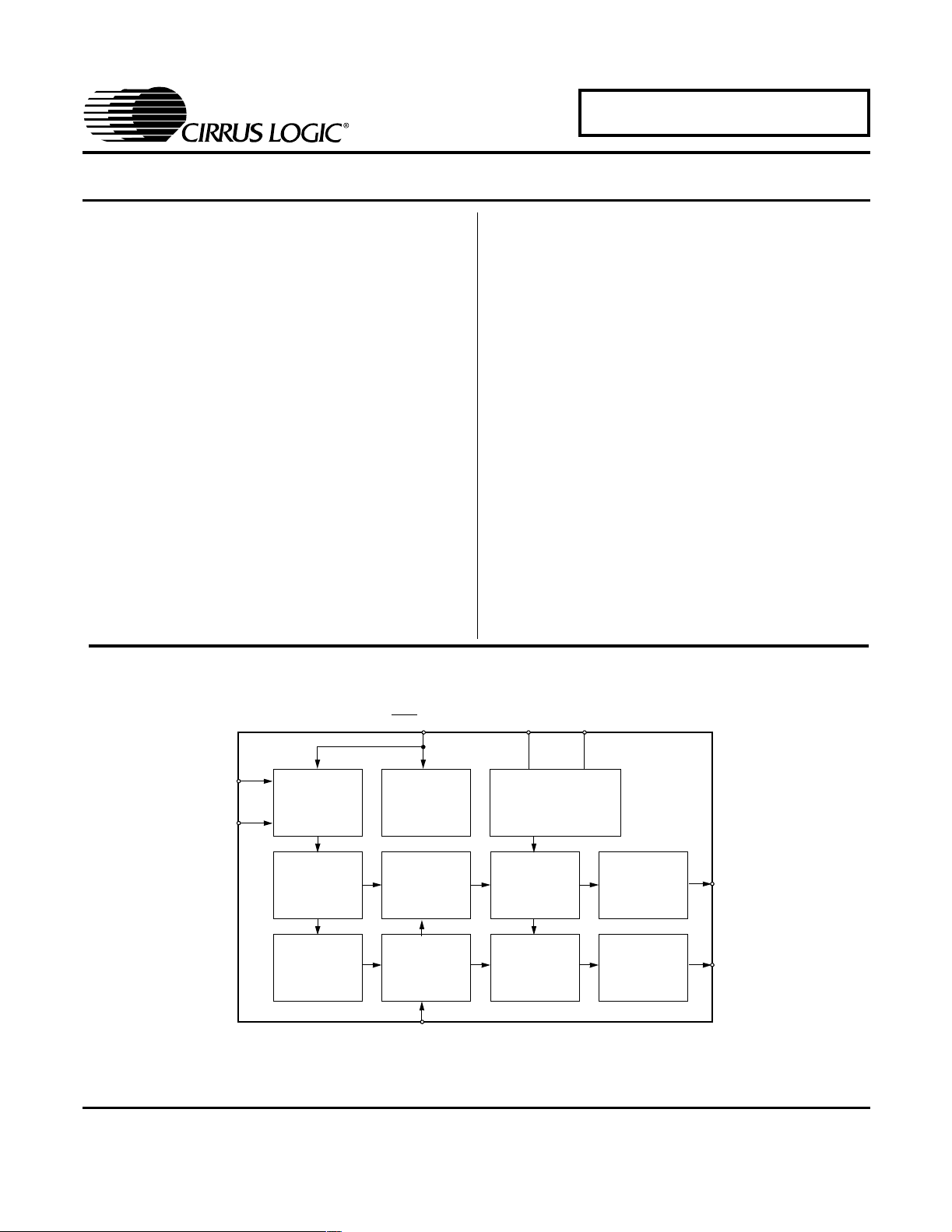

1
Copyright Cirrus Logic, Inc. 2002
(All Rights Reserved)
Cirrus Logic, Inc.
http://www.cirrus.com
CS4334/5/8/9
8-Pin, 24-Bit, 96 kHz Stereo D/A Converter
Features
! Complete Stereo DAC System: Interpolation,
D/A, Output Analog Filtering
! 24-Bit Conversion
! 96 dB Dynamic Range
! -88 dB THD+N
! Low Clock Jitter Sensitivity
! Single +5 V Power Supply
! Filtered Line Level Outputs
! On-Chip Digital De-emphasis
! Popguard
™
Technology
! Functionally Compatible with CS4330/31/33
Description
The CS4334 family members are complete, stereo
digital-to-analog output systems including interpolation,
1-bit D/A conversion and output analog filtering in an
8-pin package. The CS4334/5/8/9 support all major
audio data interface formats, and the individual devices
differ only in the supported interface format.
The CS4334 family is based on delta-sigma modulation,
where the modulator output controls the reference volt-
age input to an ultra-linear analog low-pass filter. This
architecture allows for infinite adjustment of sample rate
between 2 kHz and 100 kHz simply by changing the
master clock frequency.
The CS4334 family contains on-chip digital de-empha-
sis, operates from a single +5V power supply, and
requires minimal support circuitry. These features are
ideal for set-top boxes, DVD players, SVCD players, and
A/V receivers.
ORDERING INFORMATION
Seepage24
I
LRCK
3
SDATA
1
DEM/SCLK
2
MCLK
4
VA
AOUTL
8
AOUTR
5
Serial Input
Interface
Interpolator
Interpolator
De-emphasis
Modulator
∆Σ
Modulator
DAC
DAC
Voltage Reference
Analog
Low-Pass
Filter
Analog
Low-Pass
Filter
7
AGND
6
∆Σ
JAN ‘03
DS248F2
