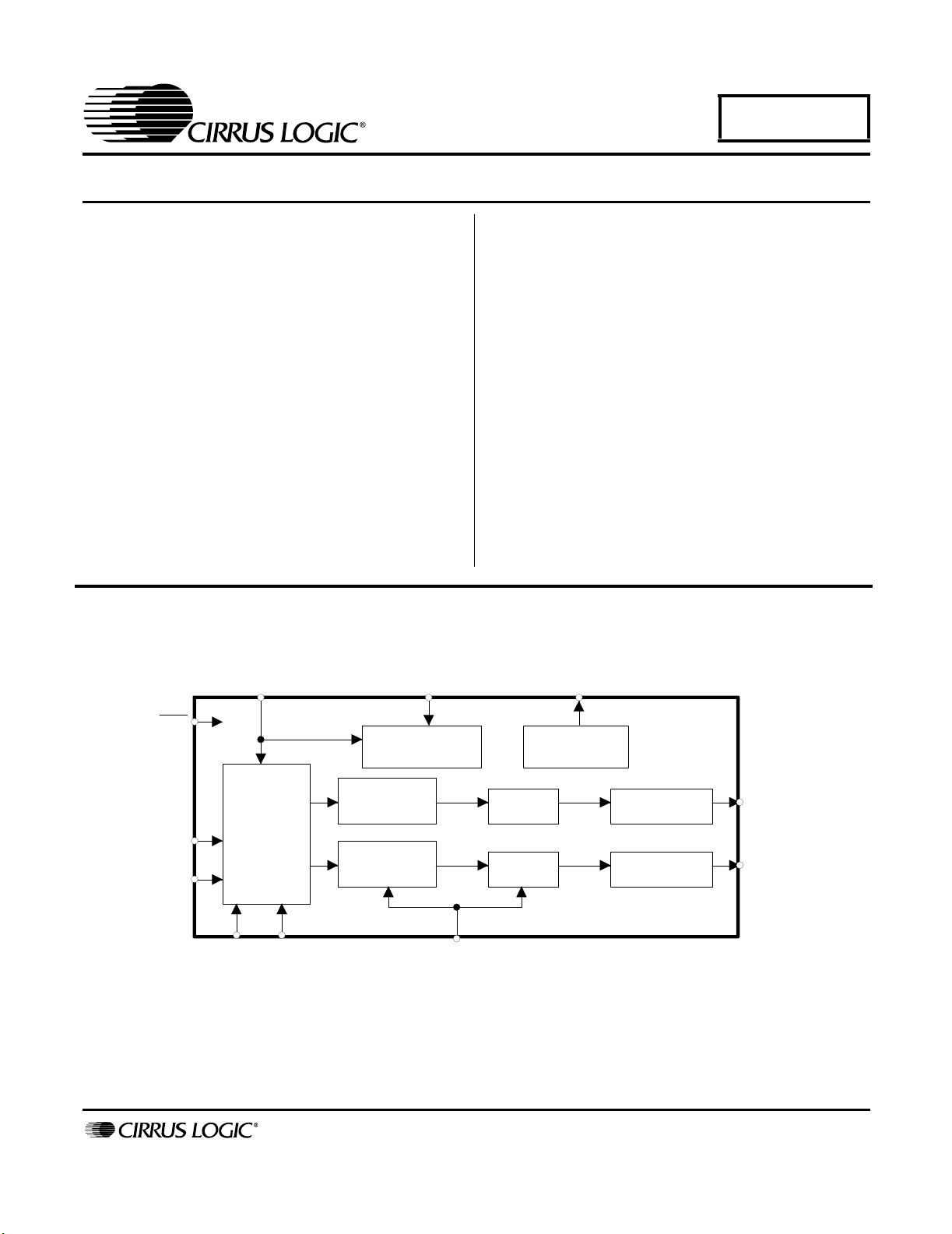

CS4340
24-Bit, 96 kHz Stereo D/A Converter for Audio
Features
! 101 dB Dynamic Range
! -91 dB THD+N
! +3.0 V or +5.0 V Power Supply
! Low Clock Jitter Sensitivity
! Filtered Line-level Outputs
! On-chip Digital De-emphasis for 32, 44.1 and
48 kHz
! 33 mW with 3V Supply
! Popguard
®
Technology for Control of Clicks
and Pops
! Lead-free Packaging Available
Description
The CS4340 is a complete stereo digital-to-analog system
including digital interpolation, fourth-order delta-sigma dig-
ital-to-analog conversion, digital de-emphasis and
switched capacitor analog filtering. The advantages of this
architecture include: ideal differential linearity, no distor-
tion mechanisms due to resistor matching errors, no
linearity drift over time and temperature and a high toler-
ance to clock jitter.
The CS4340 accepts data at audio sample rates from
4 kHz to 100 kHz, consumes very little power, and oper-
ates over a wide power supply range. The features of the
CS4340 are ideal for DVD players, CD players, set-top box
and automotive systems.
ORDERING INFORMATION
CS4340-DSZ 16-pin SOIC, Lead Free, -40 to 85 °C
CS4340-KS 16-pin SOIC -10 to 70 °C
CS4340-KSZ 16-pin SOIC, Lead Free, -10 to 70 °C
CS4340-CZZ 16-pin TSSOP, Lead Free, -10 to 70 °C
CDB4340 Evaluation Board
I
∆Σ
DAC
Analog Filter
Serial
Input
Interface
Interpolation
Filter
Analog Filter
MUTEC
AOUTL
AOUTR
RST
LRCK
SDATA
MCLK
∆Σ
External
Mute Control
SCLK/DEM1
DAC
Interpolation
Filter
De-emphasis
DEM0
DIF0
DIF1
JULY '05
DS297F3
