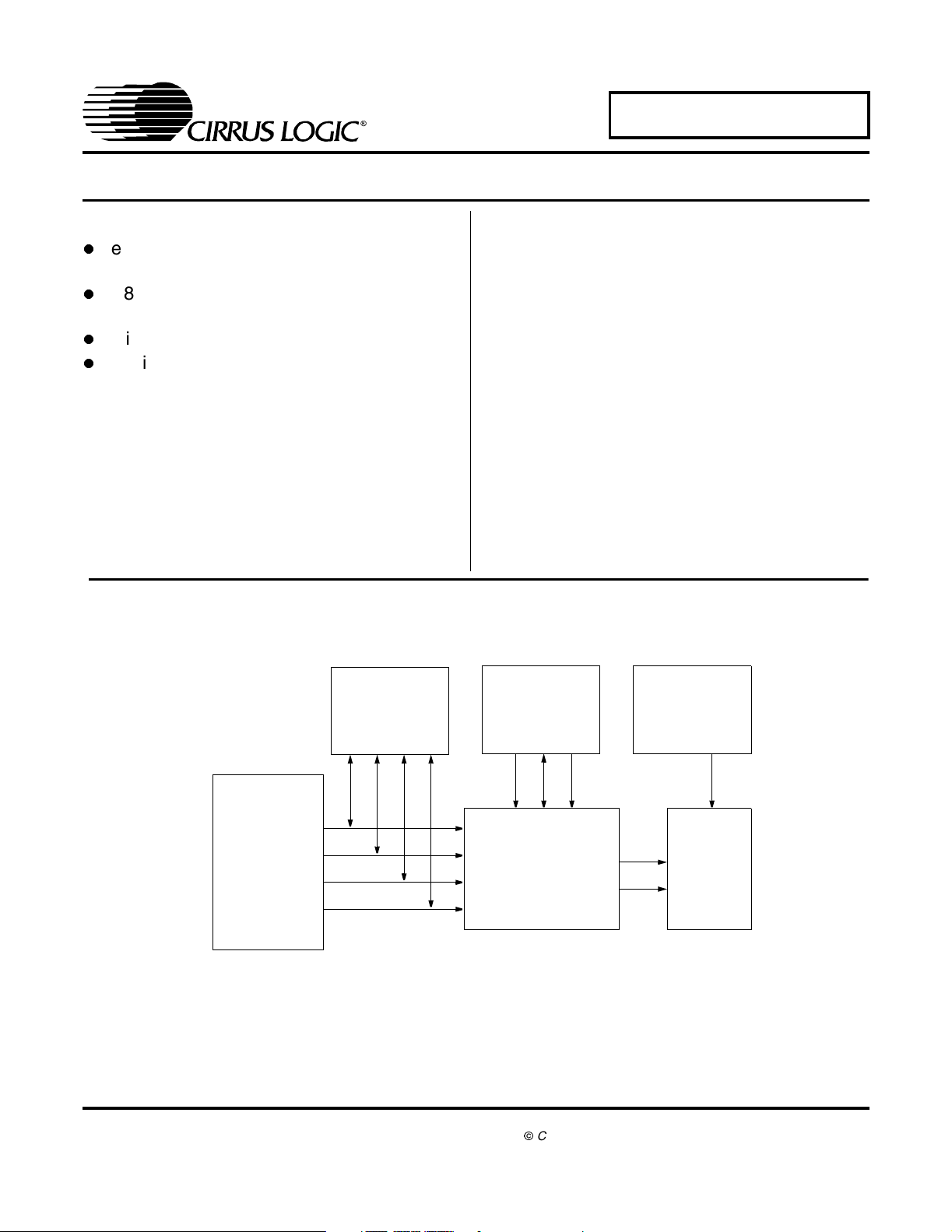

CDB4340A/41A
Evaluation Board for CS4340A and CS4341A
Features
Demonstrates recommended layout and
grounding arrangements
CS8414 Receives AES/EBU, S/PDIF, &
EIAJ-340 Compatible Digital Audio
Digital and Analog Patch Areas
Requires only a digital signal source and
power supplies for a complete Digital-to-
Analog-Converter system
Description
The CDB4340A/41A evaluation board is an excellent
means for quickly evaluating the CS4340A/41A family of
24-bit, stereo D/A converters. Evaluation requires an an-
alog signal analyzer, a digital signal source, a PC for
controlling the CS4341A and a power supply. Analog
outputs are provided via RCA phono jacks for both
channels.
The CS8414 digital audio receiver I.C. provides the sys-
tem timing necessary to operate the Digital-to-Analog
converters and will accept AES/EBU, S/PDIF, and EIAJ-
340 compatible audio data. The evaluation board may
also be configured to accept external timing signals for
operation in a user application during system
development.
ORDERING INFORMATION
CDB4340A, CDB4341A Evaluation Board
Analog
CS4340A/41A
CS8414
Digital
Audio
Interface
I/O for
Clocks
and Data
Filter
Control
Port
Mute
Circuit
JUN ‘02
DS590DB1
