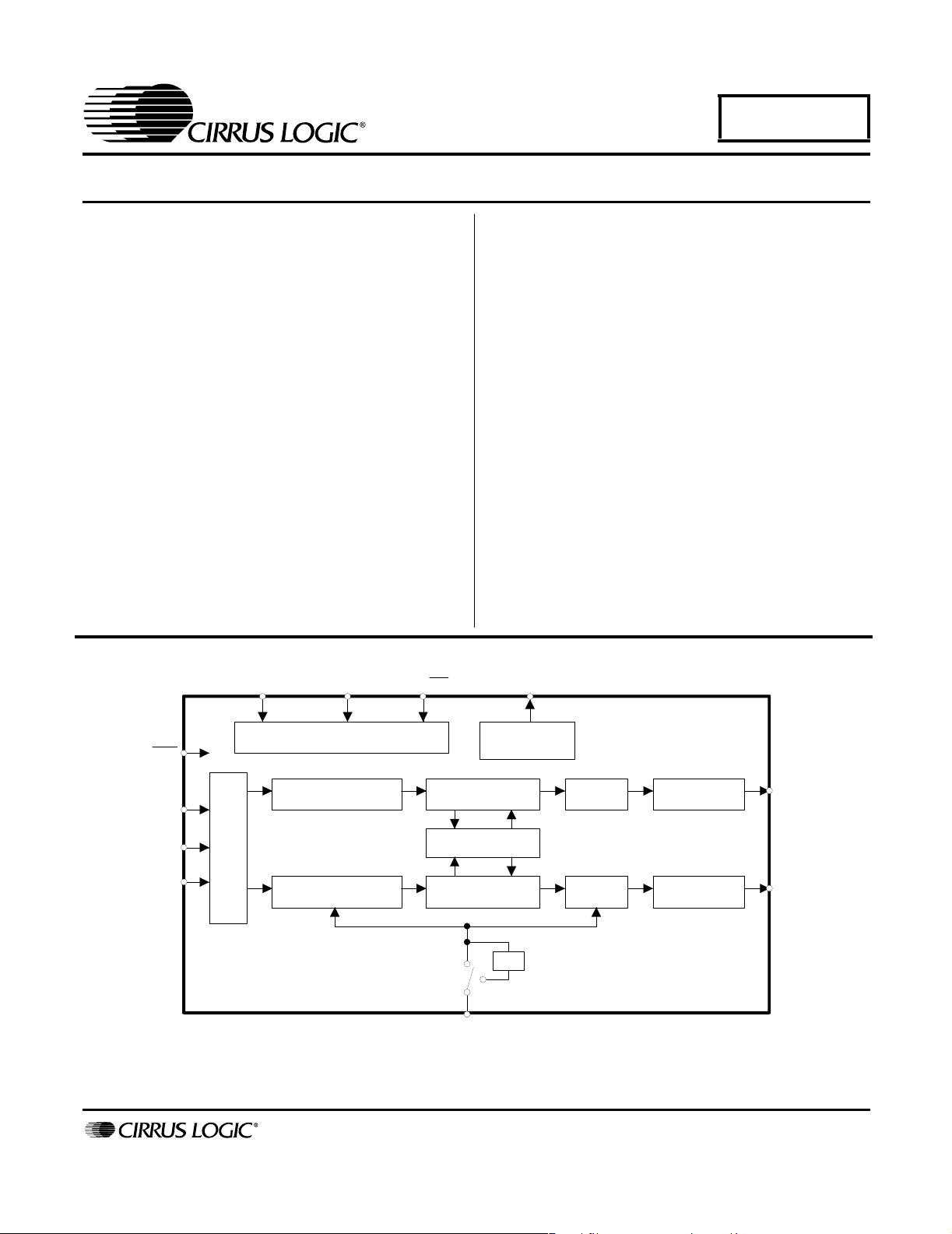

CS4341
24-Bit, 96 kHz Stereo DAC with Volume Control
Features
z 101 dB Dynamic Range
z -91 dB THD+N
z +3.0 V or +5.0 V power supply
z Low clock jitter sensitivity
z Filtered line level outputs
z On-chip digital de-emphasis for 32, 44.1 and
48 kHz
z ATAPI Mixing
z Digital Volume Control with Soft Ramp
– 94 dB Attenuation
– 1 dB Step Size
– Zero Crossing Click-Free Transitions
z Popguard
®
technology for control of clicks and
pops
z 33 mW with 3.0 V supply
Description
The CS4341 is a complete stereo digital-to-analog system
including digital interpolation, fourth-order Delta-Sigma
digital-to-analog conversion, digital de-emphasis and
switched capacitor analog filtering. The advantages of this
architecture include: ideal differential linearity, no distor-
tion mechanisms due to resistor matching errors, no
linearity drift over time and temperature and a high toler-
ance to clock jitter.
The CS4341 accepts data at audio sample rates from
4 kHz to 100 kHz, consumes very little power, and oper-
ates over a wide power supply range. The features of the
CS4341 are ideal for DVD players, CD players, set-top box
and automotive systems.
ORDERING INFORMATION
CS4341-KS 16-pin SOIC, -10 to 70 °C
CS4341-DS 16-pin SOIC, -40 to 85 °C
CS4341-CZ 16-pin TSSOP, -10 to 70 °C
CS4341-CZZ, Lead Free 16-pin TSSOP, -10 to 70 °C
CDB4341 Evaluation Board
I
Volume ControlInterpolation Filter
∆Σ
DAC
Analog Filter
Control Port
Volume ControlInterpolation Filter Analog Filter
Serial Port
SCL/CCLK MUTECAD0/CS
AOUTA
AOUTB
RST
LRCK
SDATA
MCLK
SDA/CDIN
∆Σ
DAC
External
Mute Control
SCLK
Mixer
÷2
JUL ‘04
DS298F3
