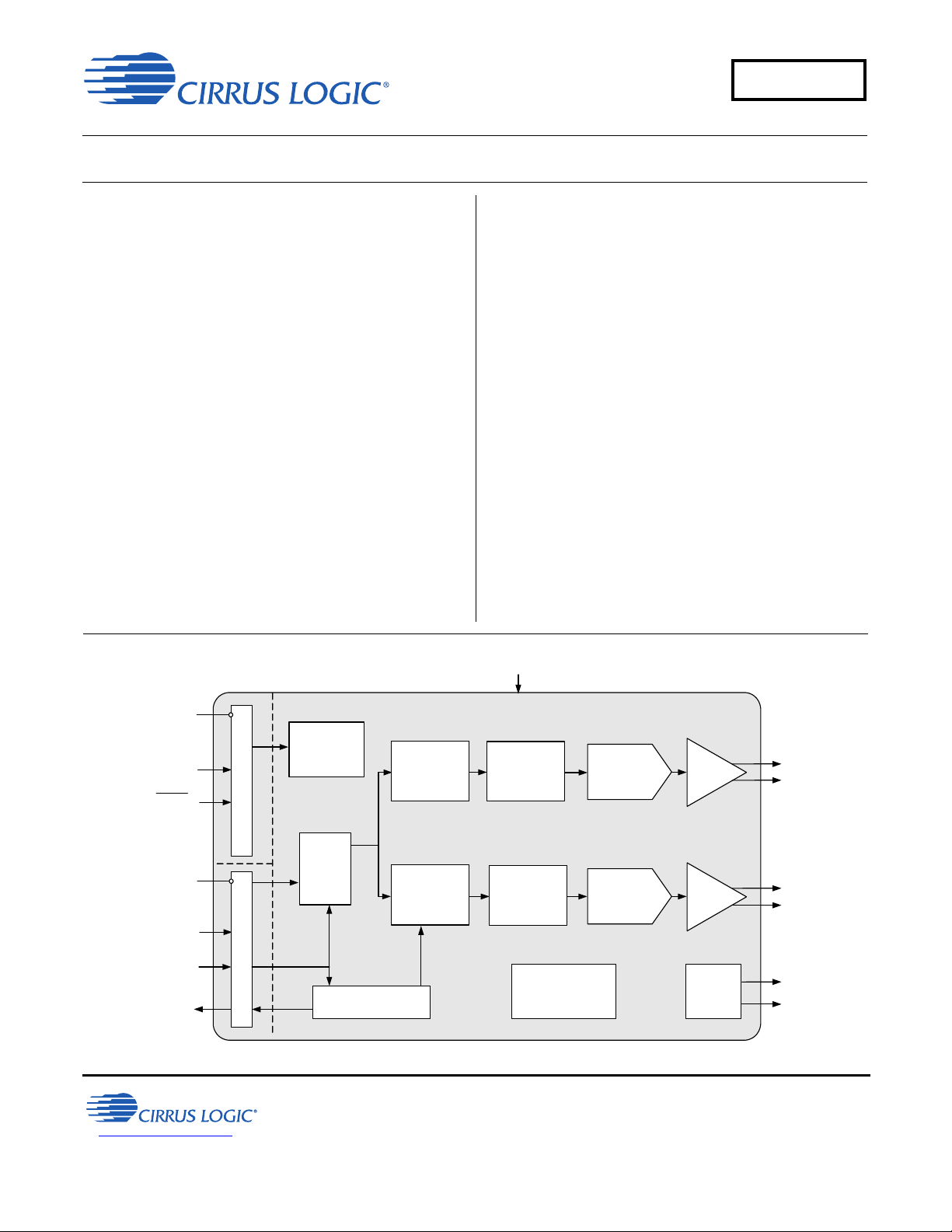

192-kHz Stereo DAC with Integrated PLL
Features
Advanced multibit delta-sigma architecture
109-dB dynamic range
-91-dB THD+N
24-bit conversion
Supports audio sample rates up to 192 kHz
Low-latency digital filtering
Single-ended or differential analog output
architecture
Integrated PLL locks to incoming left-right
clock
– Eliminates the need for external master-
clock routing
– Reduces interference and jitter sensitivity
– No external loop filter components required
Automatic sample-rate range detection
Popguard
®
technology for control of clicks and
pops
Hardware popguard disable for fast startups
Supports all standard serial audio formats
including time-division multiplexed (TDM)
+1.5- to 5.0-V logic supplies for serial port
+3.3- to 5.0-V control port interface
Control Port Mode Features
SPI™ and I²C Modes
ATAPI mixing
Mute control for individual channels
Digital volume control with soft ramp
– 127.5-dB attenuation
– 0.5-dB step size
– Zero-crossing click-free transitions
PCM
Serial
Interface
Serial Audio Input
Right
Channel
Output
Left
Channel
Output
Reset
3.3 V to 5.0 V
Register/
Hardware
Configuration
Hardware or I
2
C/
SPI Control Data
3.3 V to 5.0 V
LRCK
RMCK
RMCK
Recovered MCLK
1.5 V to 5.0 V
Internal Voltage
Reference
and Regulation
Phase Locked Loop
Interpolation
Filter with
Volume
Control
Interpolation
Filter with
Volume
Control
Multibit
Modulator
Multibit
Modulator
Level Translator Level Translator
Amp
+
Filter
Amp
+
Filter
Left and
Right Mute
Controls
External
Mute
Control
DAC
DAC
FEB ‘17
DS691F4
CS4350
