Copyright © Cirrus Logic, Inc. 2004
(All Rights Reserved)
http://www.cirrus.com

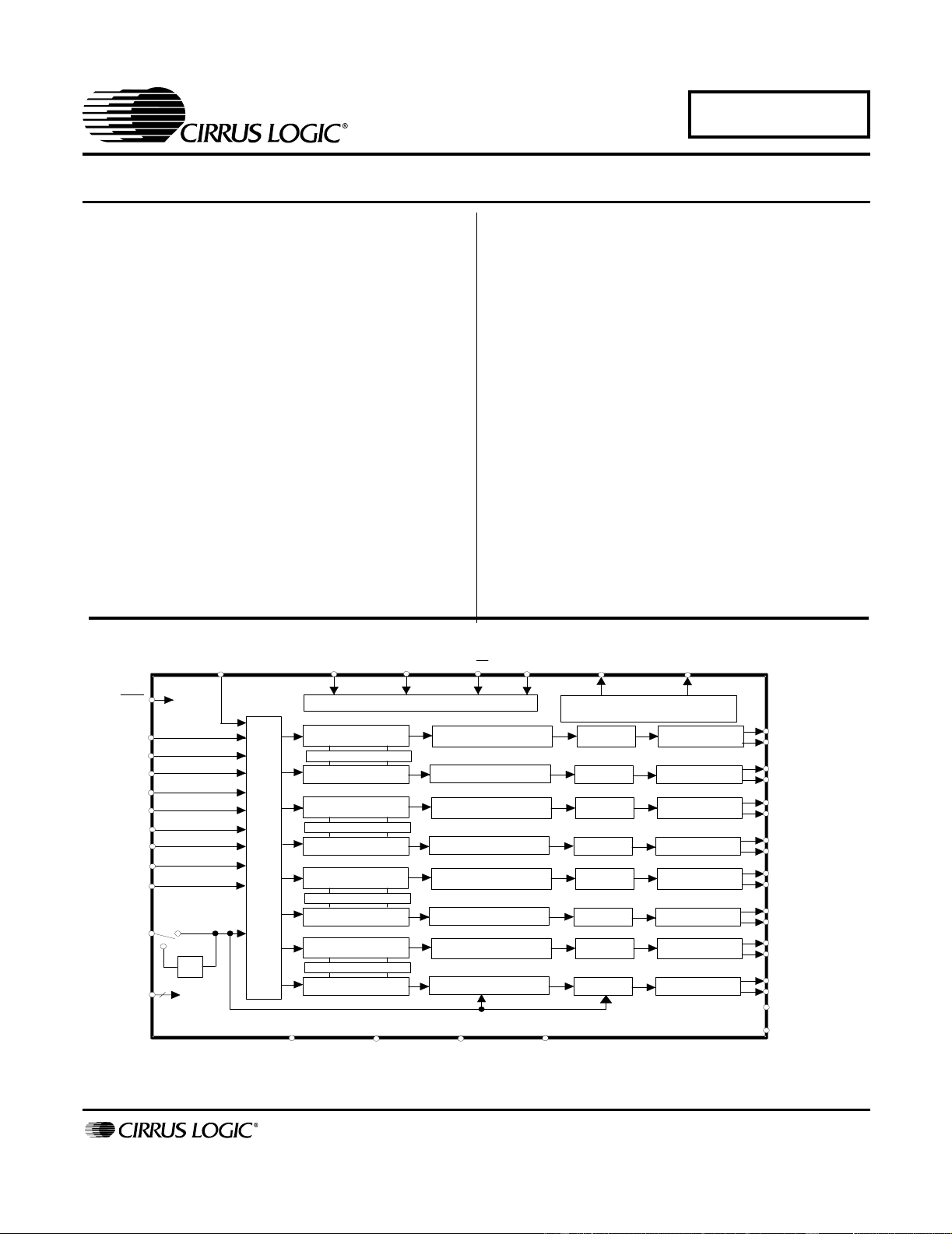

CS4382
114 dB, 192 kHz 8-Channel D/A Converter
Features
z 24-bit Conversion
z Up to 192 kHz Sample Rates
z 114 dB Dynamic Range
z -100 dB THD+N
z Supports PCM and DSD Data Formats
z Selectable Digital Filters
z Volume Control with Soft Ramp
– 1 dB Step Size
– Zero Crossing Click-free Transitions
z Dedicated DSD inputs
z Low Clock Jitter Sensitivity
z Simultaneous Support for Two Synchronous
Sample Rates for DVD Audio
z µC or Stand-alone Operation
Description
The CS4382 is a complete 8-channel digital-to-analog
system including digital interpolation, fifth-order delta-
sigma digital-to-analog conversion, digital de-emphasis,
volume control and analog filtering. The advantages of
this architecture include: ideal differential linearity, no
distortion mechanisms due to resistor matching errors,
no linearity drift over time and temperature and a high
tolerance to clock jitter.
The CS4382 accepts PCM data at sample rates from
4 kHz to 192 kHz, DSD audio data, and operates over a
wide power supply range. These features are ideal for
multi-channel audio systems including DVD players,
SACD players, A/V receivers, digital TV’s, mixing con-
soles, effects processors, and automotive audio
systems.
ORDERING INFORMATION
CS4382-KQZ, Lead Free -10 to 70 °C 48-pin LQFP
CDB4382 Evaluation Board
I
External
Mute Control
RST
Volume Control
Interpolation Filter Analog Filter
∆Σ
DAC
Mixer
Volume Control
∆Σ
DAC
Analog Filter
Interpolation Filter
Volume Control
Interpolation Filter Analog Filter
∆Σ
DAC
Mixer
Volume Control
∆Σ
DAC
Analog Filter
Interpolation Filter
Volume Control
Interpolation Filter Analog Filter
∆Σ
DAC
Mixer
Volume Control
∆Σ
DAC
Analog Filter
AOUTB4-
Interpolation Filter
MCLK
Serial Port
SCL/CCLK(M1)
SDA/CDIN(M2) AD0/CS(M0)
VLC
÷
2
VQ
FILT+
VA
GNDVD
MUTEC1
DSD_SCLK(M3)
GND
Control Port(Stand-Alone Mode Select)
VLS
LR
CK
SD IN1
SD IN2
SD IN3
2
SCLK
LRCK2
SCLK
DSDxx
8
AOUT
B4+
AOUTA4-
AOUTA4+
AOUTB2-
AOUTB2+
AOUTA2-
AOUTA2+
AOUTB1-
AOUTB1+
AOUTA1-
AOUTA1+
Volume Control
Interpolation Filter Analog Filter
∆Σ
DAC
Mixer
Volume Control
∆Σ
DAC
Analog Filter
Interpolation Filter
AOUTB3-
AOUTB3+
AOUTA3-
AOUTA3+
SD IN4
MUTEC234
1
1
NOV ‘04
DS514F1
