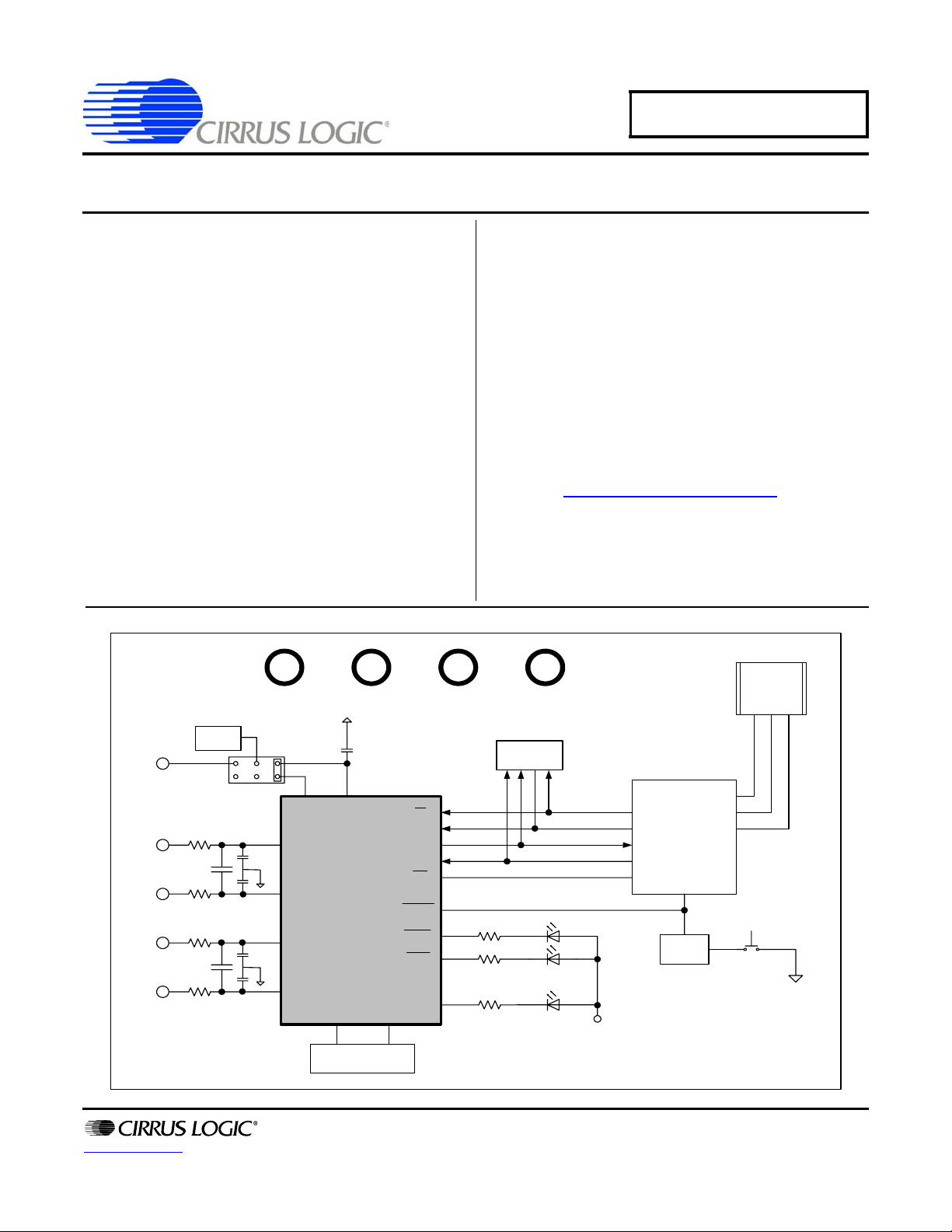

Copyright © Cirrus Logic, Inc. 2009
(All Rights Reserved)
www.cirrus.com
CDB5460AU
CDB5460AU Evaluation Board and Software
Features
Voltage and Current Interface
USB Communication with PC
On-board C8051F320 Microcontroller
On-board Voltage Reference
LabWindows
®
/CVI
®
GUI Software
– Register Setup & Chip Control
– FFT Analysis
– Time Domain Analysis
– Noise Histogram Analysis
"Auto-boot" Demo with Serial EEPROM
General Description
The CDB5460AU is an inexpensive tool designed to evaluate
the functionality and performance of the CS5460A. The evalu-
ation board includes an LT1019 voltage reference, a
C8051F320 microcontroller with a USB interface, and firm-
ware. The microcontroller controls the serial communication
between the evaluation board and the PC via the firmware, en-
abling quick and easy access to all of the CS5460A's registers
and functions.
The CDB5460AU includes software for data capture, time do-
main analysis, histogram analysis, and frequency domain
analysis.
Schematics in PADS™ PowerLogic™ format are available for
download at www.cirrus.com/IndustrialSoftware
.
ORDERING INFORMATION
CDB5460AU Evaluation Board
JAN ‘09
DS487DBU1
CS5460A
C8051F320
+2.5V
reference
USB
Reset
Circuirty
SERIAL
EERPOM
RESET
BUTTON
CS
SDI
SDO
SCLK
INT
RESET
EOUT
EDIR
MODE
VIN+
VIN-
IIN+
IIN-
REF
+5V GND
VD+_EXT
Vu+_EXT
IN OUT
VREF
4.096MHz
Crystal
E1
E2
MODE
