CS8190EDWF20 产品设计图 - ON Semiconductor（安森美）
制造商:
ON Semiconductor（安森美）
分类:
电机驱动器
封装:
SOIC-20
描述:
精密空芯塔克/ Speedo的驱动程序 Precision Air-Core Tach/Speedo Driver
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P1
焊盘布局在P1P2
标记信息在P1P2
导航目录
CS8190EDWF20数据手册
Page:
of 2 Go
若手册格式错乱，请下载阅览PDF原文件
© Semiconductor Components Industries, LLC, 2000

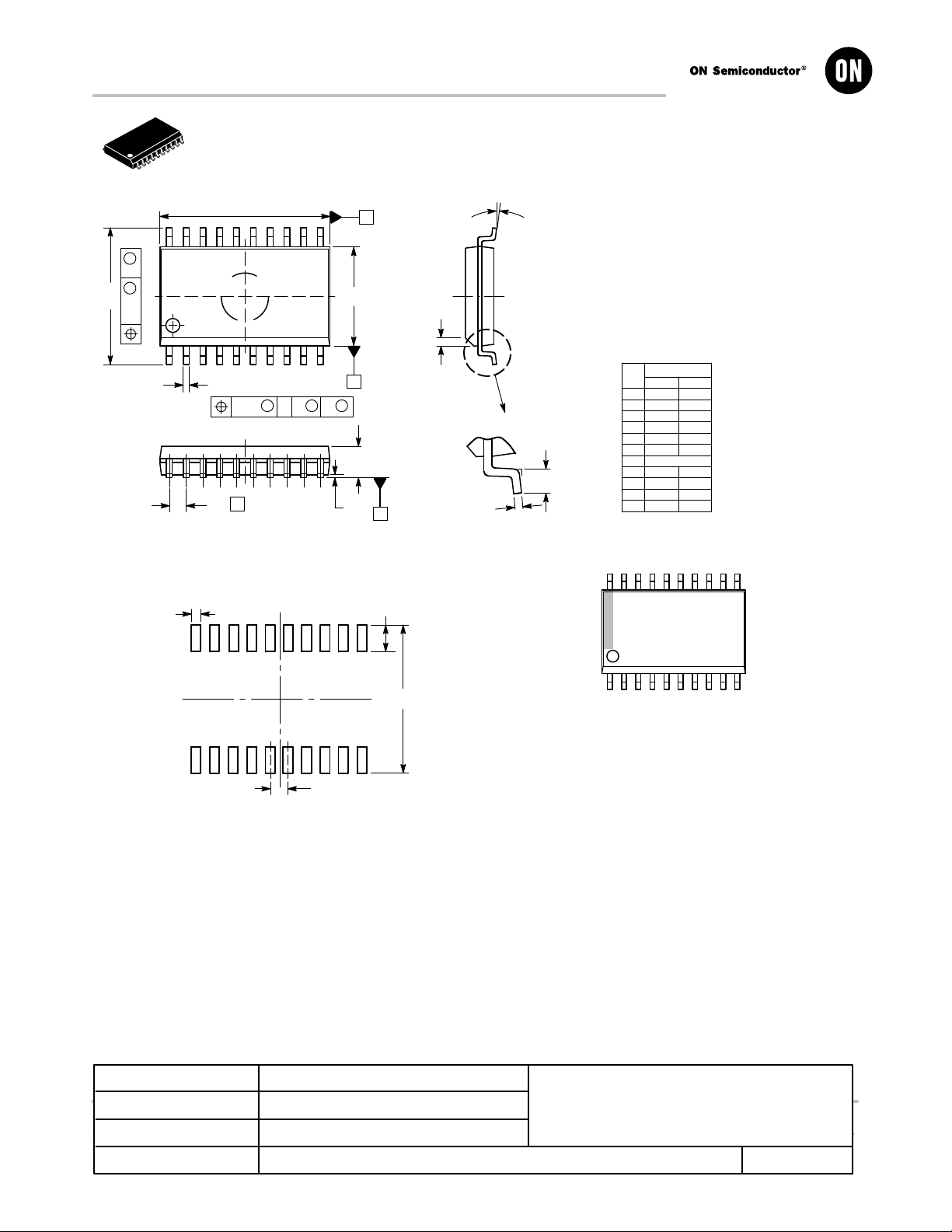

February, 2000 − Rev. 05F
1 Case Outline Number:
751D
SOIC−20 WB
CASE 751D−05
ISSUE H
DATE 22 APR 2015
SCALE 1:1
20
1
11
10
b20X
H
c
L
18X
A1
A
SEATING
PLANE
q
h X 45
_
E
D
M
0.25
M
B
M
0.25
S
A
S
B
T
e
T
B
A
DIM MIN MAX
MILLIMETERS
A 2.35 2.65
A1 0.10 0.25
b 0.35 0.49
c 0.23 0.32
D 12.65 12.95
E 7.40 7.60
e 1.27 BSC
H 10.05 10.55
h 0.25 0.75
L 0.50 0.90
q 0 7
NOTES:
1. DIMENSIONS ARE IN MILLIMETERS.
2. INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M, 1994.
3. DIMENSIONS D AND E DO NOT INCLUDE MOLD
PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 PER SIDE.
5. DIMENSION B DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE PROTRUSION
SHALL BE 0.13 TOTAL IN EXCESS OF B
DIMENSION AT MAXIMUM MATERIAL
CONDITION.
__
XXXXX = Specific Device Code
A = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G = Pb−Free Package
GENERIC
MARKING DIAGRAM*
20
1
XXXXXXXXXXX
XXXXXXXXXXX
AWLYYWWG
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
11.00
20X
0.52
20X
1.30
1.27
DIMENSIONS: MILLIMETERS
1
PITCH
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
SOLDERING FOOTPRINT*
RECOMMENDED
10
20 11
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
http://onsemi.com
1
© Semiconductor Components Industries, LLC, 2002
October, 2002 − Rev. 0
Case Outline Number:
XXX
DOCUMENT NUMBER:
STATUS:
NEW STANDARD:
DESCRIPTION:
98ASB42343B
ON SEMICONDUCTOR STANDARD
SOIC−20 WB
Electronic versions are uncontrolled except when
accessed directly from the Document Repository. Printed
versions are uncontrolled except when stamped
“CONTROLLED COPY” in red.
PAGE 1 OF 2
