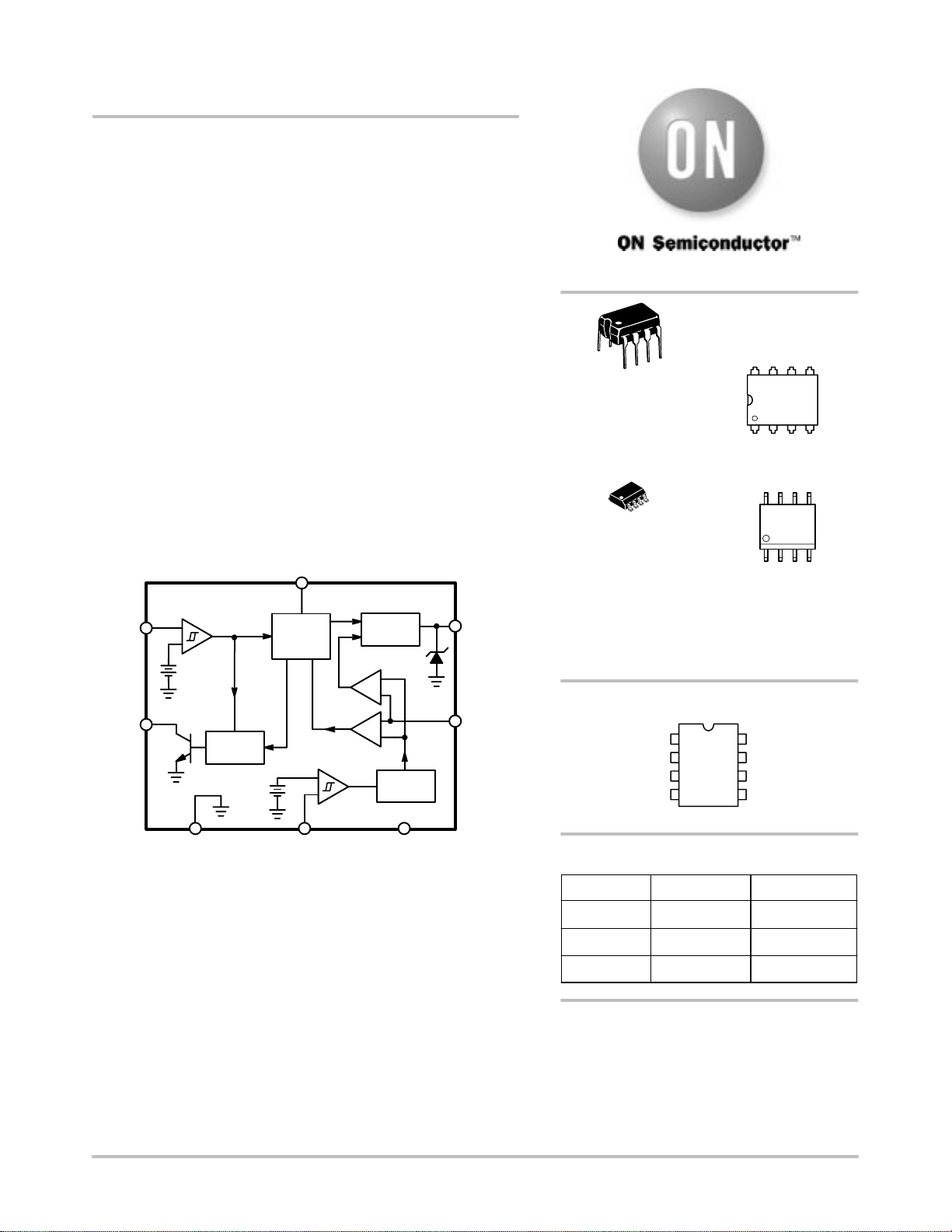

CS8312
IGBT Ignition Predriver with
Dynamic Current Regulation
The CS8312 is a bipolar microprocessor interface IC designed to
drive an IGBT (or logic level MOSFETs) powering large inductive
loads in harsh operating environments. The IC’s dynamic current
limit function lets the microprocessor adjust the current limit threshold
to the real time needs of the system.
CLI, the current limit input, sets the current limit for the IGBT high
or low as directed by the system microprocessor. CLI also raises and
lowers the threshold on the diagnostic FLAG output signal. The
FLAG output signals the microprocessor when the current level
approaches current limit on the IGBT. The CTRL input enables the
FLAG function.
Features
• µP Compatible Inputs
• Adjustable Current Limit Thresholds
• External Sense Resistor
• Flag Signal to Indicate Output Status
Figure 1. Block Diagram
CTRL
FLAG
OUT
SENSE+
V
CC
SENSE–CLIGND
Control
Logic
Latch
V
REF
Gate
Driver
V
T
V
T
5.0 V
http://onsemi.com
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
MARKING
DIAGRAMS
DIP–8
N SUFFIX
CASE 626
1
8
Device Package Shipping
ORDERING INFORMATION
CS8312YN8 DIP–8 50 Units/Rail
1
8
CS8312YN8
AWL
YYWW
OUTGND
CLISENSE–
CTRLSENSE+
V
CC
FLAG
1
PIN CONNECTIONS
SO–8
D SUFFIX
CASE 751
1
CS831
ALYW2
8
1
8
CS8312YD8 SO–8 95 Units/Rail
CS8312YDR8 SO–8
2500 Tape & Reel
