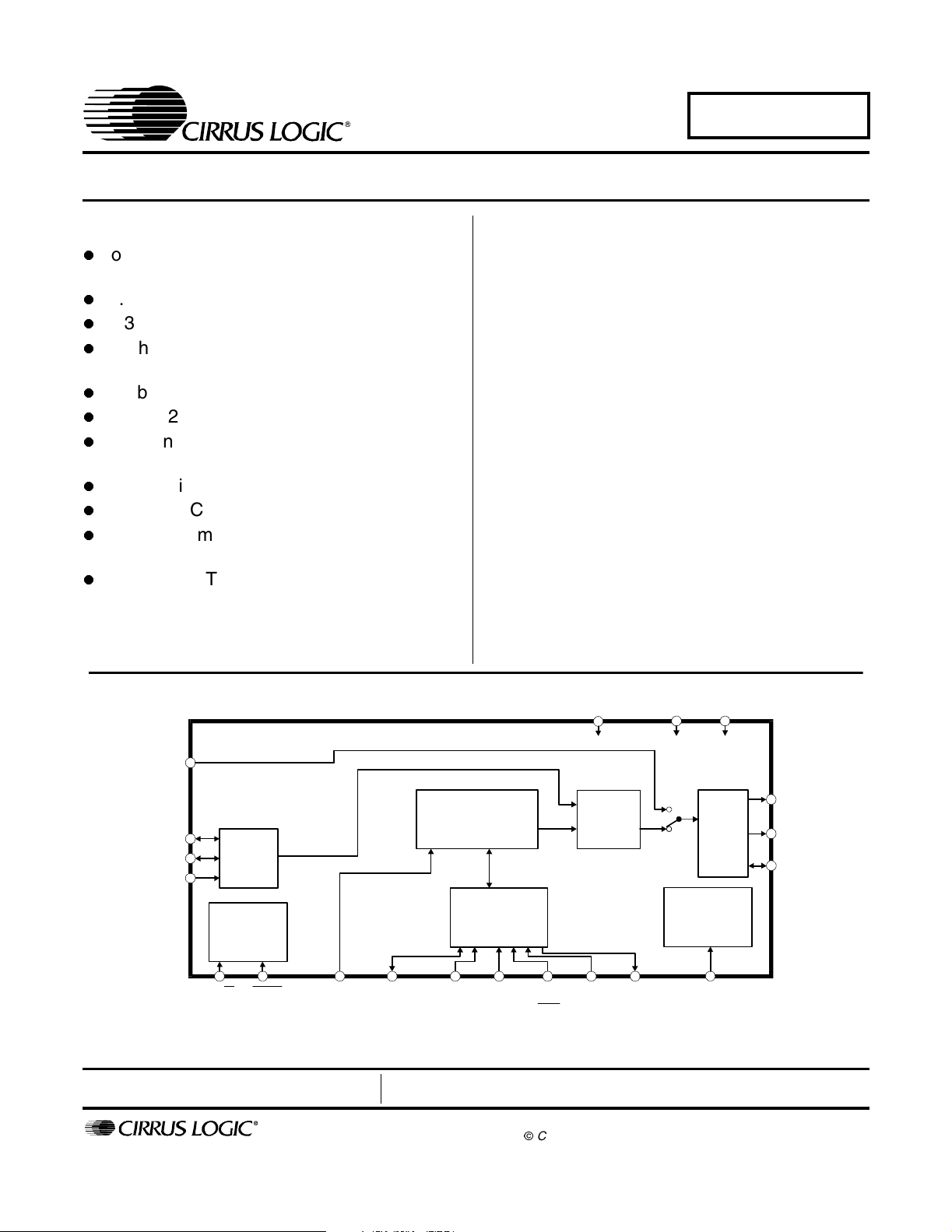

Advance Product Information
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
1
Copyright
Cirrus Logic, Inc. 2002
(All Rights Reserved)
http://www.cirrus.com
CS8406
192 kHz Digital Audio Interface Transmitter
Features
Complete EIAJ CP1201, IEC-60958, AES3,
S/PDIF compatible transmitter
+3.3 V Digital Supply (VD+)
+3.3 V to 5 V Digital Interface (VL+)
On-chip Channel Status and User bit buffer
memories allow block sized updates
Flexible 3-wire serial digital audio input port
Up to 192 kHz frame rate
Microcontroller write access to Channel
Status and User bit data
On-chip differential line driver
Generates CRC codes and parity bits
Standalone mode allows use without a
microcontroller
28-pin SOIC/TSSOP package
General Description
The CS8406 is a monolithic CMOS device which en-
codes and transmits audio data according to the AES3,
IEC60958, S/PDIF, or EIAJ CP1201. The CS8406 ac-
cepts audio and digital data, which is then multiplexed,
encoded and driven onto a cable.
The audio data is input through a configurable, 3-wire in-
put port. The channel status and user bit data are input
through an SPI or I
2
C microcontroller port, and may be
assembled in block sized buffers. For systems with no
microcontroller, a stand alone mode allows direct ac-
cess to channel status and user bit data pins.
Target applications include A/V Receivers, CD-R, DVD
receivers, digital mixing consoles, effects processors,
set-top boxes, and computer and automotive audio
systems.
ORDERING INFORMATION
CS8406-CS 28-pin SOIC -10 to +70°C
CS8406-CZ 28-pin TSSOP -10 to +70°C
CS8406-IS 28-pin SOIC -40 to +85°C
CS8406-IZ 28-pin TSSOP -40 to +85°C
I
Serial
Audio
Input
Misc.
Control
AES3
S/PDIF
Encoder
C&Ubit
Data
Buffer
Control
Port &
Registers
Output
Clock
Generator
RXP
ILRCK
ISCLK
SDIN
TXP
TXN
RST OMCKUSDA/
CDOUT
SCL/
CCLK
AD1/
CDIN
AD0/
CS
INT
VL DGND
Driver
AD2H/S
VD
TCBL
AUG ‘02
DS580PP1
