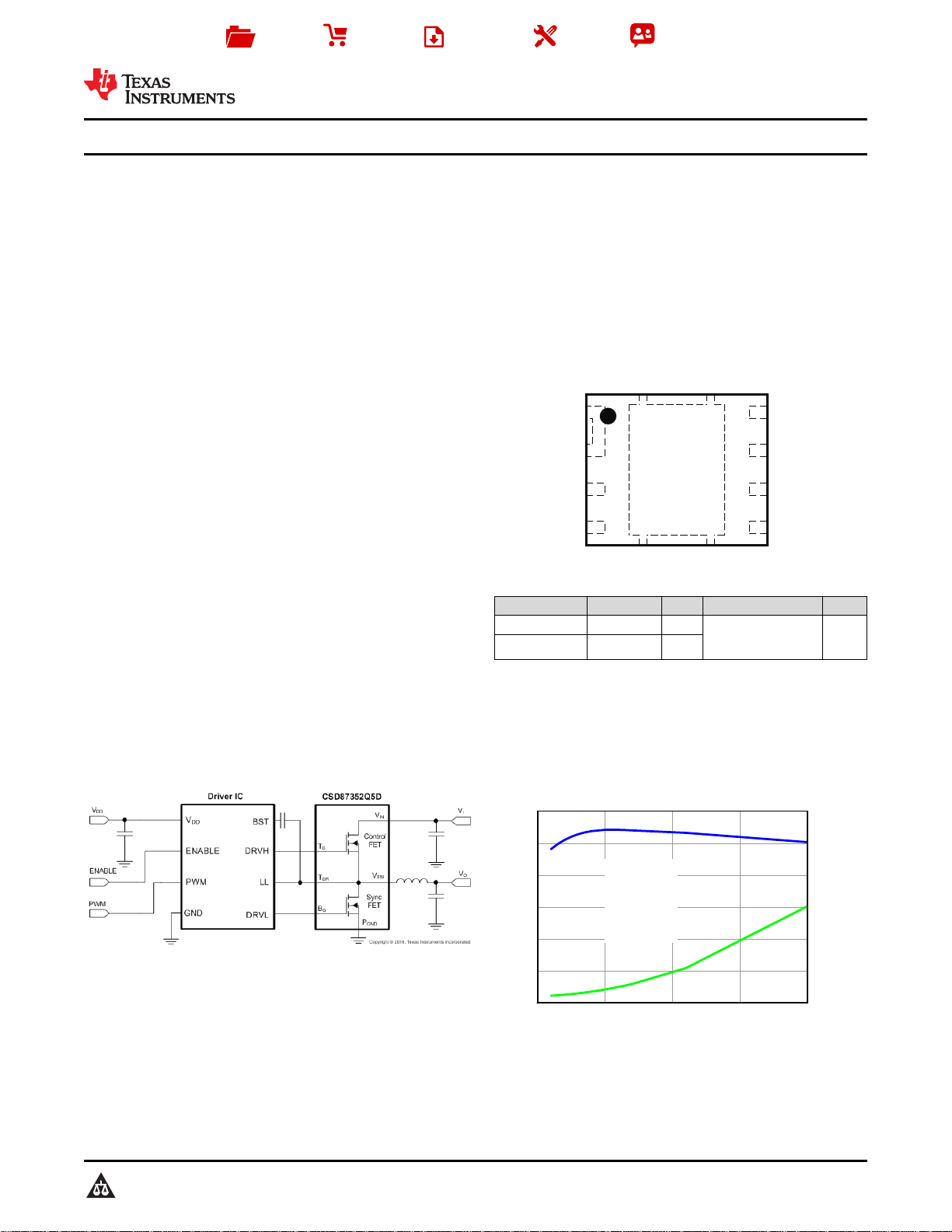

CSD87330Q3D
SLPS284D –AUGUST 2011–REVISED DECEMBER 2016
CSD87330Q3D Synchronous Buck NexFET™ Power Block
1
1 Features
1
• Half-Bridge Power Block
• Up to 27-V V
IN
• 90% System Efficiency at 15 A
• Up to 20-A Operation
• High-Frequency Operation (Up to 1.5 MHz)
• High-Density SON 3.3-mm × 3.3-mm Footprint
• Optimized for 5-V Gate Drive
• Low-Switching Losses
• Ultra-Low Inductance Package
• RoHS Compliant
• Halogen Free
• Lead-Free Terminal Plating
2 Applications
• Synchronous Buck Converters
– High-Frequency Applications
– High-Current, Low Duty Cycle Applications
• Multiphase Synchronous Buck Converters
• POL DC-DC Converters
• IMVP, VRM, and VRD Applications
3 Description
The CSD87330Q3D NexFET™ power block is an
optimized design for synchronous buck applications
offering high-current, high-efficiency, and high-
frequency capability in a small 3.3-mm × 3.3-mm
outline. Optimized for 5-V gate drive applications, this
product offers a flexible solution capable of offering a
high-density power supply when paired with any 5-V
gate drive from an external controller/driver.
.
Top View
Device Information
(1)
DEVICE MEDIA QTY PACKAGE SHIP
CSD87330Q3D 13-Inch Reel 2500 SON
3.30-mm × 3.30-mm
Plastic Package
Tape
and
Reel
CSD87330Q3DT 7-Inch Reel 250
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
.
Typical Circuit Typical Power Block Efficiency
and Power Loss
