Solid State Sensors CS Series
Linear Current Sensors
HoneywellSensingandControl11-800-537-6945USA1F1-815-235-6847International11-800-737-3360Canada59
SIDE MOUNT WITH 9SS SENSOR, SOURCE OUTPUT
Sensed
Sensitivity
Mtg. Supply Supply Current Offset
mV&N*
Offset Response
Catalog Dim. Volt. Current (Amps Volt.
At 12 VDC
Shift Time
Listing Fig. (Volts DC) (mA Max.) Peak) (Volts±10%) Nominal ± TOL (%/°C) (µ Sec.)
CSLA1GD 2a 8 to 16 19 57 Vcc/2 49.6 5.8 ±.05 3
CSLA1GE 2a 8 to 16 19 75 Vcc/2 39.4 4.4 ±.05 3
CSLA1GF 2a 8 to 16 19 100 Vcc/2 29.7 2.7 ±.05 3
SIDE MOUNT WITH SS9 SENSOR, SINK/SOURCE OUTPUT
Sensed
Sensitivity
Mtg. Supply Supply Current Offset
mV&N*
Offset Response
Catalog Dim. Volt. Current (Amps Volt.
At 8 VDC
Shift Time
Listing Fig. (Volts DC) (mA Max.) Peak) (Volts±2%) Nominal ± TOL (%/°C) (µ Sec.)
CSLA2GD 2a 6 to 12 20 72 Vcc/2 32.7 3.0 ±.02 8
CSLA2GE 2a 6 to 12 20 92 Vcc/2 26.1 2.1 ±.02 8
CSLA2GF 2a 6 to 12 20 125 Vcc/2 19.6 1.3 ±.02 8
CSLA2GG 2a 6 to 12 20 150 Vcc/2 12.7 0.6 ±.02 8
NOTE: When monitoring purely AC current with zero DC component, a capacitor can be inserted in series with the output of the current sensor. The capacitor will block
out the effect of the temperature variation of the offset voltage which increases the accuracy of the device.
*N = number of turns.

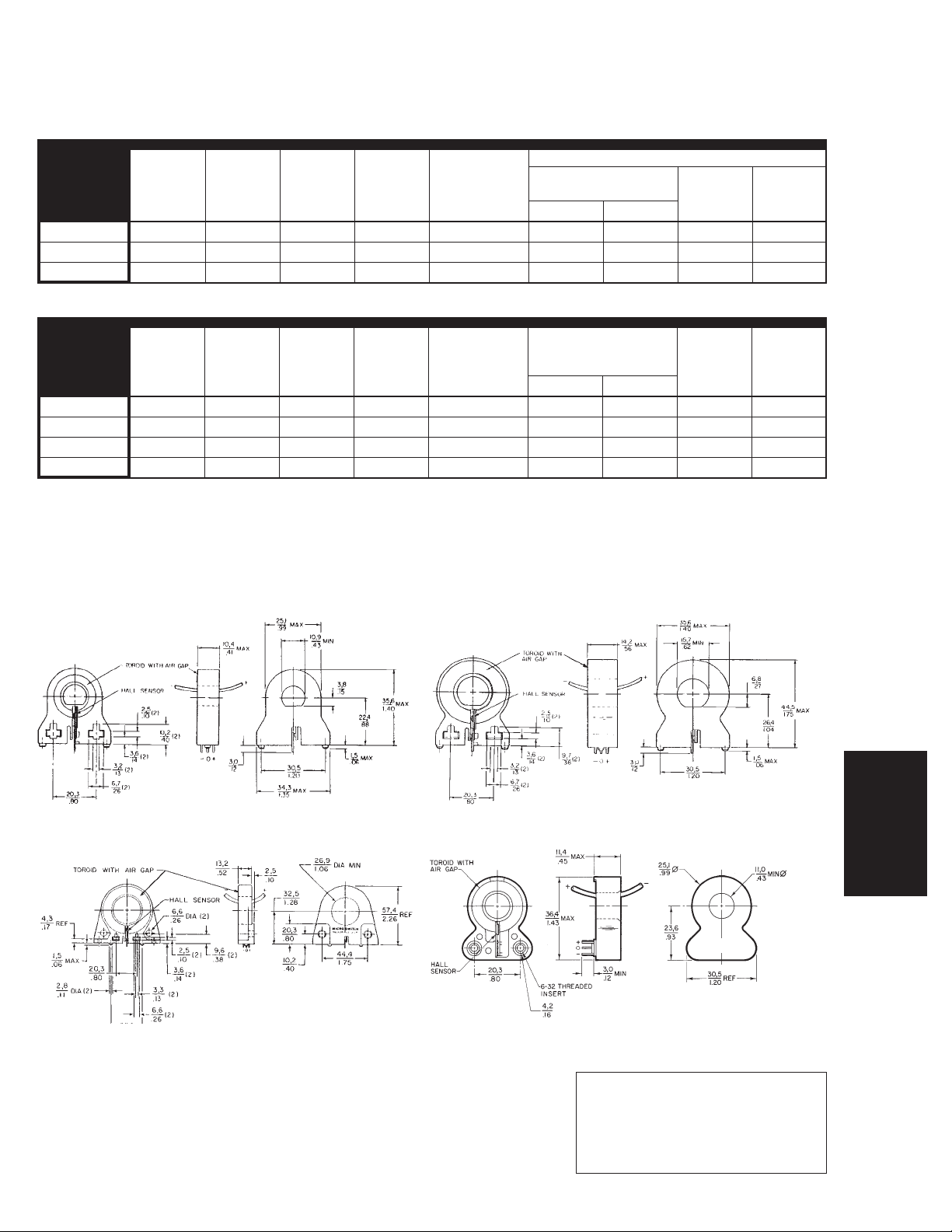

MOUNTING DIMENSIONS (for reference only)
Figure 1
Figure 1a
Figure 2
Figure 2a
* Application consideration: The out-
put is clamped at the high end. Clamp-
ing voltage may be as low as 9VDC.
The output will not exceed the clamp-
ing voltage regardless of field strength
or supply voltage.
Current
