54
www.honeywell.com/sensing

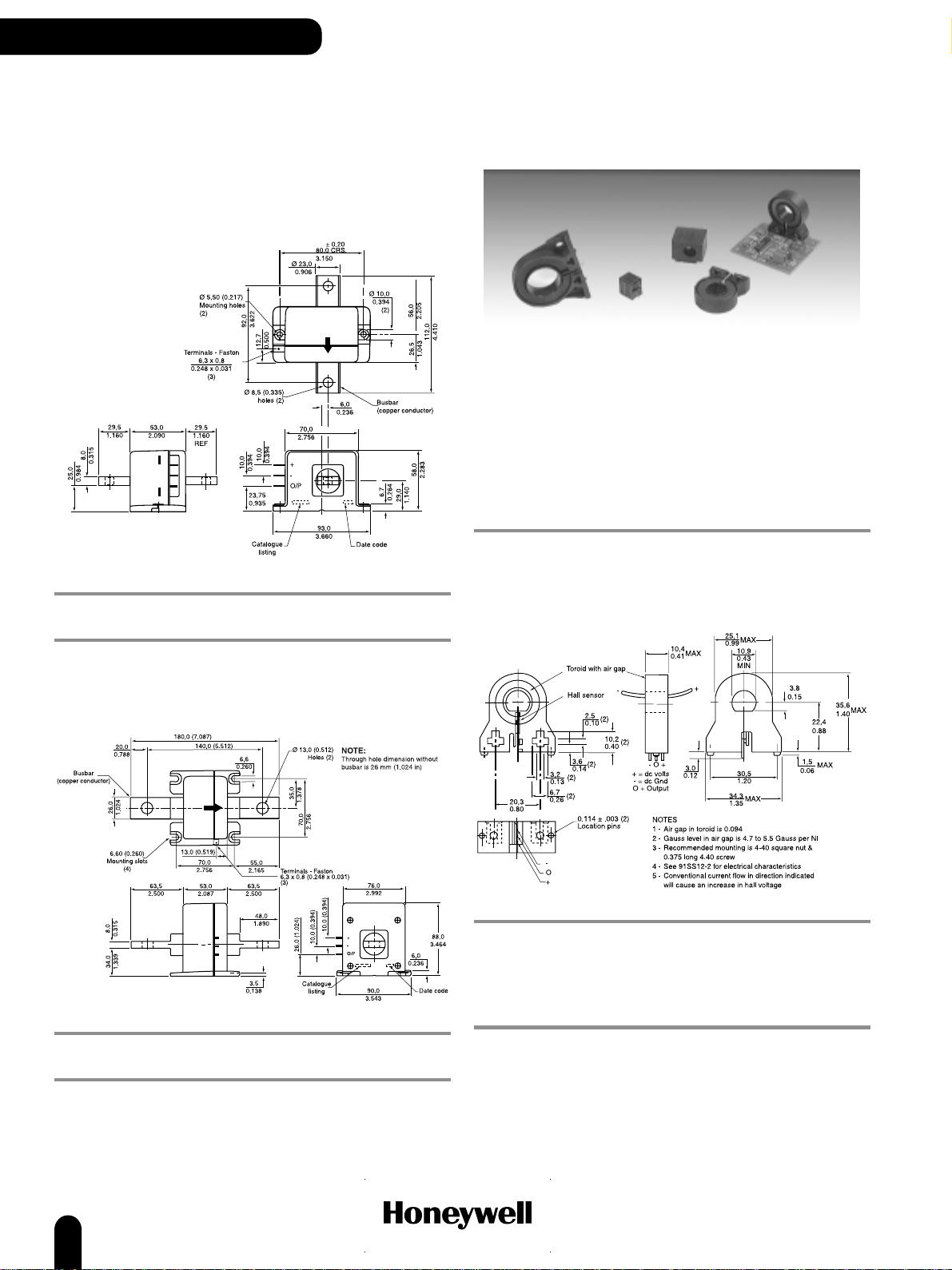

CSN Series
Closed Loop Current Sensors (Continued)
Mid range housed style
Housing material: Bayblend KU2-1468 (UL94-V0)
Mounting: Panel, spade terminals x 3
SENSED CURRENT RANGE COIL TURNS SUPPLY VOLTAGE REFERENCE
± 600 A 2000 (25 Ohm coil) ± 12 to ± 18 Vdc CSNJ481
± 600 A (fitted with busbar) 2000 (25 Ohm coil) ± 12 to ± 18 Vdc CSNJ481-001
Large housed style
Housing material: Bayblend KU2-1468 (UL94-V0)
Mounting: Panel, spade terminals x 3
SENSED CURRENT RANGE COIL TURNS SUPPLY VOLTAGE REFERENCE
± 1200 A 5000 (50 Ohm coil) ± 15 to ± 24 Vdc CSNK591
± 1200 A (fitted with busbar) 5000 (50 Ohm coil) ± 15 to ± 24 Vdc CSNK591-001
CSLA Series
Open Loop Current Sensors
CS series linear current sensors incorporate our 91SS12-2 and SS94A1linear
output Hall effect transducer (LOHET™). These sensors cover measuring
ranges from 0-950 Amps. The sensing element is assembled in a printed
circuit board mountable housing. This housing is available in four
configurations. Normal mounting is with 0.375 inch long 4-40 screw and
square nut (not provided) inserted in the housing or a 6-20 self-tapping
screw. The combination of the sensor, flux collector, and housing comprises
the holder assembly. These sensors are ratiometric.
Sensed current type: ac or dc
Housing: PBT Polyester
OPTIONS
PCB bottom mount
SENSED CURRENT RANGE SUPPLY VOLTAGE REFERENCE
0 to 75 A 8 to 16 Vdc CSLA1DE
0 to 92 A 6 to 12 Vdc CSLA2DE
0 to 150 A 6 to 12 Vdc CSLA2DG
0 to 225 A 8 to 16 Vdc CSLA1DJ
0 to 225 A 6 to 12 Vdc CSLA2DJ
0 to 325 A 8 to 16 Vdc CSLA1DK
0 to 400 A 6 to 12 Vdc CSLA2DK
CURRENT
CURRENT
