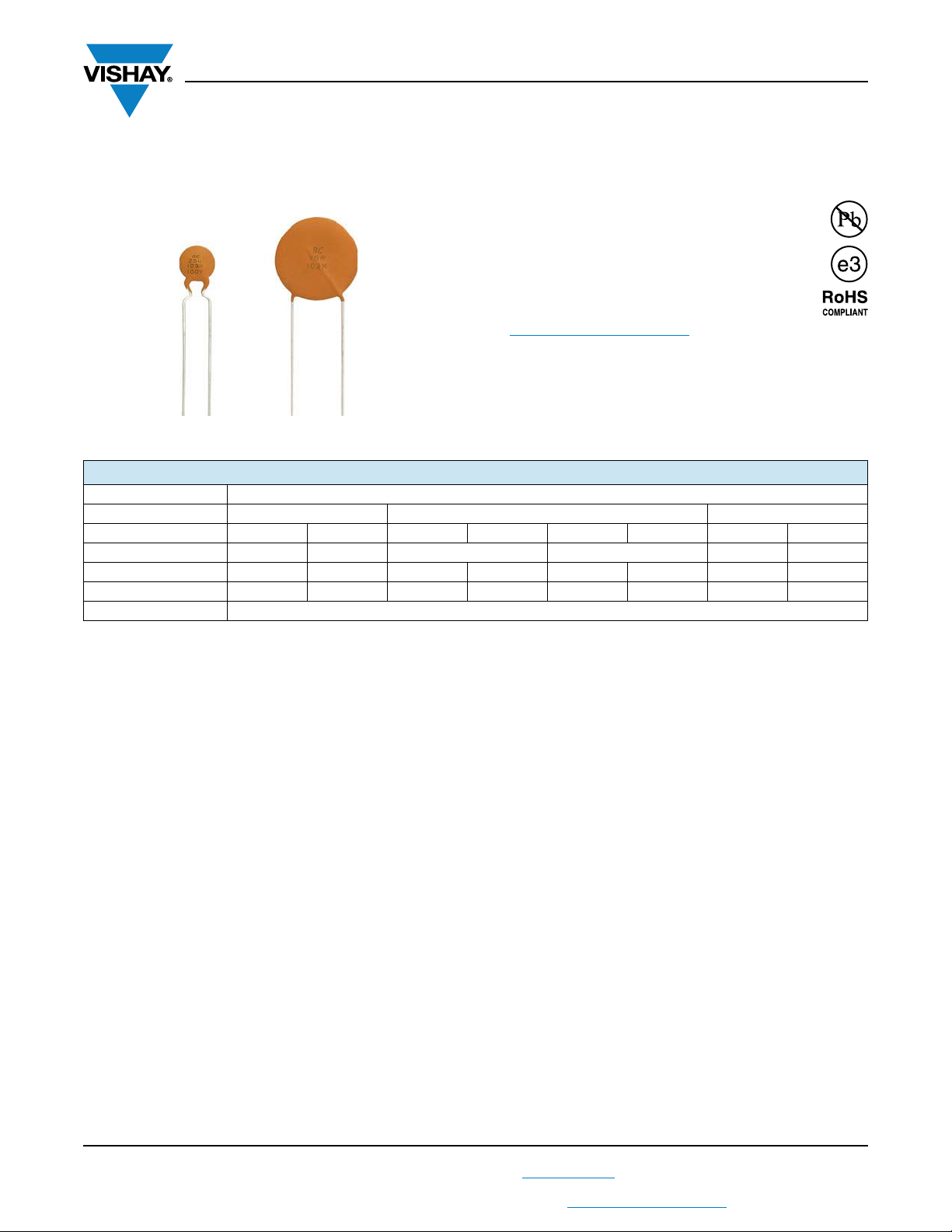

D Series
www.vishay.com
Vishay BCcomponents
Revision: 26-Nov-14
1
Document Number: 28549
For technical questions, contact: cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Ceramic Singlelayer DC Disc Capacitors for General Purpose
Class 1, Class 2 and Class 3, 50 V
DC
, 100 V
DC
, 500 V
DC
FEATURES
• High capacitance with small size
• High reliability
• Crimp and straight lead styles
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Temperature compensation
• Coupling and decoupling
• Bypassing
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198” and voltage marks.
OPERATING TEMPERATURE RANGE
SL0, N750, X7R, X5F: -55 °C to +125 °C
Z5U, Z5V, Y5V: -30 °C to +125 °C
TEMPERATURE CHARACTERISTICS
Class 1: SL0, N750
Class 2: Y5P, Z5U, X7R, X5F
Class 3: Y5V, Z5V
SECTIONAL SPECIFICATIONS
Climatic category (acc. to EN 60058-1)
Class 1 and 2: 55/125/21
Class 3: 30/85/21
APPROVALS
EIA 198
IEC 60384-8
IEC 60384-9
CAPACITANCE RANGE
6.8 pF to 47 nF
TOLERANCE ON CAPACITANCE
± 0.25 pF, ± 2 %, ± 5 %, ± 10 %, ± 20 %, + 80 % / - 20 %
RATED VOLTAGE
50 V
DC
, 100 V
DC
, 500 V
DC
TEST VOLTAGE
250 % of rated voltage
INSULATION RESISTANCE AT RATED VOLTAGE
10 G min.
DISSIPATION FACTOR
Class 1 0.1 % max. when C 30 pF
(at 1 MHz; 1 V where C 1000 pF, and at
1 kHz; 1 V where C > 1000 pF)
For C < 30 pF: DF = 100/(400 + 20 x C)
DF = dissipation factor in %;
C = capacitance value in pF
Class 2 2.5 % max. (at 1 kHz; 1 V)
Class 3 5 % max. (at 1 kHz; 1 V)
QUICK REFERENCE DATA
DESCRIPTION VALUE
Ceramic Class 1 2 3
Ceramic Dielectric SL0 N750 Y5P Z5U X7R X5F Y5V Z5V
Voltage (V
DC
) 50, 100, 500 100, 500 50, 100, 500 500 50, 100, 500 50, 100
Min. Capacitance (pF) 56 6.8 100 1000 100 100 1000 4700
Max. Capacitance (pF) 100 330 10 000 22 000 4700 4700 22 000 47 000
Mounting Radial
