DAC161P997
August 2, 2011
Single-Wire 16-bit DAC for 4-20mA Loops
1.0 General Description
The DAC161P997 is a 16- bit ∑Δ digital-to-analog converter
(DAC) for transmitting an analog output current over an in-
dustry standard 4-20 mA current loop. It offers 16-bit accuracy
with a low output current temperature coefficient (29ppm/°C)
and excellent long-term output current drift (90 ppmFS) while
consuming less than 190µA.
The data link to the DAC161P997 is a Single Wire Interface
(SWIF) which allows sensor data to be transferred in digital
format over an isolation boundary using a single isolation
component. The DAC161P997’s digital input is compatible
with standard isolation transformers and optocouplers. Error
detection and handshaking features within the SWIF protocol
ensure error free communication across the isolation bound-
ary. For applications where isolation is not required, the
DAC161P997 interfaces directly to a microcontroller.
The loop drive of the DAC161P997 interfaces to a HART
(Highway Addressable Remote Transducer) modulator, al-
lowing injection of FSK modulated digital data into the 4-20mA
current loop. This combination of specifications and features
makes the DAC161P997 ideal for 2- and 4-wire industrial
transmitters.
The DAC161P997 is available in a 16–lead LLP package and
is specified over the extended industrial temperature range of
-40°C to 105°C.
2.0 Applications
•
Two-wire, 4-20 mA current loop transmitter
•
Industrial Process Control
•
Actuator control
•
Factory Automation
•
Building Automation
•
Precision Instruments
•
Data Acquisition Systems
•
Test Systems
3.0 Features
■
16-bit linearity
■
Single-Wire Interface (SWIF), with handshake
■
Digital Data transmission (no loss of fidelity)
■
Pin Programmable Power-Up Condition
■
Self adjusting to input data rate
■
Loop error detection and reporting
■
Programmable output current error level
■
No external precision components
■
Simple interface to HART modulator
■
Small package: LLP-16 (4x4 mm, 0.5 mm pitch)
4.0 Key Specifications
■
Output Current TempCo 29 ppmFS/°C(max)
■
Long-Term Output Current Drift 90 ppmFS(typ)
■
INL +3.3/−2.1 µA(max)
■
Total Supply Current 190 µA(max)

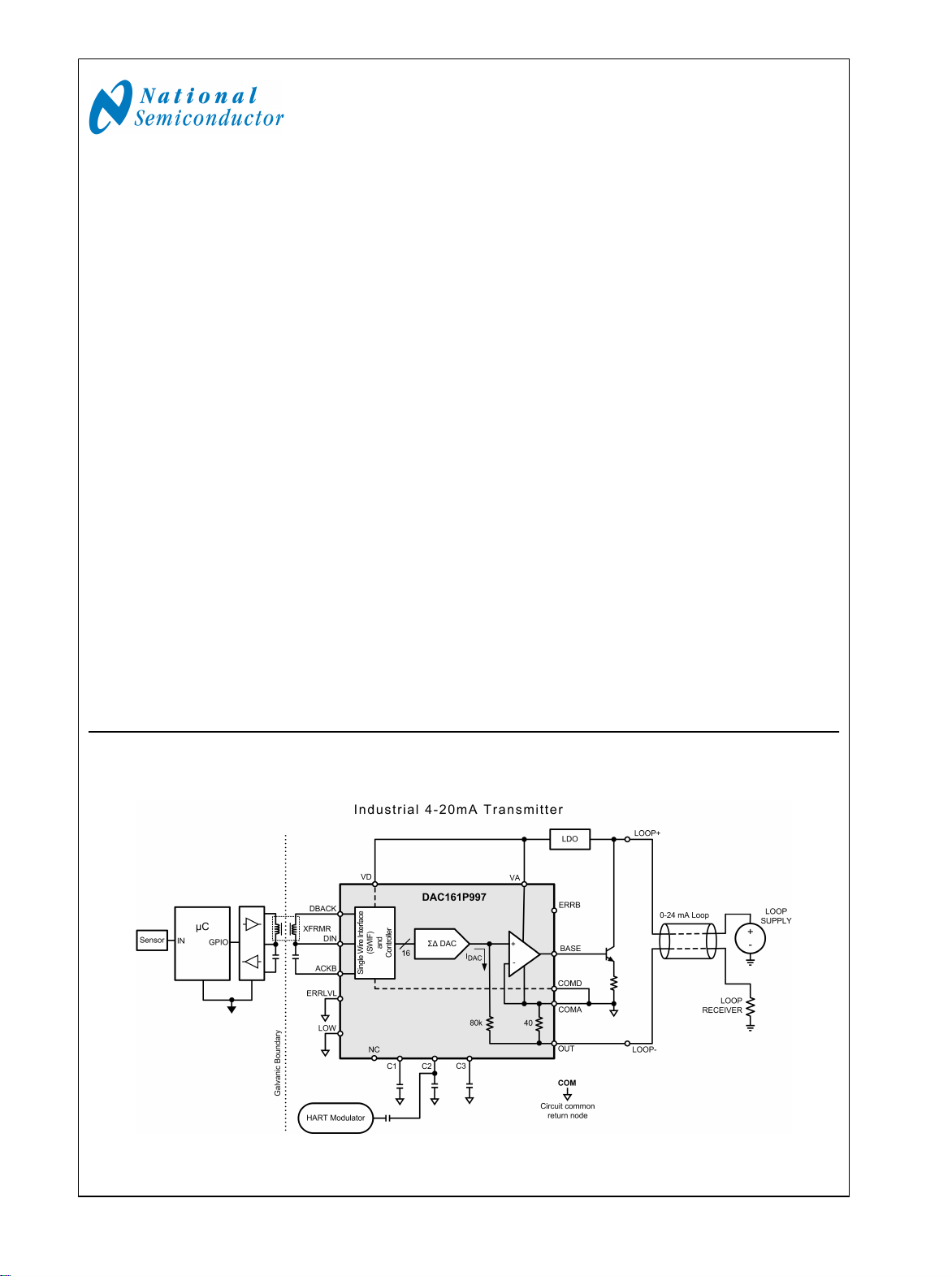

5.0 Typical Application - Conceptual Schematic
30154401
National Semiconductor® is a registered trademark of National Semiconductor Corporation.
© 2011 National Semiconductor Corporation 301544 www.national.com
DAC161P997 Single-Wire 16-bit DAC for 4-20mA Loops
