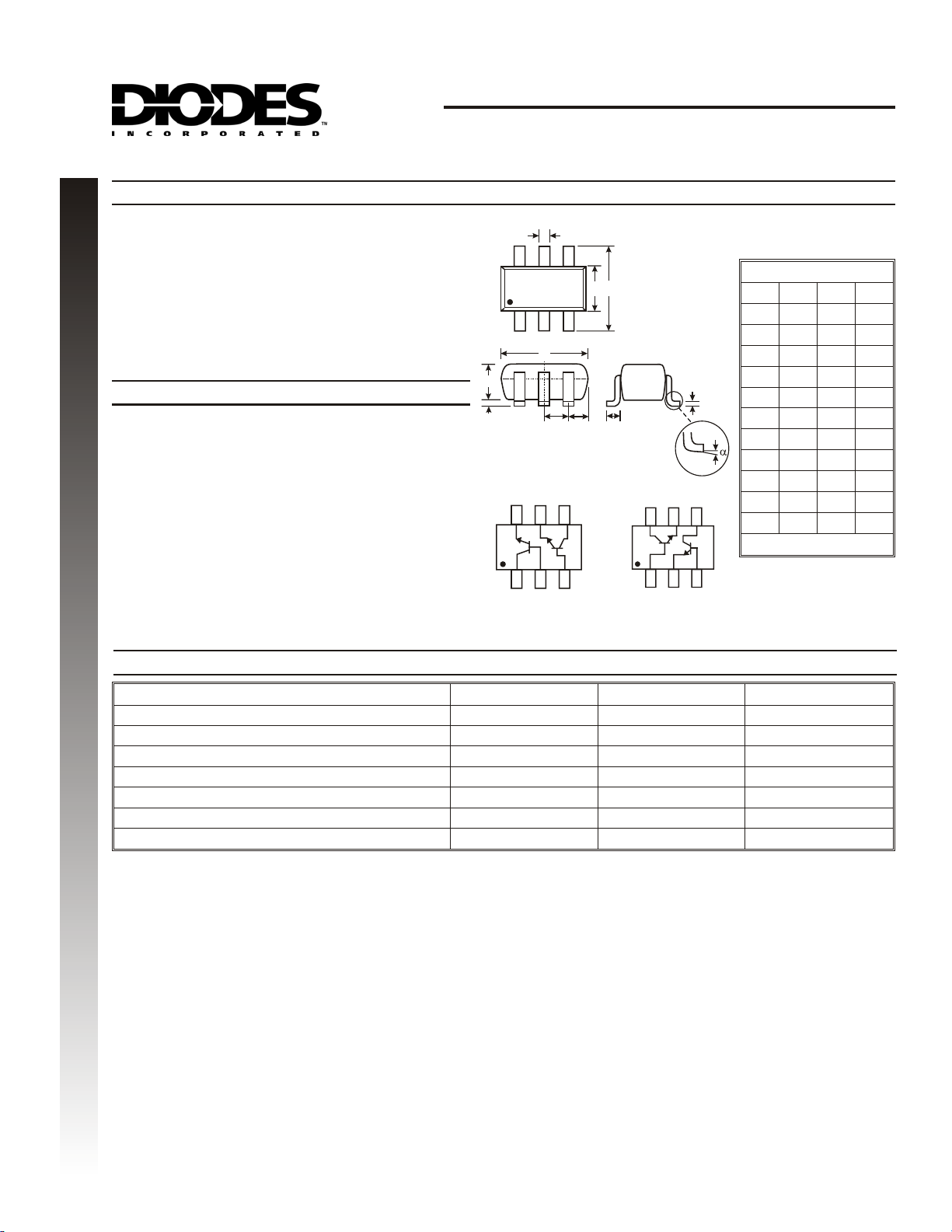

DS30436 Rev. 3 - 2 1 of 3 DMMT5551/DMMT5551S
www.diodes.com
ã Diodes Incorporated
DMMT5551/DMMT5551S
MATCHED NPN SMALL SIGNAL SURFACE MOUNT
TRANSISTOR
· Epitaxial Planar Die Construction
· Complementary PNP Type Available
(DMMT5401)
· Ideal for Medium Power Amplification and
Switching
· Intrinsically Matched NPN Pair (Note 1)
· 2% Matched Tolerance, h
FE
, V
CE(SAT)
, V
BE(SAT)
· 1% Matched Tolerance, Available (Note 2)
· Also Available in Lead Free Version
Characteristic Symbol Value Unit
Collector-Base Voltage
V
CBO
180 V
Collector-Emitter Voltage
V
CEO
160 V
Emitter-Base Voltage
V
EBO
6.0 V
Collector Current - Continuous (Note 3)
I
C
200 mA
Power Dissipation (Note 3, 4)
P
d
300
mW
Thermal Resistance, Junction to Ambient (Note 3)
R
qJA
417 K/W
Operating and Storage and Temperature Range
T
j
,T
STG
-55 to +150 °C
Features
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
A
M
J
L
D
F
B
C
H
K
Mechanical Data
· Case: SOT-26, Molded Plastic
· Case Material - UL Flammability Rating 94V-0
· Moisture sensitivity: Level 1 per J-STD-020A
· Terminals: Solderable per MIL-STD-202, Method
208
· Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 8, on Page 2
· Terminal Connections: See Diagram
· Marking (See Page 2): K4R & K4T
· Ordering & Date Code Information: See
Page 2
· Weight: 0.006 grams (approx.)
Notes: 1. Built with adjacent die from a single wafer.
2. Contact the Diodes, Inc. Sales department.
3. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout
document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
4. Maximum combined dissipation.
SOT-26
Dim Min Max Typ
A
0.35 0.50 0.38
B
1.50 1.70 1.60
C
2.70 3.00 2.80
D
¾¾0.95
F
¾¾0.55
H
2.90 3.10 3.00
J
0.013 0.10 0.05
K
1.00 1.30 1.10
L
0.35 0.55 0.40
M
0.10 0.20 0.15
a
0° 8°¾
All Dimensions in mm
TCUDORPWEN
C
2
E
1
C
1
B
2
E
2
B
1
C
2
E
2
E
1
B
2
B
1
C
1
DMMT5551
(K4R Marking Code)
DMMT5551S
(K4T Marking Code)
SPICE MODEL: DMMT5551
