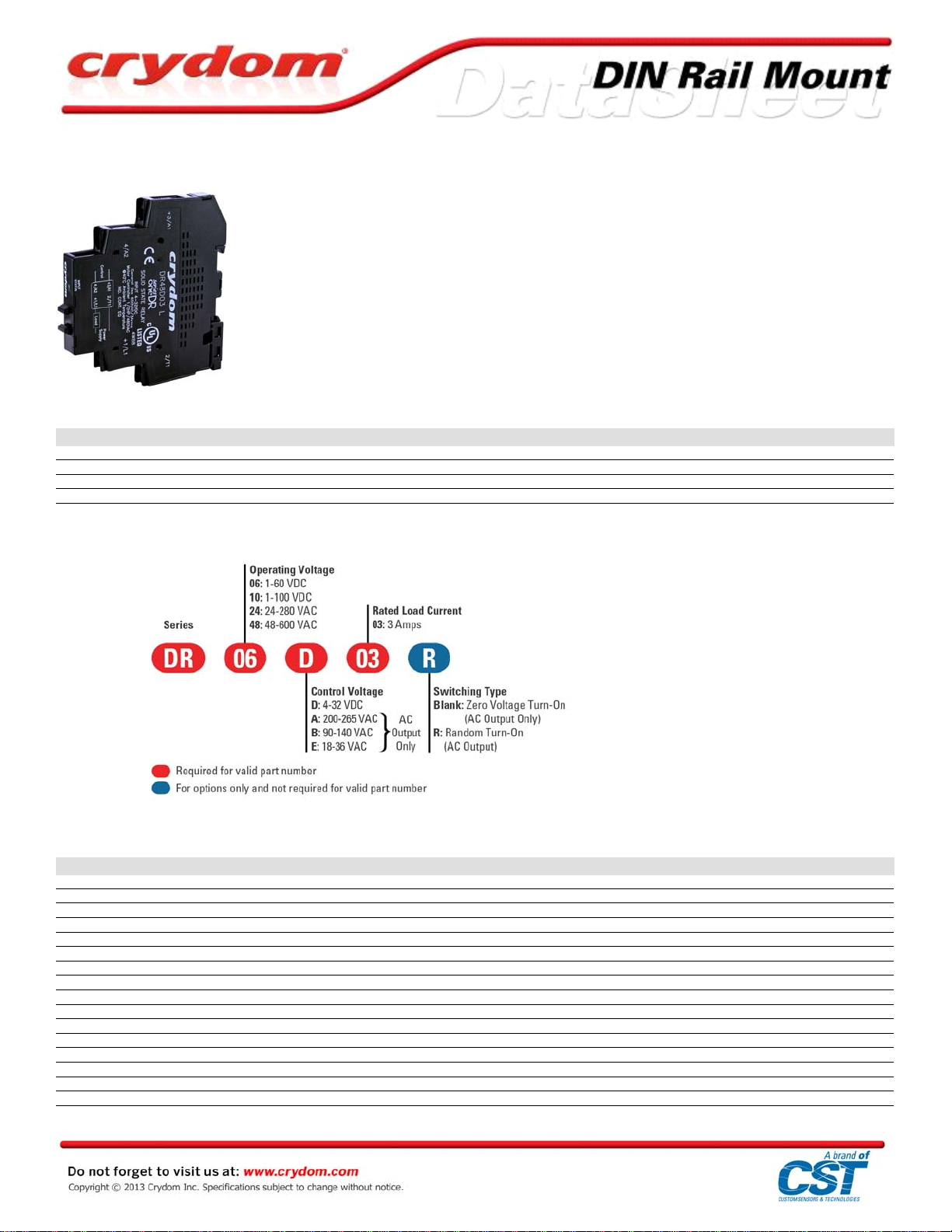

SeriesOne DR Series
• Rating 3 Amps
• Load voltage ratings of 24-280VAC, 48-600VAC, 1-60VDC and 1-100VDC
• Fits standard 35mm DIN Rail
• LED input status indicator
• AC or DC control
• Zero-crossing (resistive loads) or random turn-on (inductive loads) output
• UL and cUL Listed, HP Rated, CE & RoHS Compliant
• UL 508 Endurance Rating for Enhanced Reliability
PRODUCT SELECTION
Description 280V, 3A 600V, 3A 60V, 3A 100V, 3A
4-32 VDC Control DR24D03 DR48D03 DR06D03 DR10D03
90-140 VAC Control DR24B03
200-265 VAC Control DR24A03
18-36 VAC Control DR24E03
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description DR24x03 DR48x03 DR06D03 DR10D03
Operating Voltage (2) 24-280 Vrms 48-600 Vrms 1-60 VDC 1-100 VDC
Transient Overvoltage [Vpk] 600 1200 NA NA
Maximum Load Current, resistive (2A) 3 Arms 3 Arms 3 3
Minimum Load Current 0.15 0.15 Arms 2.5 mA 2.5 mA
Maximum Off-State Leakage Current @ Rated Voltage [mA] 0.1 0.1 0.1 0.1
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3) 500 500 NA NA
Maximum On-State Voltage Drop @ Rated Current [Vpk] 1.3 1.3 0.6 0.6
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk] 285/300 285/300 60 60
Maximum I²t for Fusing (50/60 HZ, 1/2 cycle) [A² sec] 410/375 410/375 NA NA
HP Rating UL 508/IEC60947[HP (KW)] @ 240V 1/4 (0.18) 1/4 (0.18) NA NA
HP Rating UL 508/IEC60947[HP (KW)] @ 380V 1/2 (.37) 1/3 (.25) NA NA
HP Rating UL 508/IEC60947[HP (KW)] @ 480V 1/2 (.37) 1/2 (.37) NA NA
Minimum Power Factor (with Maximum Load) 0.5 0.5 NA NA
Min/Max stranded wire 22/14 AWG 22/14 AWG 22/14 AWG 22/14 AWG
Min/Max solid wire 22/14 AWG 22/14 AWG 22/14 AWG 22/14 AWG
Weight (typical) 1.76 oz. (50g) 1.76 oz. (50g) 1.76 oz. (50g) 1.76 oz. (50g)
