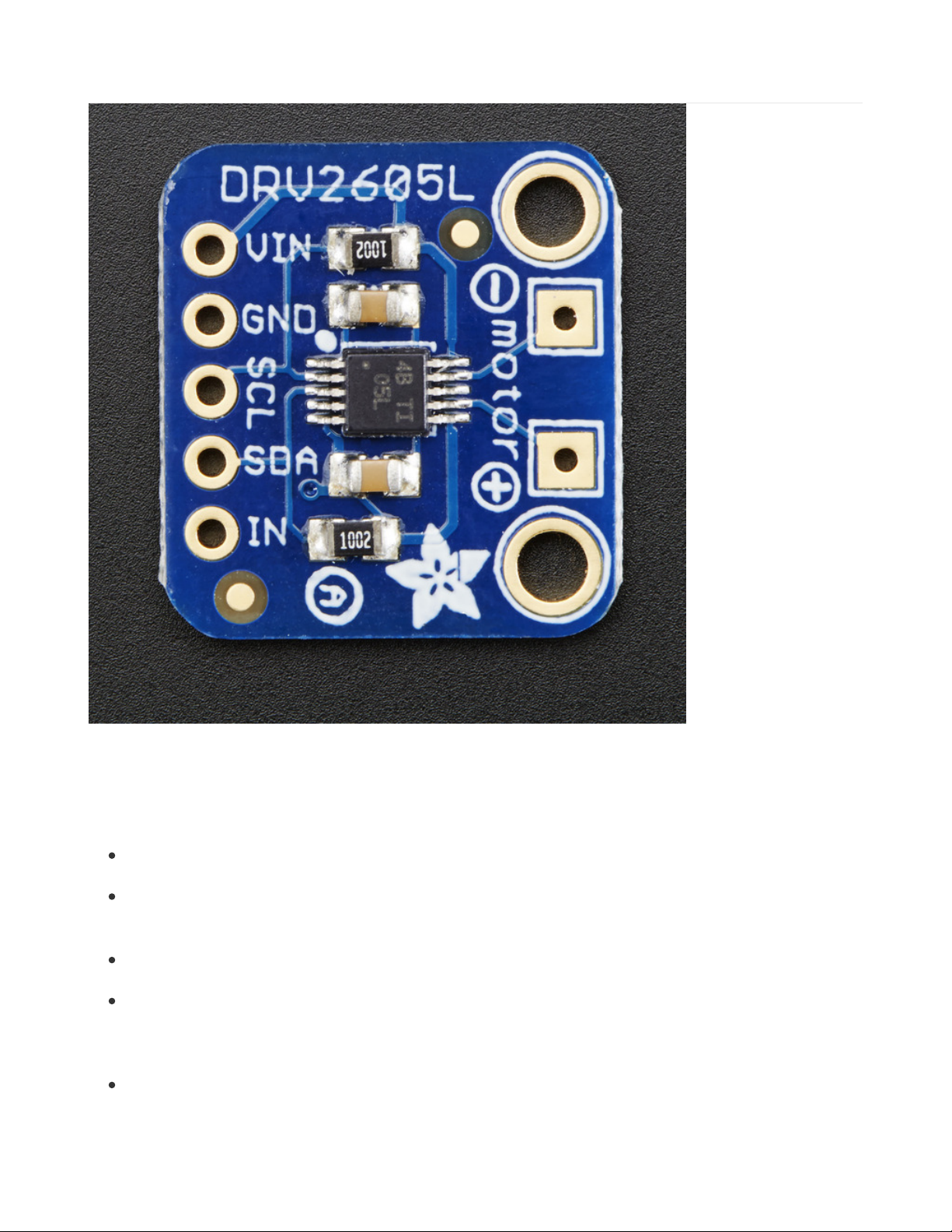

Pinouts
Power Pins
The motor driver/controller on the breakout requires 3-5V power. You can use either, whichever logic level you use on
your embedded processor
Vin - To power the board, give it the same power as the logic level of your microcontroller - e.g. for a 5V micro
like Arduino, use 5V
GND - common ground for power and logic
I2C Pins
SCL - I2C clock pin, connect to your microcontrollers I2C clock line. This pin can be used with 3V or 5V logic, and
there's a 10K pullup on this pin.
SDA - I2C data pin, connect to your microcontrollers I2C data line. This pin can be used with 3V or 5V logic, and
there's a 10K pullup on this pin.
Other!
IN/TRIG - This is a general purpose pin that can be used for a couple different uses. One use is to read analog
audio in to control the audio-to-haptic code. Another use is to 'trigger' the effects to go rather than sending a I2C
© Adafruit Industries https://learn.adafruit.com/adafruit-drv2605-haptic-controller-breakout Page 6 of 18
