Three Phase BLDC, PMSM Motor Kit with DRV8301, Encoder and TMS570 Safety

MCU - DRV8301-LS31-KIT

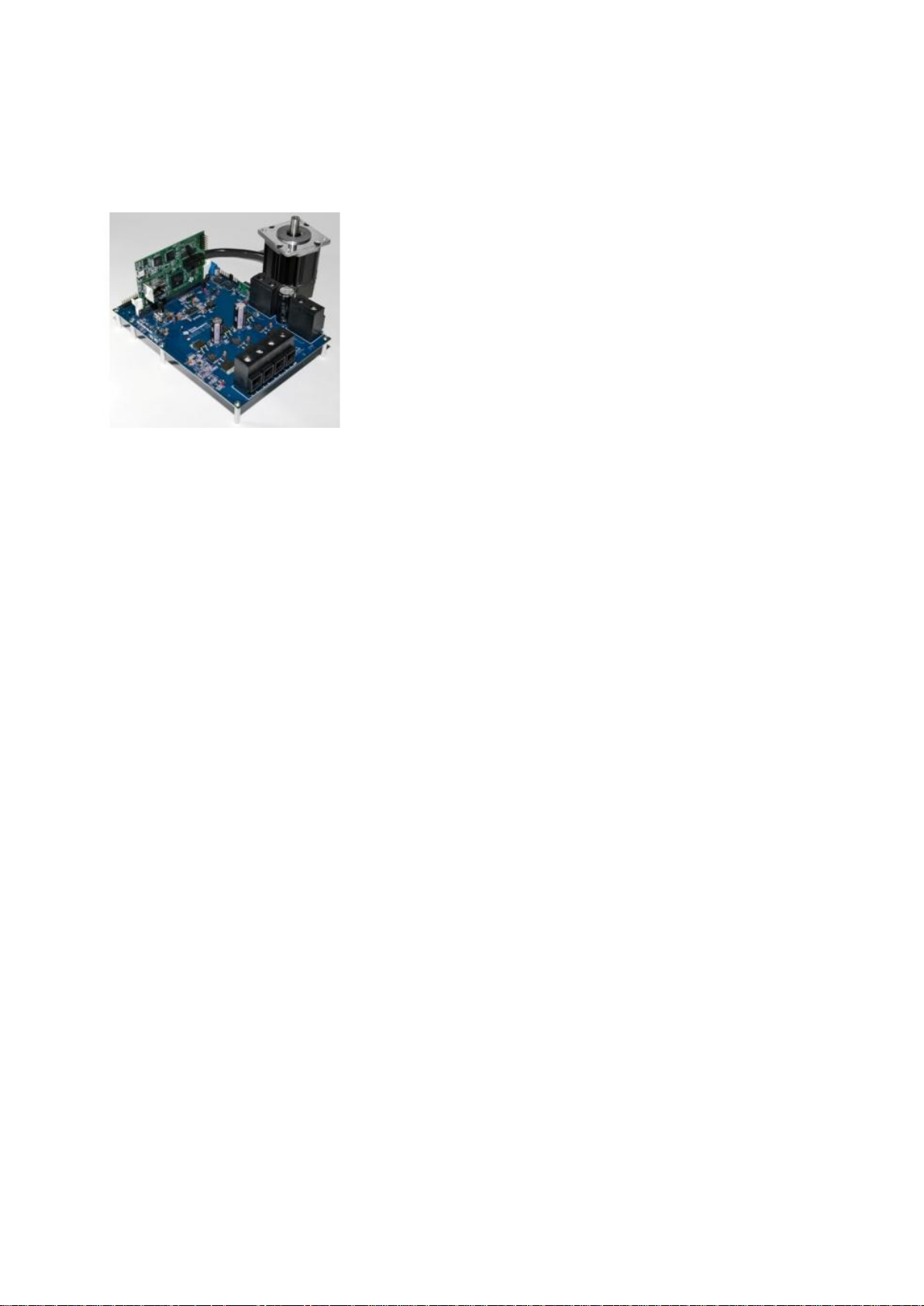

The DRV8301-LS31-KIT is a motor control evaluation kit for spinning three phase

brushless DC and brushless AC (BLAC) - often referred to as permanent magnet

synchronous (PMSM) – motors with examples of both sensorless Field Oriented /

Vector Control (FOC) and TI’s InstaSPIN-BLDC sensorless BLDC solution. The

DRV8301-LS31-KIT is a high-performance, power-efficient, cost-effective

platform that speeds development for quicker time to market. Applications

 Sensorless InstaSPIN™-BLDC

 Speed & torque control loops

 Follows TI motor software & HALCoGen conventions

 Leverages ARM CMSIS Math Library

 Teknic Motor:

 6,000 rpm

 7.1 A motor with built in encoder

 Hercules controlCARD includes:

 Isolated xds100v2 and external JTAG connector

 RJ45 Ethernet connector

 24 V international wall power supply

 Hercules TMS570LS31 Isolated controlCARD

 USB Cable

 Quick Start Guide

 One DVD that includes TI Code Composer Studio 5

 One DVD that includes:

 TI MotorWare motor control CCS5 example projects for: Redundant SMO and Encoder based FOC and InstaSPIN™-BLDC

 TI GUIComposer runtime environment with GUI applications demonstrating the MotorWare projects

 MotorWare Documentation

 Hardware Documentation
