DRV8305
PWM
4.4 to 45 V
MCU
N-Channel
MOSFETs
Gate Drive
Sense
3-Phase
Brushless
Pre-Driver
SPI
nFAULT
Shunt Amps
M
EN_GATE
Protection
Shunt Amps
LDO
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
DRV8305
SLVSCX2B –AUGUST 2015–REVISED FEBRUARY 2016
DRV8305 Three Phase Gate Driver With Current Shunt Amplifiers and Voltage Regulator
1
1 Features
1
• 4.4-V to 45-V Operating Voltage
• 1.25-A and 1-A Peak Gate Drive Currents
• Programmable High- and Low-Side Slew-Rate
Control
• Charge-Pump Gate Driver for 100% Duty Cycle
• Three Integrated Current-Shunt Amplifiers
• Integrated 50-mA LDO (3.3-V and 5-V Option)
• 3-PWM or 6-PWM Input Control up to 200 kHz
• Single PWM-Mode Commutation Capability
• Supports Both 3.3-V and 5-V Digital Interface
• Serial Peripheral Interface (SPI) for Device
Settings and Fault Reporting
• Thermally-Enhanced 48-Pin HTQFP
• Protection Features:
– Fault Diagnostics and MCU Watchdog
– Programmable Dead-Time Control
– MOSFET Shoot-Through Prevention
– MOSFET V
DS
Overcurrent Monitors
– Gate-Driver Fault Detection
– Reverse Battery-Protection Support
– Limp Home-Mode Support
– Overtemperature Warning and Shutdown
2 Applications
• Three-Phase BLDC and PMSM Motors
• CPAP and Pumps
• Robotics and RC Toys
• Power Tools
• Industrial Automation
3 Description
The DRV8305 device is a gate driver IC for three-
phase motor-drive applications. The device provides
three high-accuracy and temperature compensated
half-bridge drivers, each capable of driving a high-
side and low-side N-channel MOSFET. A charge
pump driver supports 100% duty cycle and low-
voltage operation. The device can tolerate load dump
voltages up to 45-V.
The DRV8305 device includes three bidirectional
current-shunt amplifiers for accurate low-side current
measurements that support variable gain settings and
an adjustable offset reference.
The DRV8305 device has an integrated voltage
regulator (3.3-V or 5-V) to support an MCU or other
system power requirements. The voltage regulator
can be interfaced directly with a standard LIN
physical interface to allow low system standby and
sleep currents.
The gate driver uses automatic handshaking when
switching to prevent current shoot through. The V
DS
of both the high-side and low-side MOSFETs is
accurately sensed to protect the external MOSFETs
from overcurrent conditions. The SPI provides
detailed fault reporting, diagnostics, and device
configurations such as gain options for the current
shunt amplifier, individual MOSFET overcurrent
detection, and gate-drive slew-rate control.
Device Options:
• DRV8305N: Voltage reference
• DRV83053: 3.3-V, 50-mA LDO
• DRV83055: 5-V, 50-mA LDO
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
DRV8305 HTQFP (48) 7.00 mm × 7.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

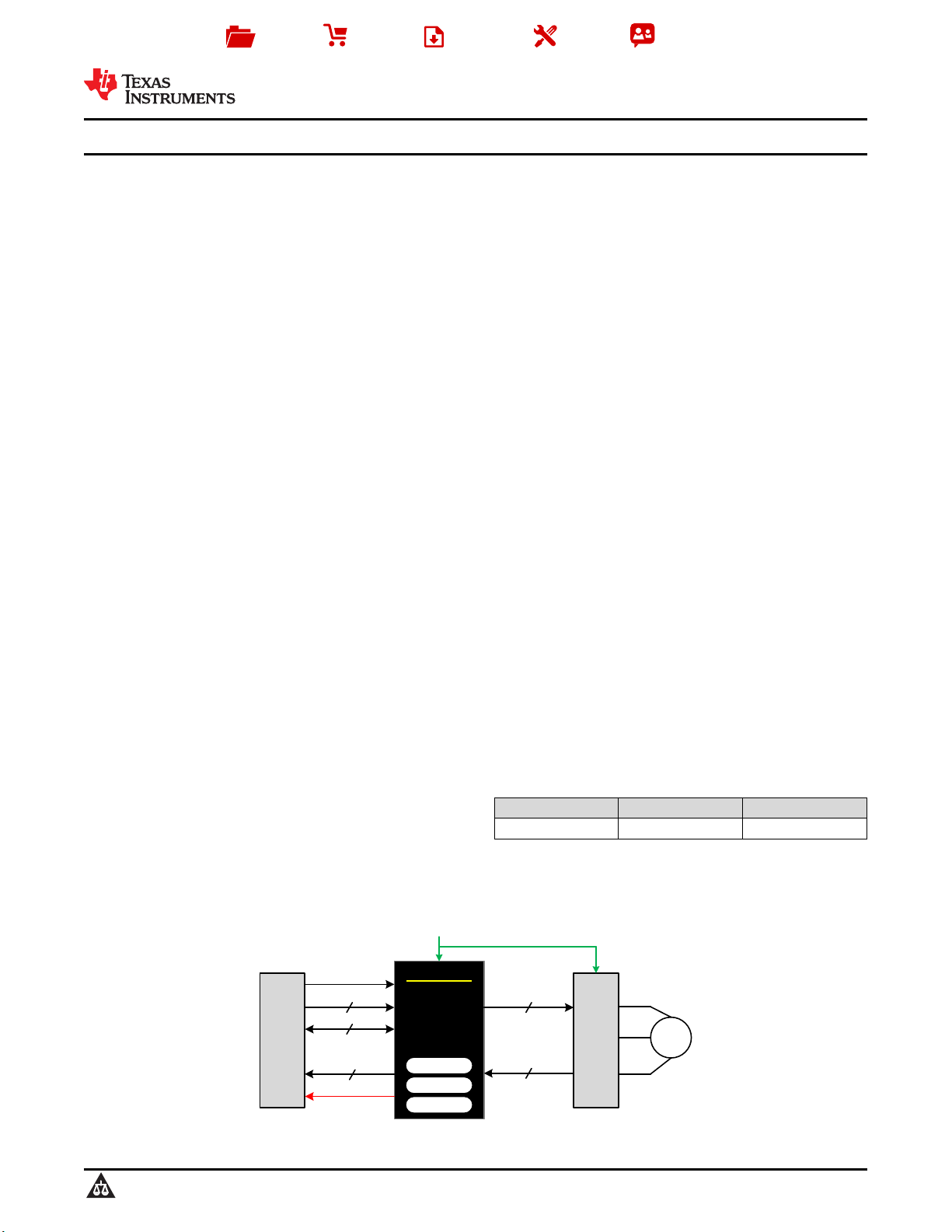

Simplified Schematic
