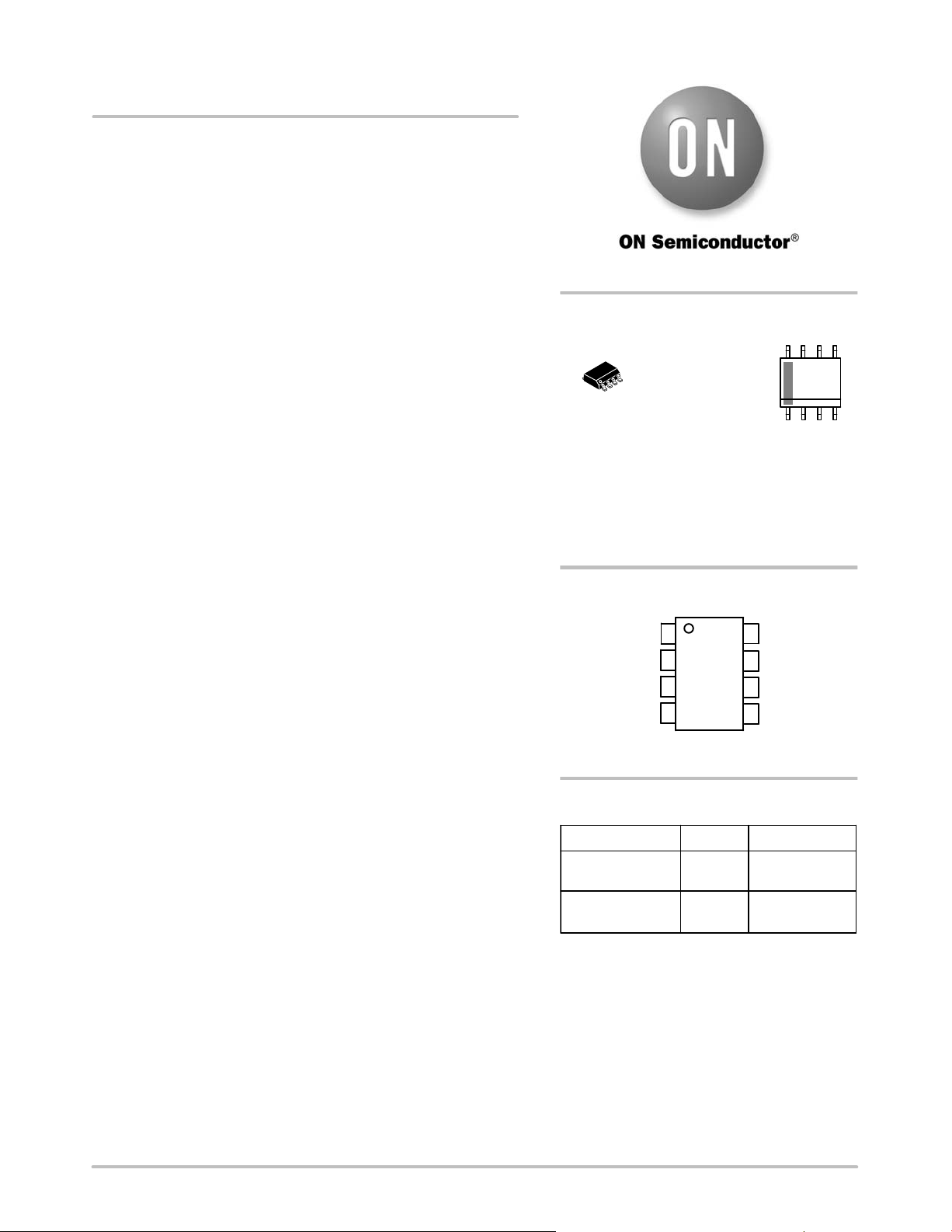

© Semiconductor Components Industries, LLC, 2011
November, 2011 − Rev. 0
1 Publication Order Number:
NCV8870/D
NCV8870
Automotive Grade
Non-Synchronous Boost
Controller
The NCV8870 is an adjustable output non−synchronous boost
controller which drives an external N−channel MOSFET. The device
uses peak current mode control with internal slope compensation. The
IC incorporates an internal regulator that supplies charge to the gate
driver.
Protection features include internally−set soft−start, undervoltage
lockout, cycle−by−cycle current limiting, hiccup−mode short−circuit
protection and thermal shutdown.
Additional features include low quiescent current sleep mode and
externally−synchronizable switching frequency.
Features
• Peak Current Mode Control with Internal Slope Compensation
• 1.2 V ±2% Reference voltage
• Fixed Frequency Operation
• Wide Input Voltage Range of 3.2 V to 40 Vdc, 45 V Load Dump
• Input Undervoltage Lockout (UVLO)
• Internal Soft−Start
• Low Quiescent Current in Sleep Mode
• Cycle−by−Cycle Current Limit Protection
• Hiccup−Mode Overcurrent Protection (OCP)
• Hiccup−Mode Short−Circuit Protection (SCP)
• Thermal Shutdown (TSD)
• This is a Pb−Free Device
MARKING
DIAGRAM
8870xx = Specific Device Code
xx = 00, 01
A = Assembly Location
L = Wafer Lot
Y = Year
W = Work Week
G = Pb−Free Package
http://onsemi.com
SOIC−8
D SUFFIX
CASE 751
1
8
PIN CONNECTIONS
1 8
2
3
4
7
6
5
(Top View)
8870xx
ALYW
G
1
8
EN/SYNC
ISNS
GND
GDRV
VFB
VC
VIN
VDRV
Device Package Shipping
†
ORDERING INFORMATION
NCV887000D1R2G SOIC−8
(Pb−Free)
2500 / Tape &
Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
NCV887001D1R2G SOIC−8
(Pb−Free)
2500 / Tape &
Reel
