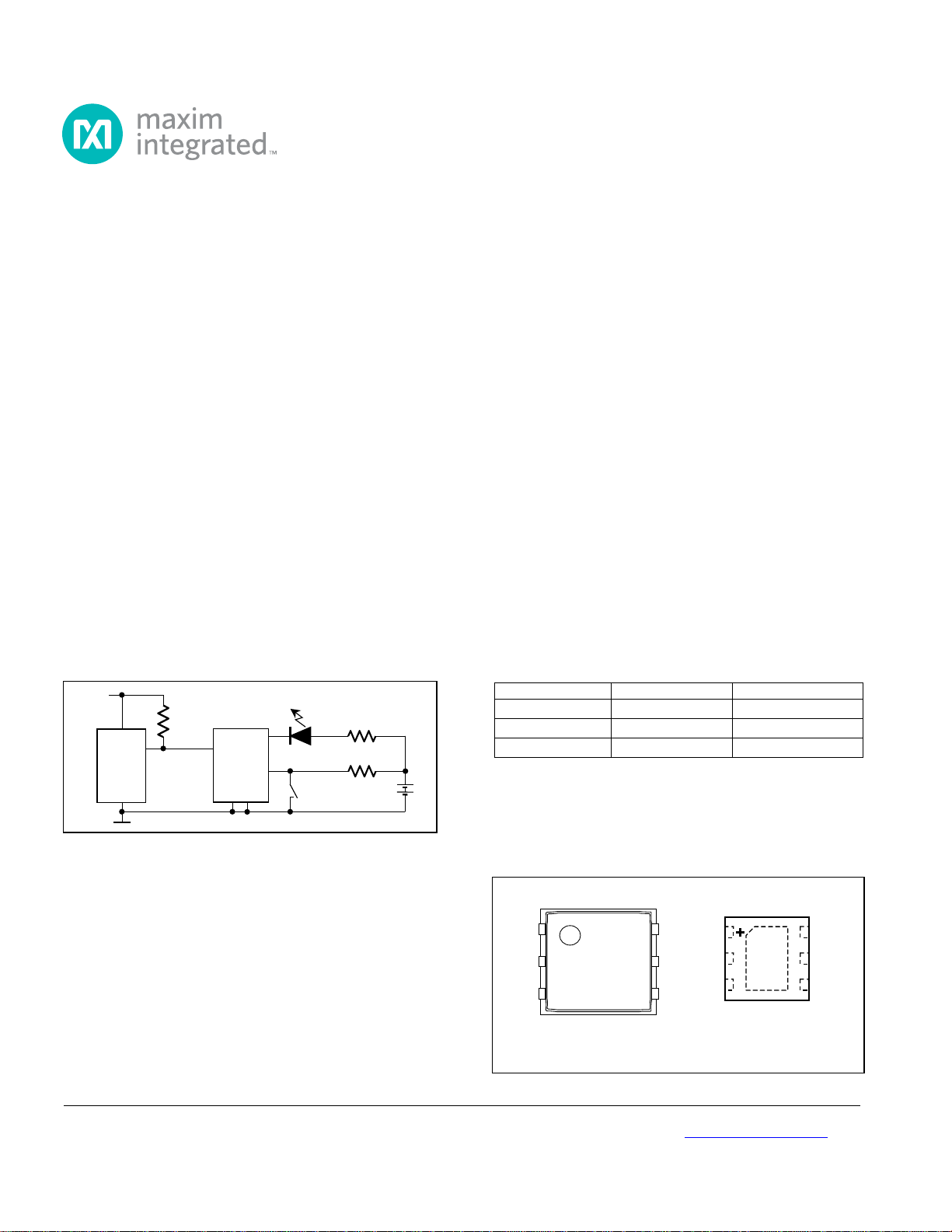

GENERAL DESCRIPTION
The DS2413 is a dual-channel programmable I/O
1-Wire
®
chip. The PIO outputs are configured as
open-drain and provide up to 20mA continuous sink
capability and off-state operating voltage up to 28V.
Control and sensing of the PIO pins is performed with
a dedicated device-level command protocol. To
provide a high level of fault tolerance in the end
application, the 1-Wire IO and PIO pins are all
capable of withstanding continuous application of
voltages up to 28V max. Communication and
operation of the DS2413 is performed with the single
contact Maxim/Dallas 1-Wire serial interface.
APPLICATIONS
LED Control
Accessory Identification and Control
General Purpose Input/Output
Key-Pick Systems
Industrial Controllers
System Monitoring
TYPICAL OPERATING CIRCUIT
PX.Y
µC
R
PUP
V
CC
Local
Power
R1
LED
Switch
R2
PIOA
IO
PIOB
GND
DS2413
FEATURES
Open-Drain Programmable I/O Pins
PIO Pins Support 20mA max Continuous Current
Sink
Supports 28V (max) PIO Pin Operating Voltage
On-Resistance of PIO Pulldown Transistor 20Ω
max; OFF Resistance 1MΩ min
Parasitic Power Supply Through 1-Wire
Communicates to Host with a Single Digital
Signal at 14.9kb or 100kbps Using 1-Wire
Protocol
Unique 64-bit ROM Serial Number Factory
Lasered Into Each Device
Switchpoint Hysteresis and Filtering to Optimize
Performance in the Presence of Noise
1-Wire IO Pin Supports 28V Absolute Maximum
DC Level for Fault Conditions
Operates Over a Wide 1-Wire Voltage Range of
2.8V to 5.25V from 0°C to +70°C
High ESD Immunity of 1-Wire IO Pin: 8kV HBM
Typical
TSOC and TDFN Packages Available
ORDERING INFORMATION
PART
TEMP RANGE
PIN-PACKAGE
DS2413P+
0°C to +70°C
TSOC
DS2413P+T&R
0°C to +70°C
TSOC
DS2413Q+T&R
0°C to +70°C
TDFN
+ Denotes a lead(Pb)-free package/RoHS-compliant
package.
T&R = Tape and reel.
PIN CON
FIGURATION
1
2
3
6
5
4
2413
ymrrF
6
5
4
1
2
3
DS
2413
ywwrr
TSOC TDFN
Top View with Marking. TDFN Contacts
Not Visible in this View.
Exposed Paddle
DS2413
1-
Wire Dual Channel
Addressable Switch
Commands, Registers, and Modes are capitalized for
clarity.
1-Wire is a registered trademark of Maxim Integrated Products, Inc.
19-5316; 11/14
1 of
18
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here: www.maxim-ic.com/errata.
