AVAILABLE
Functional Diagrams
Pin Configurations appear at end of data sheet.
Functional Diagrams continued at end of data sheet.
UCSP is a trademark of Maxim Integrated Products, Inc.
For pricing, delivery, and
ordering information, please contact Maxim Direct
at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
General Description
The DS24B33 is a 4096-bit, 1-Wire
®
EEPROM orga-
nized as 16 memory pages of 256 bits each. Data is
written to a 32-byte scratchpad, verified, and then
copied to the EEPROM memory. The DS24B33 commu-
nicates over a single-conductor 1-Wire bus. The com-
munication follows the standard 1-Wire protocol. Each
device has its own unalterable and unique 64-bit regis-
tration number that is factory programmed into the chip.
The registration number is used to address the device
in a multidrop 1-Wire net environment. The DS24B33 is
software compatible to the DS2433.
Applications
Storage of Calibration Constants
Board Identification
Storage of Product Revision Status
Features
o 4096 Bits of Nonvolatile EEPROM Partitioned Into
Sixteen 256-Bit Pages
o Read and Write Access is Highly Backward-
Compatible to the DS2433
o 256-Bit Scratchpad with Strict Read/Write
Protocols Ensures Integrity of Data Transfer
o Unique, Factory-Programmed, 64-Bit Registration
Number Ensures Error-Free Device Selection and
Absolute Part Identity
o Switchpoint Hysteresis to Optimize Performance
in the Presence of Noise
o Communicates to Host at 15.4kbps or 125kbps
Using 1-Wire Protocol
o Low-Cost Through-Hole and SMD Packages
o Operating Range: +2.8V to +5.25V, -40°C to +85°C
o IEC 1000-4-2 Level 4 ESD Protection (±8kV
Contact, ±15kV Air, Typical) for IO Pin
1-Wire 4Kb EEPROM
Ordering Information
IO
R
PUP
V
CC
µC
GND
DS24B33

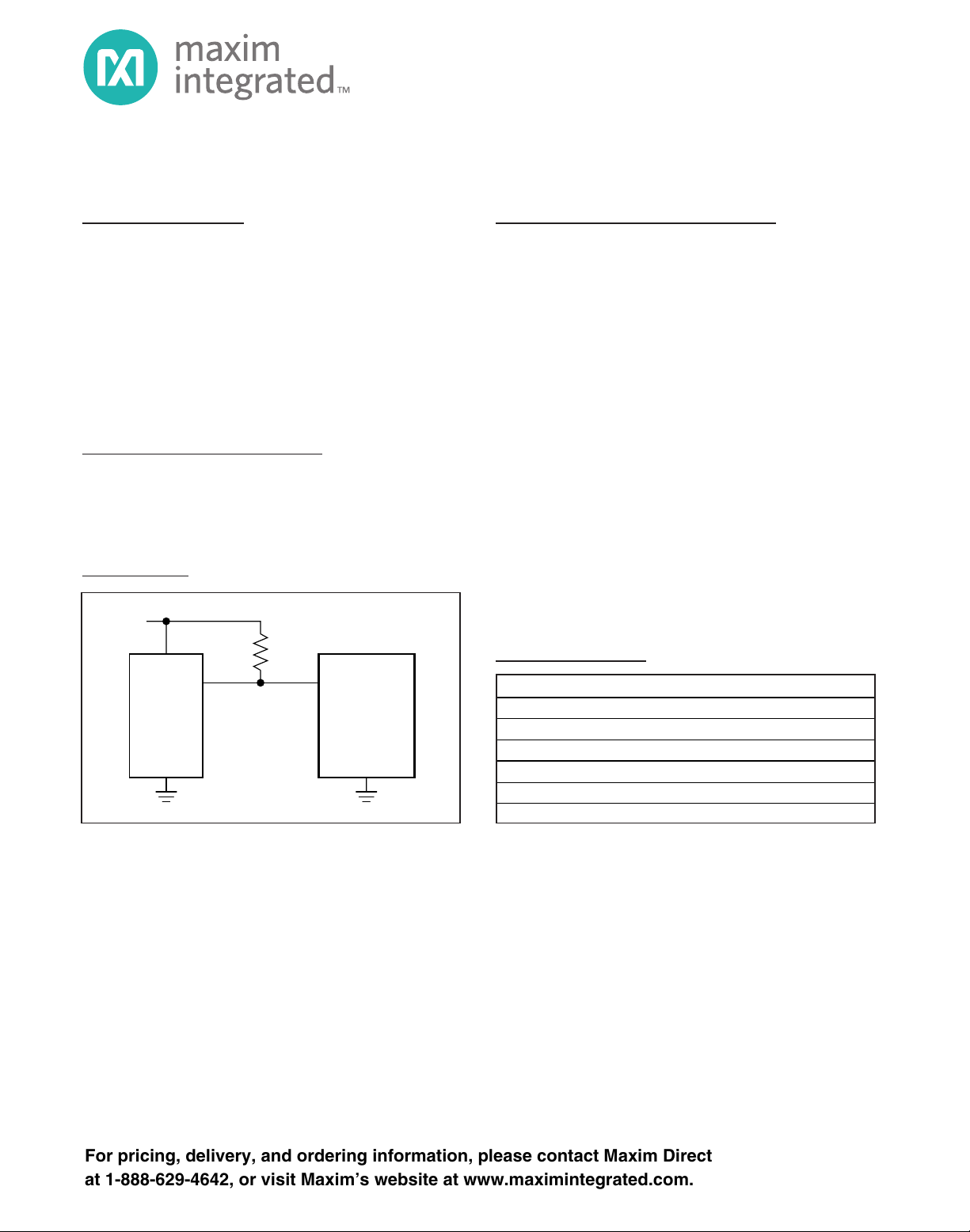

Typical Operating Circuit
Note: The leads of TO-92 packages on tape and reel are formed
to approximately 100-mil (2.54mm) spacing. For details, refer to
the package outline drawing.
+
Denotes a lead(Pb)-free/RoHS-compliant package.
T&R = Tape and reel.
*EP = Exposed pad.
PART TEMP RANGE PIN-PACKAGE
DS24B33+ -40°C to +85°C TO-92
DS24B33+T&R -40°C to +85°C TO-92
DS24B33G+T&R -40°C to +85°C 2 SFN (2.5k pcs)
DS24B33Q+T&R -40°C to +85°C 6 TDFN-EP* (2.5k pcs)
DS24B33S+ -40°C to +85°C 8 SO (208 mils)
DS24B33S+T&R -40°C to +85°C 8 SO (208 mils)
1-Wire is a registered trademark of Maxim Integrated Products, Inc.
19-5759; Rev 3; 5/12
