1 of 25
050907
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here: www.maxim-ic.com/errata
.
GENERAL DESCRIPTION
The DS2782 measures voltage, temperature and
current, and estimates available capacity for
rechargeable lithium ion and lithium-ion polymer
batteries. Cell characteristics and application
parameters used in the calculations are stored in on-
chip EEPROM. The available capacity registers
report a conservative estimate of the amount of
charge that can be removed given the current
temperature, discharge rate, stored charge and
application parameters. Capacity estimation reported
in mAh remaining and percentage of full.
APPLICATIONS
Digital Still Cameras
Sub-Notebook Computers
Handheld PC Data Terminals
3G Multimedia Wireless Handsets

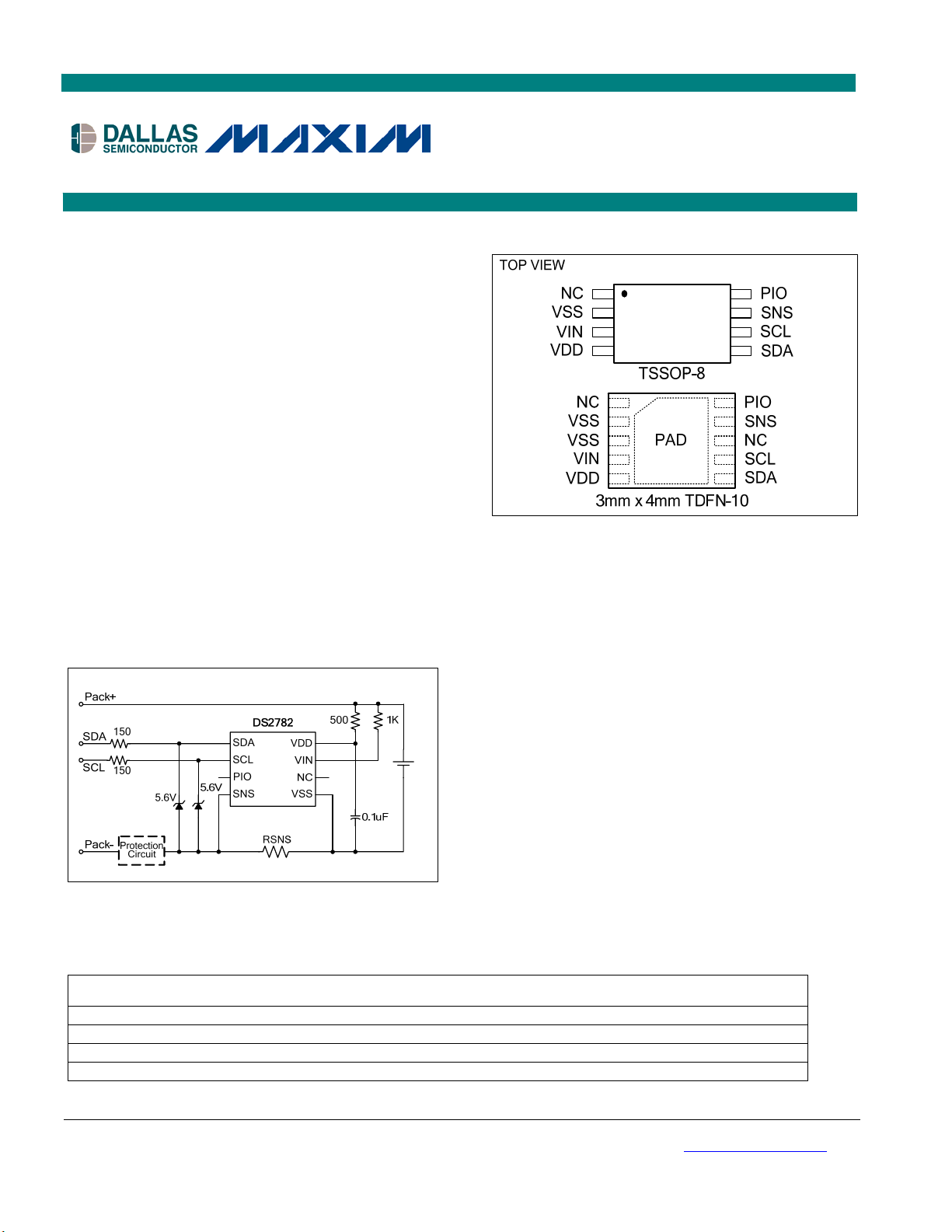

TYPICAL OPERATING CIRCUIT
PIN CONFIGURATION
FEATURES
Precision Voltage, Temperature, and Current
Measurement System
Accurate Stable Internal Time Base
Absolute and Relative Capacity Estimated from
Coulomb Count, Discharge Rate, Temperature
and Battery Cell Characteristics
Accurate Warning of Low Battery Conditions
Automatic Backup of Coulomb Count and Age
Estimation to Nonvolatile (NV) EEPROM
Gain and Tempco Calibration Allows the Use of
Low-Cost Sense Resistors
24-Byte User EEPROM or 16-Byte User
EEPROM and Unique 64-bit ID
Industry 2-Wire Interface with Programmable
Slave Address
Tiny TSSOP-8 and TDFN-10 Packages Embed
Easily in Thin Prismatic Cell packs
ORDERING INFORMATION
PART MARKING PACKAGE INFORMATION
DS2782E+ 2782+ Lead-Free TSSOP-8
DS2782E+T&R 2782+ DS2782E+, Tape-and-Reel
DS2782G+ 2782+ Lead-Free 3mm x 4mm TDFN-10
DS2782G+T&R 2782+ DS2782G+, Tape-and-Reel
Note: To order devices with the unique 64-bit ID option, contact Maxim/Dallas Semiconductor sales.
DS2782
Standalone Fuel Gauge IC
www.maxim-ic.com
