DS28E05 1-Wire EEPROM
General Description
The DS28E05 is a 112-byte user-programmable EEPROM
organized as 7 pages of 16 bytes each. Memory pages
can be individually set to write protected or EPROM
emulation mode through protection byte settings. Each
part has its own guaranteed unique 64-bit ROM identi-
fication number (ROM ID) that is factory programmed
into the chip. The DS28E05 communicates over Maxim
Integrated’s single contact 1-Wire
®
interface at overdrive
speed with the ROM ID acting as node address in the
case of a multiple-device 1-Wire network.
Applications
● Accessory/PCBIdentication
● MedicalSensorCalibrationDataStorage
● AnalogSensorCalibration
● AftermarketManagementofConsumables
Features
● Single-Contact1-WireInterface
● 112BytesUserEEPROMwith1KWriteCycles
● ProgrammableWriteProtectionandOTPEPROM
EmulationModesforUserMemory
● UniqueFactory-Programmed64-BitROMIDNumber
● CommunicateswithHostatUpto76.9kbps
(Overdrive Only)
● OperatingRange:1.71Vto3.63V,-40°Cto+85°C
● ±8kVHBMESDProtection(typ)onIOPin
● 4-BallUCSP,2-PadSFN,3-PinSOT23and6-Pin
TSOCPackages
19-6568; Rev 2; 1/17
Ordering Information appears at end of data sheet.

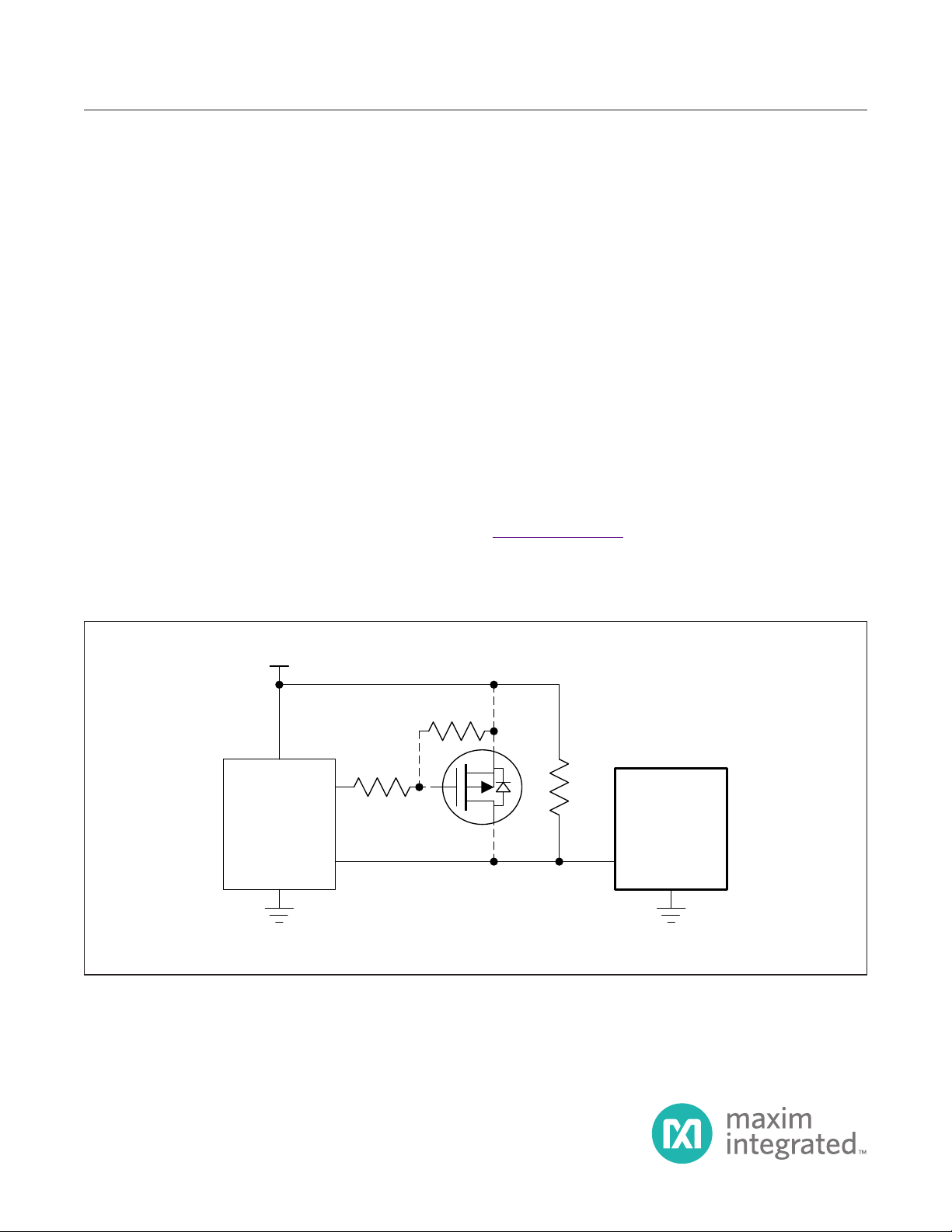

Typical Application Circuit
1-Wire is a registered trademark of Maxim Integrated Products, Inc.
µC
PIOX
PIOY
100kΩ
DS28E05
R
PUP
V
CC
Q1
IO
*NOTE: OPTIONAL Q1 LOW-IMPEDANCE BYPASS
OR EQUALLY DRIVE LOGIC ‘1’ WITH PIOY
BIDIRECTIONAL
GND
V
CC
GND
OPEN DRAIN PORT
1kΩ
*PMV65XP
