DS90LV031A
3V LVDS Quad CMOS Differential Line Driver
General Description
The DS90LV031Ais a quad CMOS differential line driver de-
signed for applications requiring ultra low power dissipation
and high data rates. The device is designed to support data
rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage
Differential Signaling (LVDS) technology.
The DS90LV031A accepts low voltage TTL/CMOS input lev-
els and translates them to low voltage (350 mV) differential
output signals. In addition the driver supports a TRI-STATE
®
function that may be used to disable the output stage, dis-
abling the load current, and thus dropping the device to an
ultra low idle power state of 13 mW typical.
The EN and EN* inputs allow active Low or active High con-
trol of the TRI-STATE outputs. The enables are common to
all four drivers. The DS90LV031A and companion line re-
ceiver (DS90LV032A) provide a new alternative to high
power psuedo-ECL devices for high speed point-to-point in-
terface applications.
Features
n
>
400 Mbps (200 MHz) switching rates
n 0.1 ns typical differential skew
n 0.4 ns maximum differential skew
n 2.0 ns maximum propagation delay
n 3.3V power supply design
n
±
350 mV differential signaling
n Low power dissipation (13mW at 3.3V static)
n Interoperable with existing 5V LVDS devices
n Compatible with IEEE 1596.3 SCI LVDS standard
n Compatible with TIA/EIA-644 LVDS standard
n Industrial and Military operating temperature range
n Available in SOIC, TSSOP and Cerpack surface mount
packaging
n Standard Microcircuit Drawing (SMD) 5962-9865201

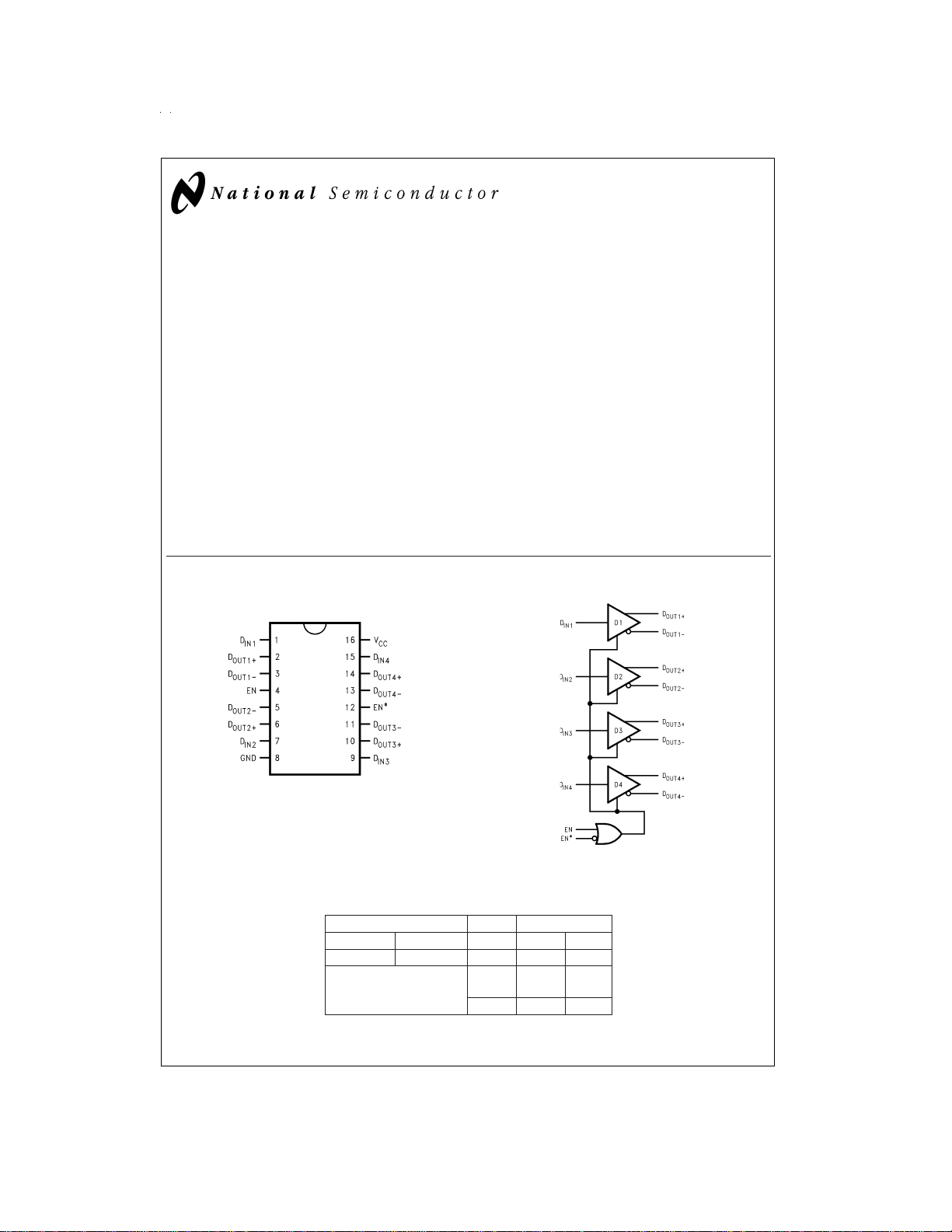

Connection Diagram Functional Diagram
Truth Table
DRIVER
Enables Input Outputs
EN EN
*
D
IN
D
OUT+
D
OUT−
LHXZZ
All other combinations of
ENABLE inputs
LLH
HHL
TRI-STATE
®
is a registered trademark of National Semiconductor Corporation.
Dual-In-Line
DS100095-1
Order Number DS90LV031ATM
or DS90LV031ATMTC
or DS90LV031AW
See NS Package Number M16A or MTC16 or W16A
DS100095-2
July 1999
DS90LV031A 3V LVDS Quad CMOS Differential Line Driver
© 1999 National Semiconductor Corporation DS100095 www.national.com
