DS90C032
www.ti.com
SNLS094C –MAY 2004–REVISED MAY 2007
DS90C032 LVDS Quad CMOS Differential Line Receiver
Check for Samples: DS90C032
1
FEATURES
2
• >155.5 Mbps (77.7 MHz) switching rates
• Pin compatible with DS26C32A, MB570
(PECL), and 41LF (PECL)
• Accepts small swing (350 mV) differential
signal levels • Supports OPEN input fail-safe
• Ultra low power dissipation • Supports short and terminated input fail-safe
with the addition of external failsafe biasing
• 600 ps maximum differential skew (5V, 25°C)
• Compatible with IEEE 1596.3 SCI LVDS
• 6.0 ns maximum propagation delay
standard
• Industrial operating temperature range
• Conforms to ANSI/TIA/EIA-644 LVDS standard
• Military operating temperature range option
• Available to Standard Microcircuit Drawing
• Available in surface mount packaging (SOIC)
(SMD) 5962-95834
and (LCCC)
DESCRIPTION
TheDS90C032 is a quad CMOS differential line receiver designed for applications requiring ultra low power
dissipation and high data rates. The device supports data rates in excess of 155.5 Mbps (77.7 MHz) and uses
Low Voltage Differential Signaling (LVDS) technology.
TheDS90C032 accepts low voltage (350 mV) differential input signals and translates them to CMOS (TTL
compatible) output levels. The receiver supports a TRI-STATE function that may be used to multiplex outputs.
The receiver also supports OPEN, shorted, and terminated (100Ω) input Failsafe with the addition of external
failsafe biasing. Receiver output will be HIGH for both Failsafe conditions.
TheDS90C032 and companion line driver (DS90C031) provide a new alternative to high power pseudo-ECL
devices for high speed point-to-point interface applications.

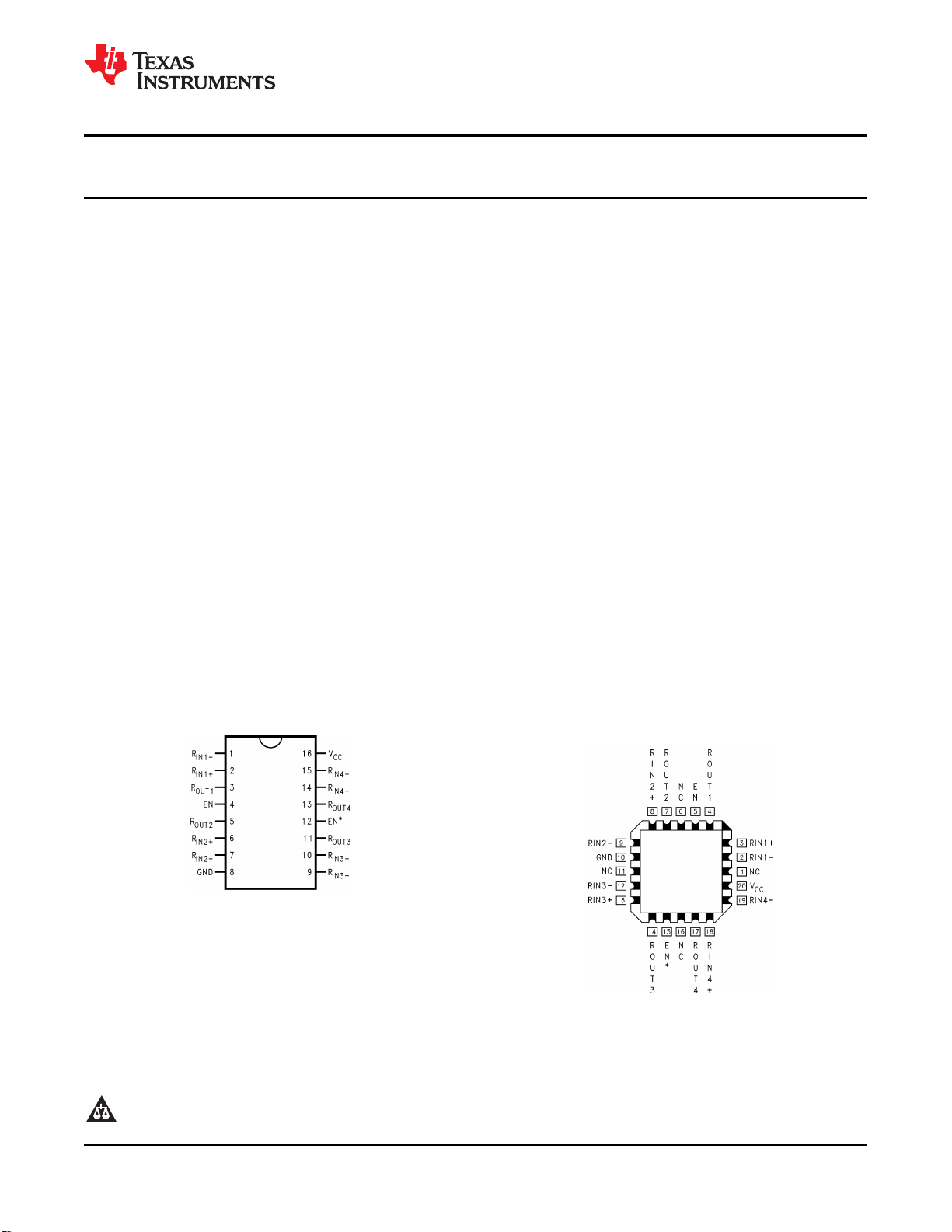

Connection Diagram
Dual-In-Line
LCCC Package
Figure 1. See Package Number D (R-PDSO-G16)
Figure 2. See Package Number NAJ0020A
For complete Military Specifications, refer to
appropriate SMD or MDS
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2004–2007, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
