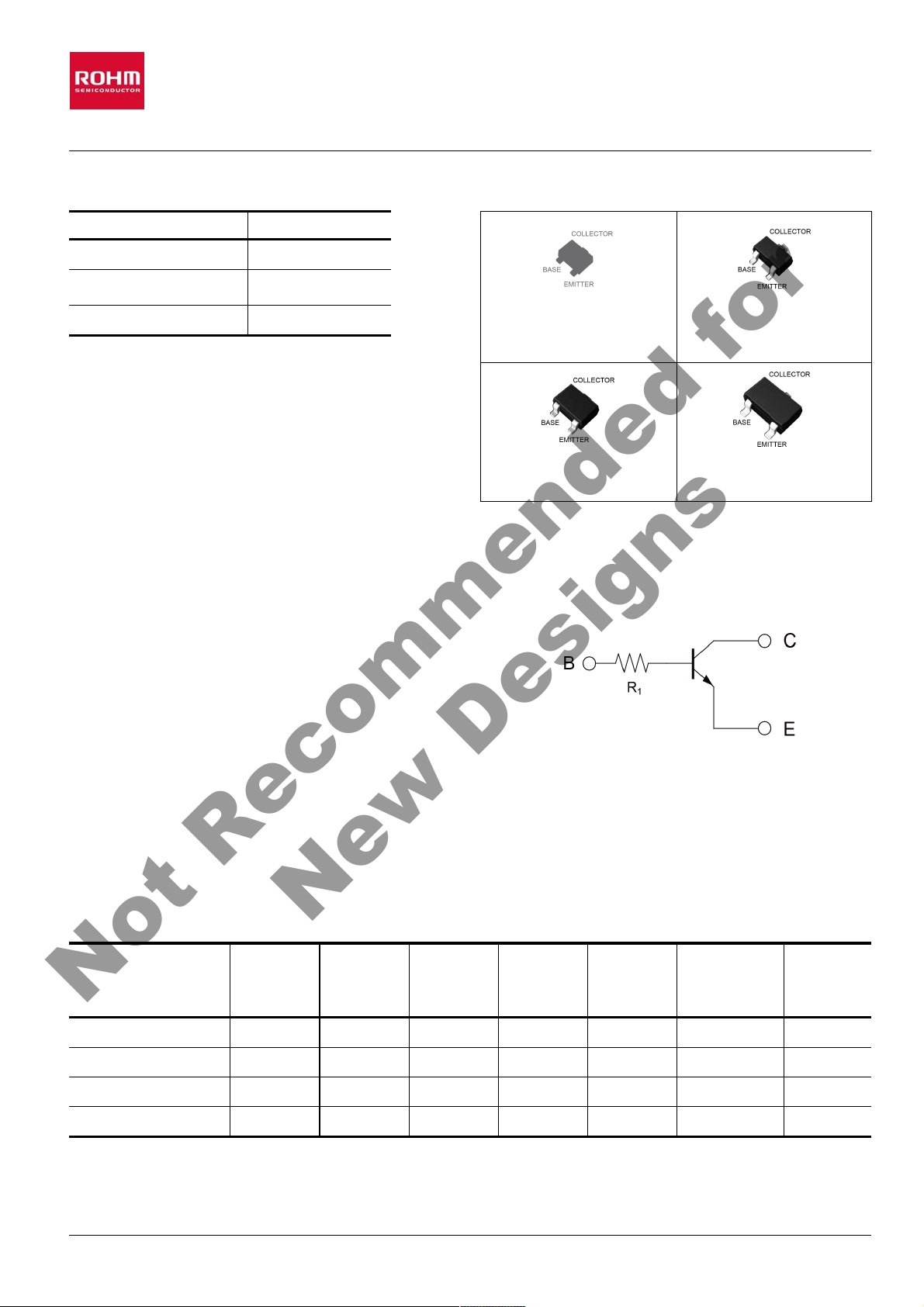

DTC115T series
NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
llOutline
Parameter Value
VMT3
EMT3
V
CEO
50V
I
C
100mA
R
1
100kΩ
DTC115TM DTC115TE
(SC-105AA) SOT-416(SC-75A)
UMT3
SMT3
llFeatures
1) Built-In Biasing Resistor
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit) .
3) The bias resistors consist of thin-film resistors
with complete isolation to allow negative biasing
of the input. They also have the advantage of
completely eliminating parasitic effects.
4) Only the on/off conditions need to be set
for operation, making the circuit design easy.
5) Complementary PNP Types: DTA115T series
6) Lead Free/RoHS Compliant.
DTC115TUA DTC115TKA
SOT-323(SC-70) SOT-346(SC-59)
llInner circuit
llApplication B: BASE
Switching circuit, Inverter circuit, Interface circuit, C: COLLECTOR
Driver circuit E: EMITTER
llPackaging specifications
Part No. Package
Package
size
Taping
code
Reel size
(mm)
Tape width
(mm)
Basic
ordering
unit.(pcs)
Marking
DTC115TM VMT3 1212 T2L 180 8 8000 09
DTC115TE EMT3 1616 TL 180 8 3000 09
DTC115TUA UMT3 2021 T106 180 8 3000 09
DTC115TKA SMT3 2928 T146 180 8 3000 09
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
1/7
20121023 - Rev.001
Not Recommended for
New Designs
