Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

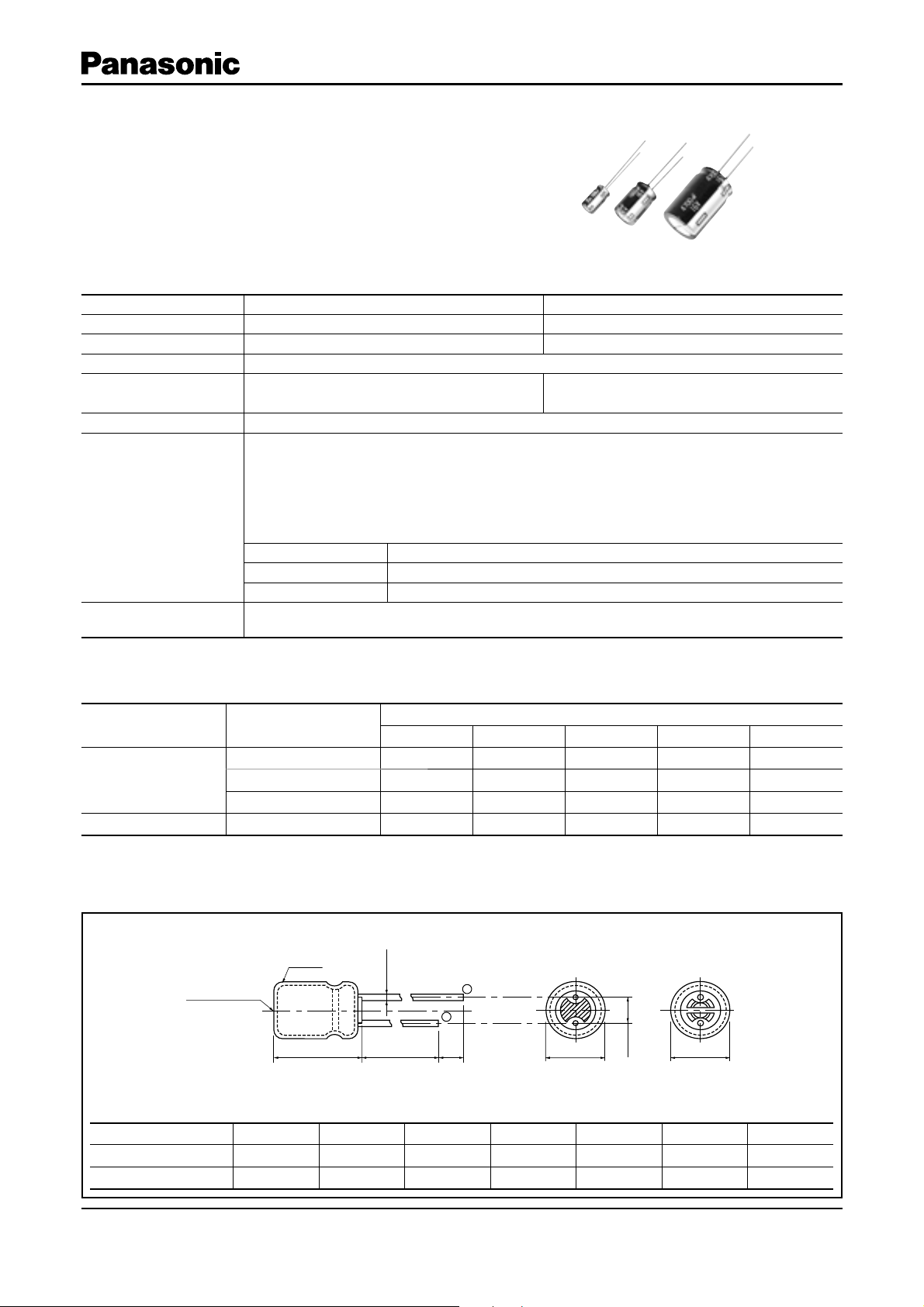

Aluminum Electrolytic Capacitors/ NHG
– EEE-99 –
08
0D±0.5
F±0.5
Sleeve
14 min.
3 min.
L
=
=L16 : L±1.0
L20 : L±2.0
Pressure relief
06.3
+
–
010
0D±0.5
fd±0.05
■ Features
●
Endurance : 105 °C 1000 h to 2000 h
●
RoHS directive compliant
Radial Lead Type
Series:
NHG
Type:
A
■ Speci cations
Category Temp. Range –55 °C to +105 °C –25 °C to +105 °C
Rated W.V. Range 6.3 V.DC to 100 V.DC 160 V.DC to 450 V.DC
Nominal Cap. Range 2.2 μF to 22000 μF 1 μF to 330 μF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Cur rent
I
<
0.01 CV or 3 (μA) After 2 minutes
(Which is greater)
I
<
0.06 CV +10 (μA) After 2 minutes
tan
d
Please see the attached standard products list
Endurance
After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The sum
of DC and ripple peak voltage shall not exceed the rated working voltage), When the capacitors
are restored to 20 °C, the capacitors shall meet the limits specifi ed below.
Duration : 6.3 V.DC to 100 V.DC : (
0
5 to
0
8)=1000 hours, (
0
10 to
0
18)=2000 hours
160 V.DC to 450 V.DC : 2000 hours
Capacitance change ±20 % of initial measured value
tan
d
<
200 % of initial specifi ed value
DC leakage current
<
initial specifi ed value
Shelf Life
After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)
■ Di men sions in mm (not to scale)
W.V.(V.DC) Cap. (μF)
Frequency (Hz)
60 120 1 k 10 k 100 k
6.3 to 100
2.2 to 33 0.75 1.00 1.55 1.80 2.00
47 to 470 0.80 1.00 1.35 1.50 1.50
1000 to 22000 0.85 1.00 1.10 1.15 1.15
160 to 450 1 to 330 0.80 1.00 1.35 1.50
1.50
■ Frequency correction factor for ripple current
Body Dia.
0
D5 6.3 8 1012.516 18
Lead Dia.
0
d 0.5 0.5 0.6 0.6 0.6 0.8 0.8
Lead space F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
(Unit : mm)
02 May. 2014
