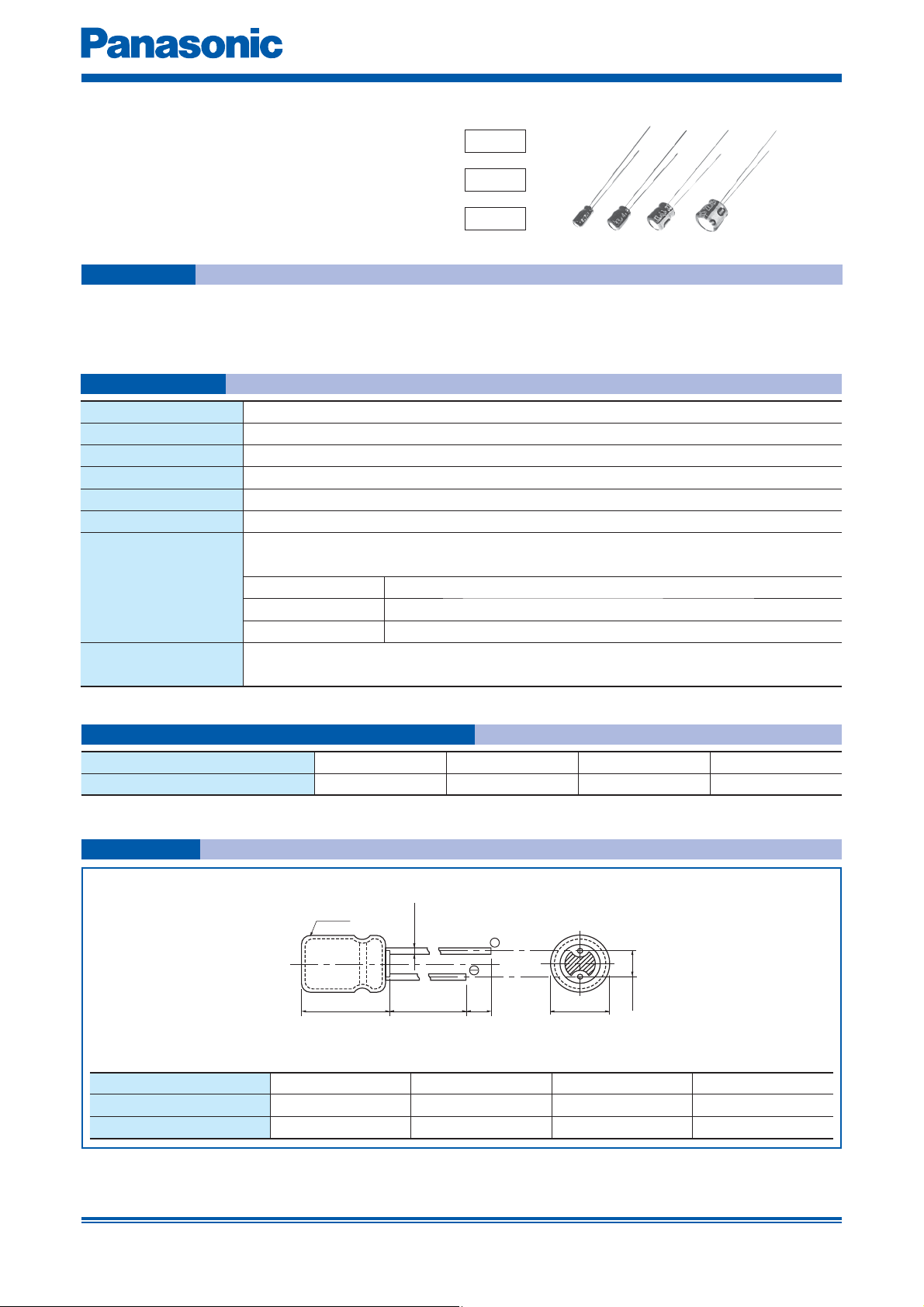

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Aluminum Electrolytic Capacitors (Radial Lead Type)
0D±0.5
F±0.5
Sleeve
14 min.
3 min.
L±1.0
+
–
fd±0.05
●
Endurance : 85 °C 1000 h
●
5 mm height
●
RoHS compliant
Features
Radial Lead Type
Series : KS Type : A
Speci cations
Frequency correction factor for ripple current
(Unit : mm)
Dimensions
Frequency (Hz) 50, 60 120 1 k 10 k to
Correction factor 0.70 1.00 1.30 1.70
Category temperature range
–40 °C to +85 °C
Rated voltage range 4 V.DC to 50 V.DC
Capacitance range 2.2 µF to 330 µF
Capacitance tolerance ±20 % (120 Hz/+20 °C)
Leakage current I
<
0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
Dissipation factor (tan d) Please see the attached characteristics list
Endurance
After applying rated working voltage for 1000 hours at +85 °C±2 °C, when the capacitors are
restored to 20°C capacitors, shall meet the following limits.
Capacitance change Within ±20 % of the initial value (4 V.DC : ±30 %)
tan d
< 200 % of the initial limit
DC leakage current Within the initial limit
Shelf life
After storage for 1000 hours at +85 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)
0
D456.38
0
d 0.45 0.45 0.45 0.45
F 1.5 2.0 2.5 2.5
M
KA
7 mm height
↑
Low Profi le
↑
KS
5 mm height
Mar. 201604
