Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

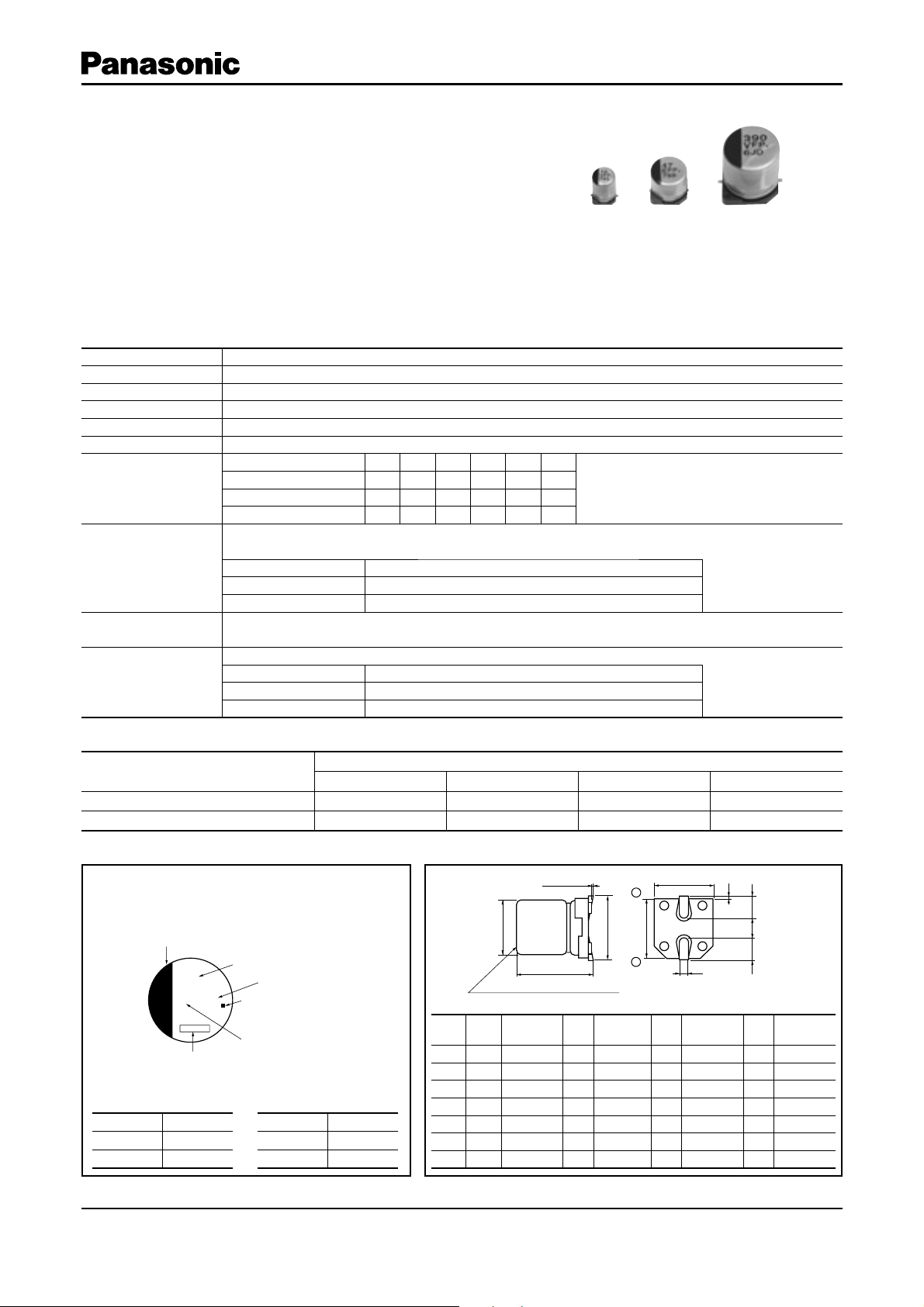

Aluminum Electrolytic Capacitors/ FP
– EEE-47 –
'1K
Capacitance (µF)
Series identification
Lot number
Negative polarity
marking (–)
Rated voltage Mark
Mark for Lead-Free
Products Black Dot
(Square)
A±0.2
W
( ) Reference size
L
0D±0.5
H
B±0.2
(I)
K
(P)
(I)
+
–
0.3 max.
Pressure Relief (010 and larger)
■ Features
●
Low ESR (30 % to 50 % less than FK series)
●
Endurance: 2000 h at 105 °C
●
Vibration-proof product is available upon request. (
0
8 mm and larger)
● AEC-Q200 qualifi ed
✽
●
RoHS directive compliant
Surface Mount Type
Series:
FP
Type:
V
FP High temperature Lead-Free re ow (suf x:A
✽
)
■ Speci cations
■ Di men sions in mm(not to scale) ■ Marking
Example:6.3 V 22 μF
Marking color: BLACK
Category Temp. Range –55 °C to +105 °C
Rated W.V. Range 6.3 V.DC to 50 V.DC
Nominal Cap. Range 10 µF to 1800 µF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Cur rent I
<
0.01 CV or 3 (A) After 2 minutes (whichever is greater)
tan
d
Please see the attached standard products list
Characteristics
at Low Temperature
W.V. (V) 6.3 10 16 25 35 50
(Impedance ratio at 120 Hz)
Z(–25 °C)/Z(+20 °C) 222222
Z(–40°C)/Z(+20 °C) 333333
Z(–55°C)/Z(+20 °C) 444333
Endurance
After applying rated working voltage at +105 °C ±2 °C for 2000 hours the capacitors shall meet the
limits specifi ed below. Post-test requirement at +20 °C
Capacitance change
±30 % of initial measured value
tan
d
<
200 % of initial specifi ed value
DC leakege current
<
initial specifi ed value
Shelf Life
After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized at +20 °C,
capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)
Resistance to
Soldering Heat
After refl ow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change ±10 % of initial measured value
tan
d
<
initial specifi ed value
DC leakage current
<
initial specifi ed value
Size
code
D L A, B H I W P K
B 4.0 5.8±0.30 4.3 5.5 max. 1.8 0.65±0.1 1.0 0.35
- 0.20
C 5.0 5.8±0.30 5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35
- 0.20
D 6.3 5.8±0.30 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35
- 0.20
D8 6.3 7.7±0.30 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35
- 0.20
E 8.0 6.2±0.30 8.3 9.5 max. 3.4 0.65±0.1 2.2 0.35
- 0.20
F 8.0 10.2±0.30 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.20
G 10.0 10.2±0.30 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.20
+ 0.15
+ 0.15
+ 0.15
+ 0.15
+ 0.15
Cap (µF)
Frequency (Hz)
120 1 k 10 k 100 k to
10 to 470 0.65 0.85 0.95 1.00
560 to 1800 0.75 0.90 0.95 1.00
■ Frequency correction factor for ripple current
(Unit : mm)
j 6.3 V
A 10 V
C 16 V
Rated Voltage Mark
E 25 V
V 35 V
H 50 V
✽
This product qualify for AEC-Q200, but it has some deviations.
01 Mar. 2014
