EEF-SX0E331XR 产品手册 - Panasonic（松下）
制造商:
Panasonic（松下）
分类:
铝电解电容
封装:
2917
描述:
铝有机聚合物电容器 330uF 2.5volt
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P1
标记信息在P1
封装信息在P2
技术参数、封装参数在P1
导航目录
EEF-SX0E331XR数据手册
Page:
of 8 Go

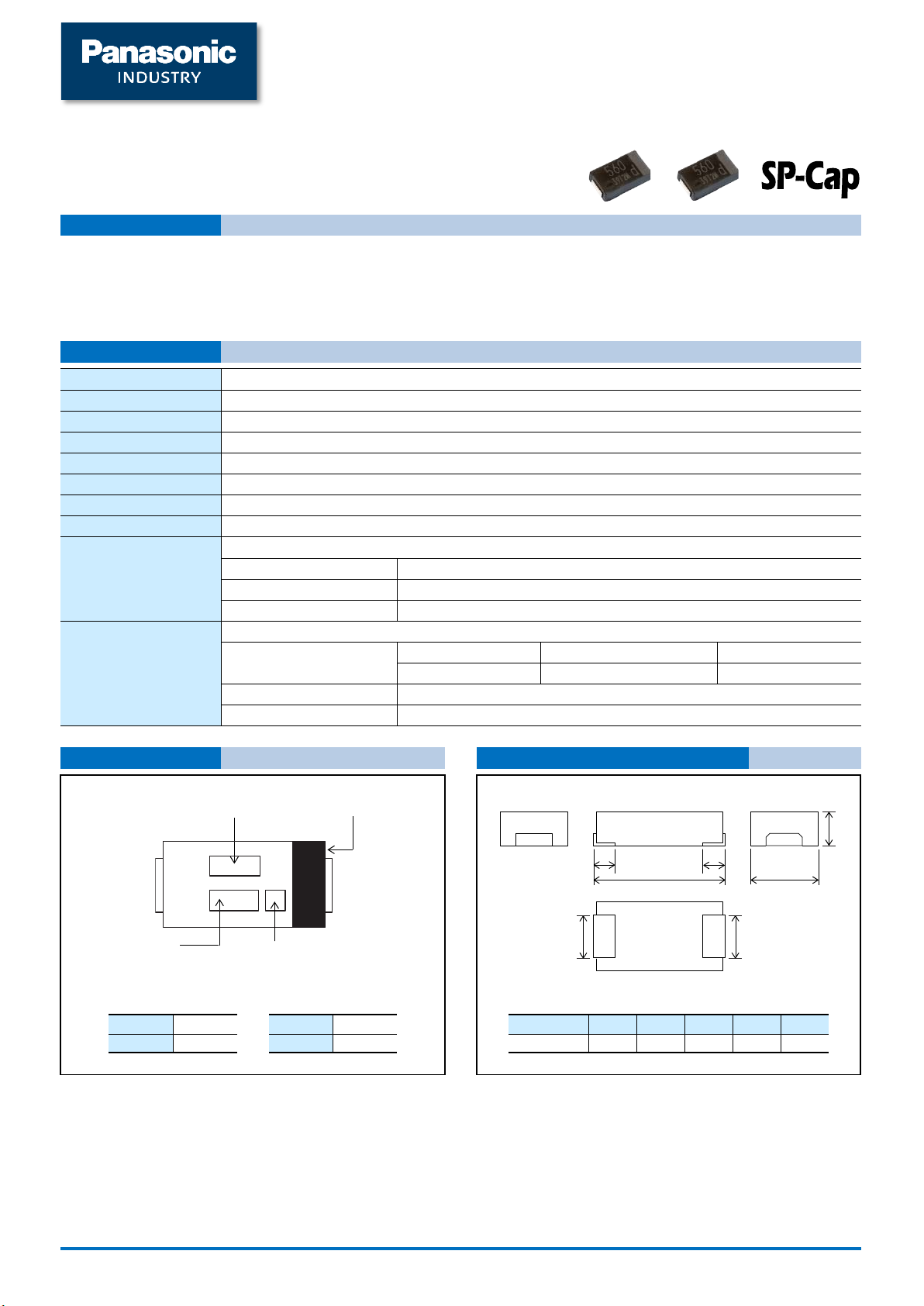

若手册格式错乱，请下载阅览PDF原文件
Conductive Polymer Aluminum
Electrolytic Capacitors
● Large capacitance（560 μF max.）
● Low ESR（4.5 mΩ to 9 mΩ max.）
● High ripple current（8500 mA rms max.）
● RoHS compliance, Halogen free
R. voltage code
Unit：V Unit：ｍｍ
✽ Externals of figure are the reference.
SX
series
DC leakage current
Capacitance tolerance
±20 % (120 Hz / +20 ℃)
DC leakage current
I ≦ 0.1 CV (μA) 2 minutes
Dissipation factor (tan δ)
≦ 0.06 (120 Hz / + 20 ℃)
+105 ℃ 2000 h, rated voltage applied
Capacitance change
Within ±20 % of the initial value
Dissipation factor（tan δ)
≦ 2 times of the initial limit
Endurance
Dissipation factor（tan δ)
≦ 3 times of the initial limit
DC leakage current
Rated voltage range
Nominal cap. range
2.0 V to 6.3 V
82 μF to 560 μF
–55 ℃ to +105 ℃
Features
Specifications
Series
Category temp. range
SX
+60 %, –20 %
+50 %, –20 %
≦ 2 times of the initial limit
6.3 V
2.0 V to 2.5 V
4.0 V
+70 %, –20 %
Series
L
±0.2
W1±0.2
Dimensions (not to scale)
d
2.0
g
Marking
4.0
H
±0.1
Should a safety concern arise regarding this product, please be sure to contact us immediately.
23-Apr-18
Surge voltage (V)
Rated voltage × 1.25 (15 ℃ to 35 ℃)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
2.4
1.9
1.3
4.3
SX
7.3
6.3
e
Surface Mount Type
［Low ESR products］
2.5
j
Damp heat
(Steady state)
+60 ℃, 90 %, 500 h, No-applied voltage
Capacitance change of
initial measurd value
Within the initial limit
P
±0.3
W2±0.1
Capacitance (μF）
R. voltage code
Polarity bar (Positive)
Lot No.
L
⊖
⊕
W2
W2
H
P
P
W1
