Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

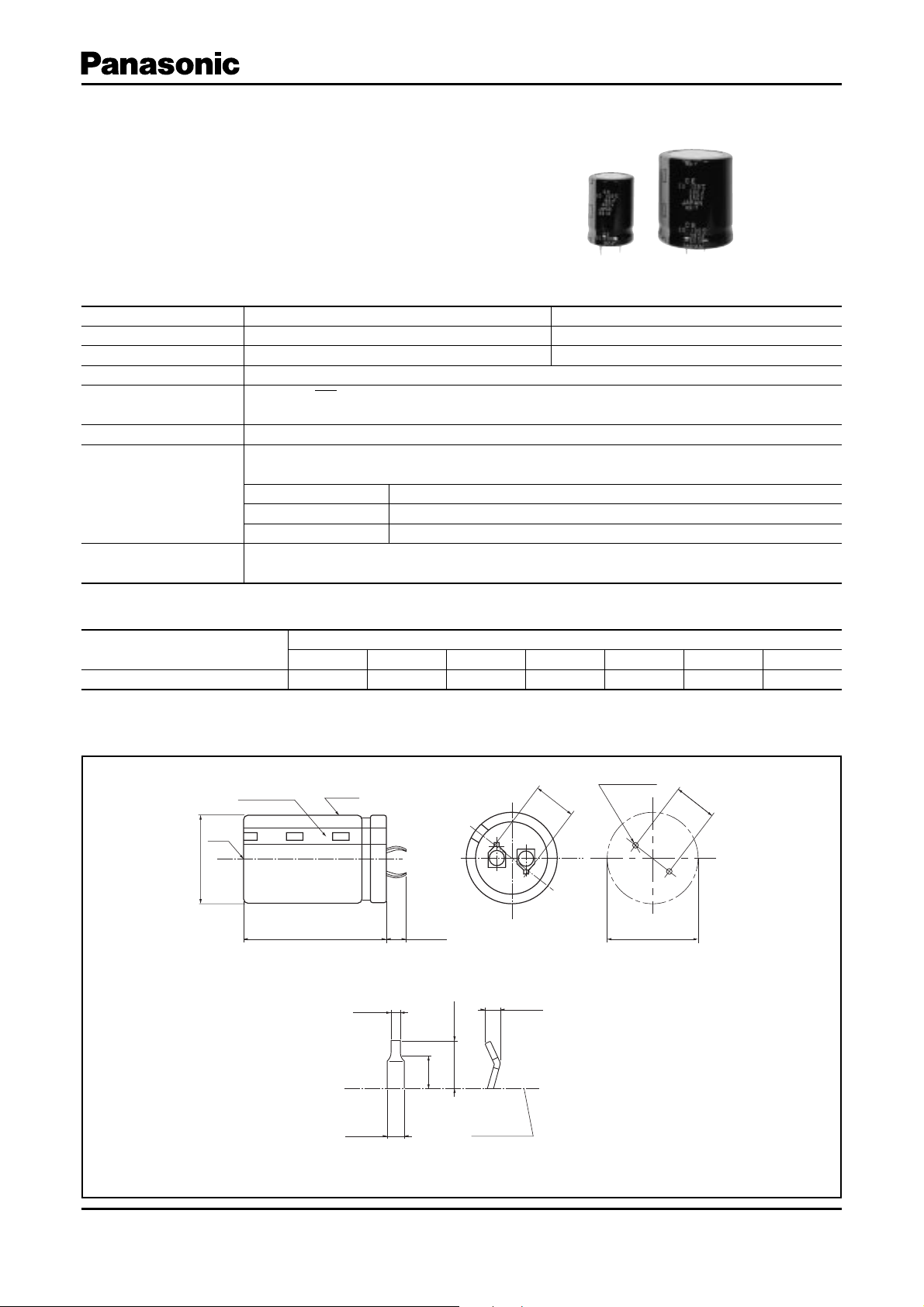

Aluminum Electrolytic Capacitors/ ED
– EEE-131 –
φD+1.0 max.
1.5±0.2
2.0 max. Terminal
(t=0.8)
4.0±0.5
4.0±0.5
(3.5)
Top of spin
Standard terminal type does not require
terminal trimming process.
Rated voltage etc. indicate to sleeve.
L+2.0 max.
(10.0)
10.0±0.1
2-φ2.0±0.1
Sleeve
Vent
Polarity bar
Recommended PWB piercing plan
0.8
+0.2
–0.1
(φD)
■ Features
●
Endurance : 105 °C 3000 h
●
High ripple current capability in high frequency range.
●
RoHS directive compliant
Snap-in Type
Series:
ED
Type:
TS
■ Specifi cations
■ Di men sions in mm (not to scale)
Category Temp. Range –40 °C to + 105 °C –25 °C to +105 °C
Rated W.V. Range 200 V.DC to 250 V.DC 40 0 V.DC to 450 V.DC
Nominal Cap. Range 220 µF to 2200 µF 56 µF to 560 µF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Current
3
앀
CV (µA) max. After 5 minutes application of rated working voltage at +20 °C
C : Capacitance (µF) V: W.V. (V.DC)
tan
δ
Please see the attached standard products list
Endurance
After 3000 hours application of DC voltage with specifi ed ripple current (
<
rated DC working
voltage) at +105 °C±2 °C, the capacitors shall meet the following limits.
Capacitance change
<
±20 % of initial measured value
tan
δ
<
200 % of initial specifi ed value
DC leakage current
<
initial specifi ed value
Shelf Life
After storage for 1000 hours at +105 °C±2 °C within no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specifi ed in Endurance (With voltage treatment)
(Unit : mm)
Frequency (Hz)
50 60 100 120 5001 k10 k to
Correction factor 0.50 0.55 0.68 0.70 0.85 0.90 1.00
■ Frequency correction factor for ripple current
00 Nov. 2012
