3. System Overview
3.1 Introduction
The EFM32PG1 product family is well suited for any battery operated application as well as other systems requiring high performance
and low energy consumption. This section gives a short introduction to the MCU system. The detailed functional description can be
found in the EFM32PG1 Reference Manual.

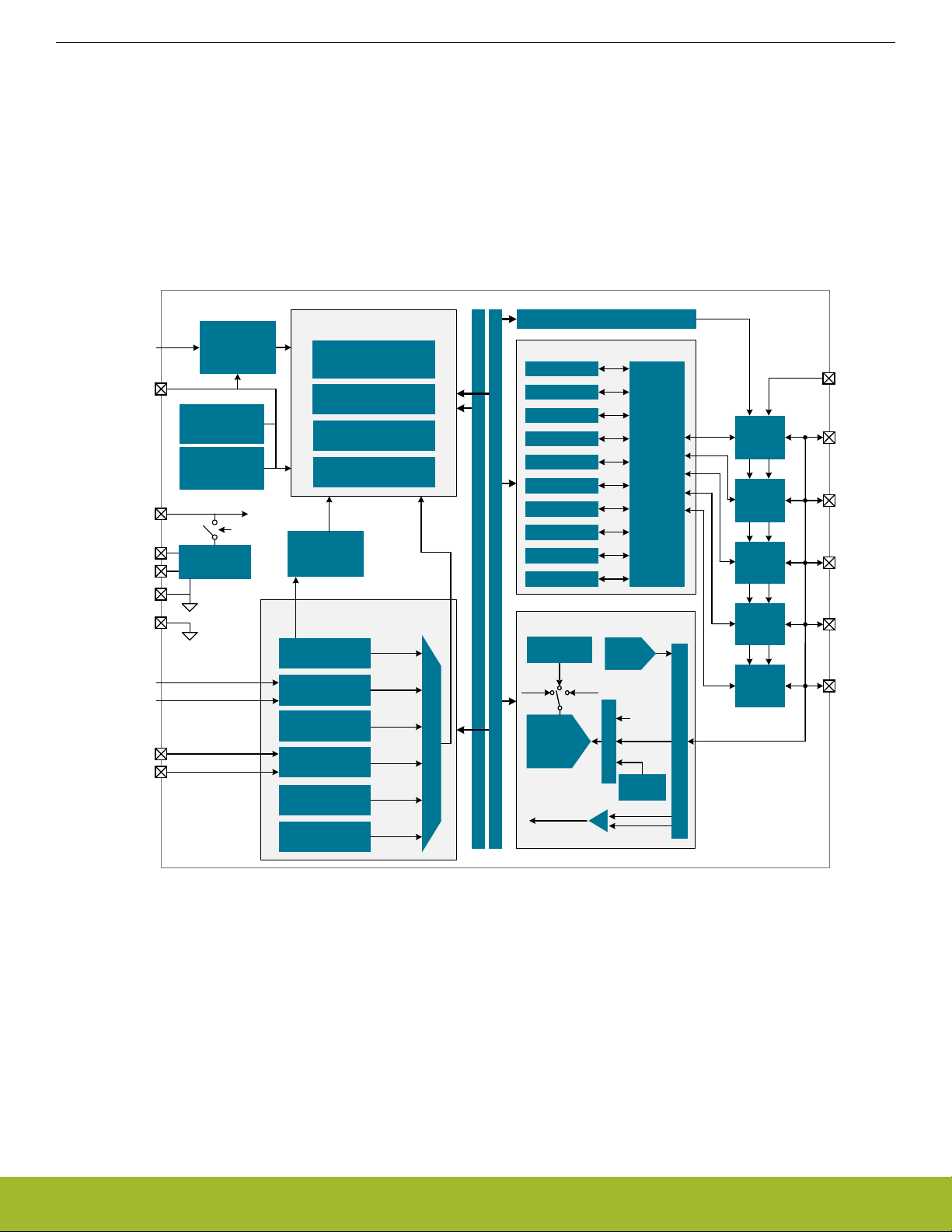

A block diagram of the EFM32PG1 family is shown in Figure 3.1 Detailed EFM32PG1 Block Diagram on page 3. The diagram shows
a superset of features available on the family, which vary by OPN. For more information about specific device features, consult Order-
ing Information.
Clock Configuration
Analog Peripherals
LFXTAL_P
LFXTAL_N
LFXO
IDAC
ARM Cortex-M4 Core
Up to 256 KB ISP Flash
Program Memory
Up to 32 KB RAM
A
H
B
Watchdog
Timer
DC-DC
Converter
DVDD
Reset
Management
Unit
Voltage
Monitor / Brown
Out Detector
RESETn
Reset
Debug /
Programming
Hardware
Digital Peripherals
Input MUX
Port
Mapper
Port I/O Configuration
I2C
Analog Comparator
12-bit ADC
Temp
Sensor
VREFVDD
VDD
Internal
Reference
TIMER
CRYOTIMER
PCNT
USART
Port A
Drivers
Port B
Drivers
PAn
Port C
Drivers
PCn
PBn
Port D
Drivers
PDn
LETIMER
RTC / RTCC
IOVDD
AUXHFRCO
HFRCO
ULFRCO
HFXO
Port F
Drivers
PFn
Serial Wire
(shared w/ GPIO)
Memory Protection Unit
LFRCO
A
P
B
LEUART
CRYPTO
CRC
DMA Controller
+
-
APORT
Power Net
VREGVDD
VSS
VREGVSS
VREGSW
bypass
HFXTAL_P
HFXTAL_N
(shared w/ GPIO)
Figure 3.1. Detailed EFM32PG1 Block Diagram
EFM32PG1 Data Sheet
System Overview
silabs.com | Smart. Connected. Energy-friendly. Rev. 1.1 | 3
