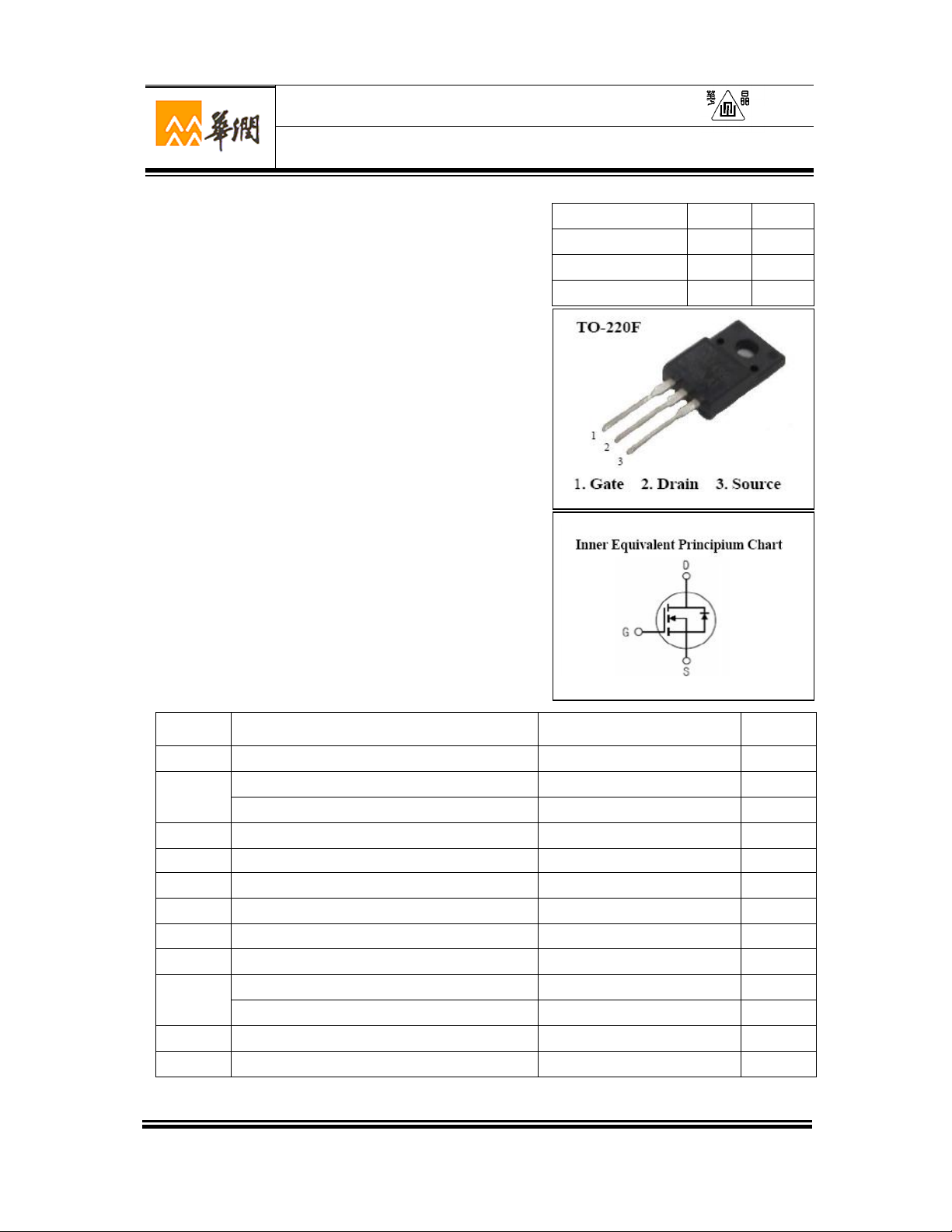

CS7N80F A9
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of 10 2015V01
○
R
Silicon N-Channel Power MOSFET
General Description：
CS7N80F A9, the silicon N-channel Enhanced
VDMOSFETs, is obtained by the self-aligned planar Technology
which reduce the conduction loss, improve switching
performance and enhance the avalanche energy. The transistor
can be used in various power switching circuit for system
miniaturization and higher efficiency. The package form is
TO-220F, which accords with the RoHS standard.
Features：
l Fast Switching
l Low ON Resistance(Rdson≤1.8Ω )
l Low Gate Charge (Typical Data:34nC)
l Low Reverse transfer capacitances(Typical:12pF)
l 100% Single Pulse avalanche energy Test
Applications：
ATX Power、LED Power.
Absolute（Tc= 25 unless otherwise specified℃ ）：
Symbol
Parameter
Rating Units
V
DSS
Drain-to-Source Voltage
800
V
I
D
Continuous Drain Current
7
A
Continuous Drain Current T
C
= 100 °C
4
A
I
DM
a1
Pulsed Drain Current
28
A
V
GS
Gate-to-Source Voltage
±30 V
E
AS
a2
Single Pulse Avalanche Energy
150
mJ
E
AR
a1
Avalanche Energy ,Repetitive
20
mJ
I
AR
a1
Avalanche Current
2
A
dv/dt
a3
Peak Diode Recovery dv/dt
5.0
V/ns
P
D
Power Dissipation
48
W
Derating Factor above 25°C
0.38
W/℃
T
J
，T
stg
Operating Junction and Storage Temperature Range
150，–55 to 150 ℃
T
L
Maximum Temperature for Soldering
300
℃
V
DSS
800 V
I
D
7 A
P
D
(T
C
=25℃)
48 W
R
DS(ON)Typ
1.5 Ω
