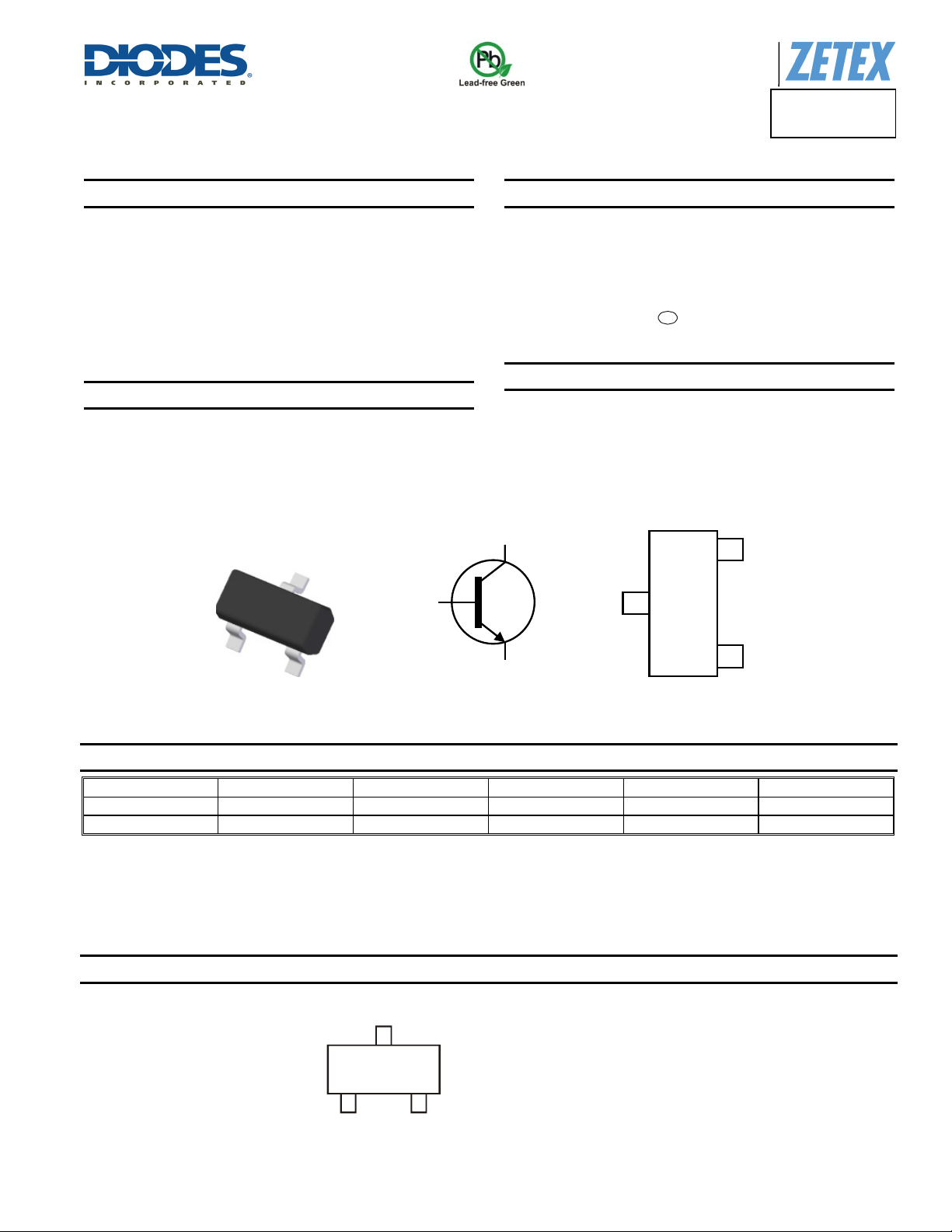

FMMT415-FMMT417
Datasheet Number: DS33084 Rev. 5 - 2
1 of 7
www.diodes.com
February 2014
© Diodes Incorporated
FMMT415
FMMT417
A
Product Line o
f
Diodes Incorporated
NPN AVALANCHE TRANSISTOR IN SOT23
Features
• Avalanche Transistor
• 60A Peak Avalanche Current (Pulse width = 20ns)
• BV
CES
> 260V (415) & 320V (417)
• BV
CEO
> 100V
• Specifically designed for Avalanche mode operation
• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Description
The FMMT415/417 are NPN silicon planar bipolar transistors
designed for operating in avalanche mode. Tight process control and
low inductance packaging combine to produce high current pulses
with fast edges.
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic. “Green” Molding Compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
• Weight: 0.008 grams (Approximate)
Applications
• Laser Diode Drivers for Ranging and Measurement (LIDAR)
• Automotive Radar Systems
Adaptive Cruise Control
Collision Avoidance System
• Fast Edge Switch Generator
• High Speed Pulse Generators
Ordering Information (Note 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT415TD AEC-Q101 415 7 8 500
FMMT417TD AEC-Q101 417 7 8 500
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green”
and Lead-free.
3. Halogen- and Antimony-free “Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
xxx = Product Type Marking Code
(See Ordering Information)
e3
Top View
Pin-Out
Top View
Device Symbol
C
E
B
C
E
B
SOT23
589
xxx
