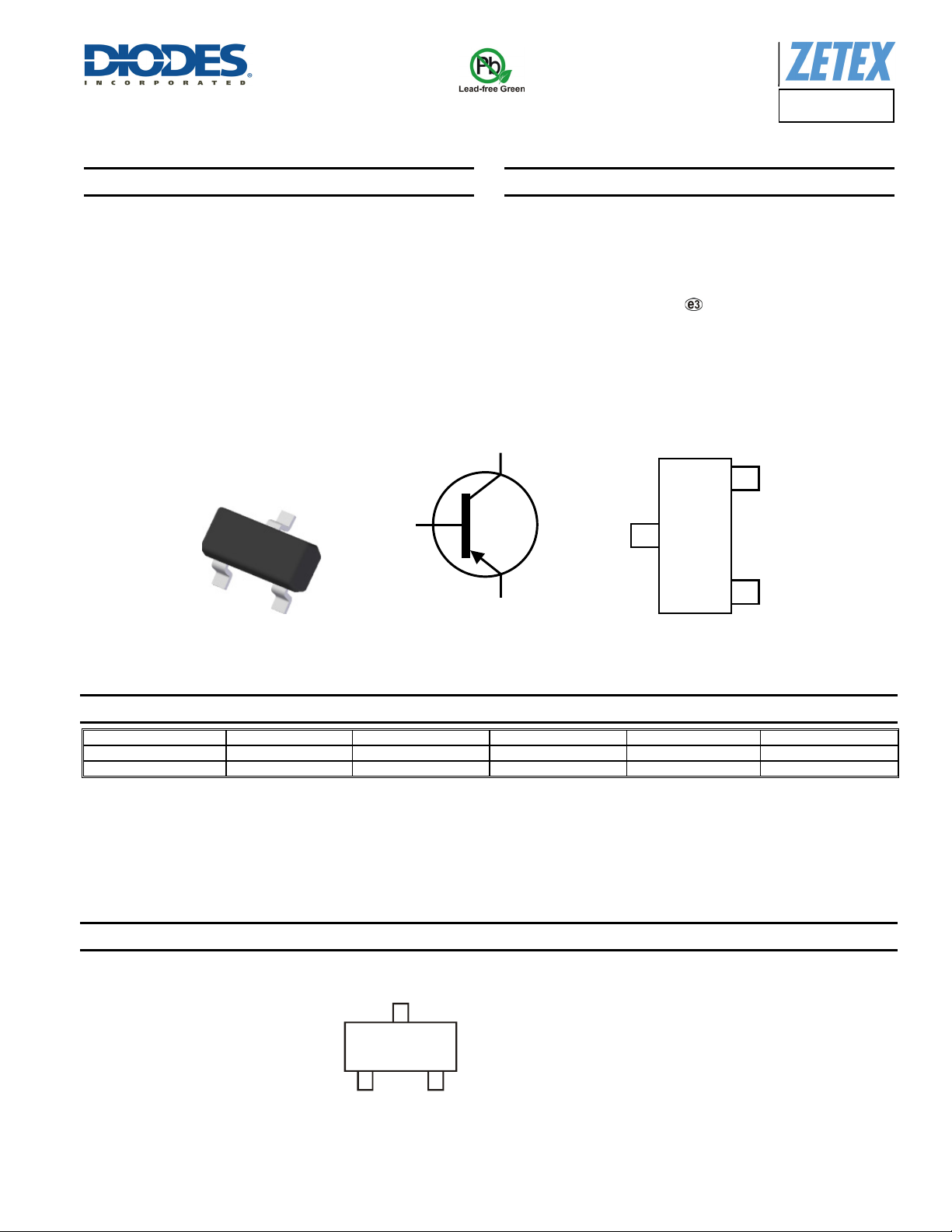

FMMT558
Datasheet Number: DS33101 Rev. 5 - 2
1 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
FMMT558
400V PNP HIGH VOLTAGE TRANSISTOR IN SOT23
Features
• BV
CEO
> -400V
• I
C
= -150mA high Continuous Collector Current
• I
CM
= -500mA Peak Pulse Current
• 500mW Power Dissipation
• Excellent h
FE
Characteristics Up To -100mA
• Complementary NPN Type: FMMT458
• Totally Lead-Free & Fully RoHS compliant (Note 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP capable (Note 4)
Mechanical Data
• Case: SOT23
• Case material: molded plastic. “Green” molding compound.
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.008 grams (Approximate)
Ordering Information (Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT558TA AEC-Q101 558 7 8 3,000
FMMT558QTA Automotive 558 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
558 = Product type Marking Code
SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
C
E
B
558
