©2008 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
FSBB30CH60C Rev. C2
FSBB30CH60C Motion SPM® 3 Series
September 2013
FSBB30CH60C
Motion SPM
®
3 Series
Features
• 600 V - 30 A 3 - Phase IGBT Inverter Bridge Including
Control ICs for Gate Driving and Protection
• Very Low Thermal Resistance by using AlN DBC
• Easy PCB Layout Thanks to Built - In Bootstrap
Diodes
• Three Separate Open - Emitter Pins from Low Side
IGBTs for Three Leg Current Sensing
• Single - Grounded Power Supply for Built - In HVICs
• Isolation Rating of 2500 Vrms / min.
Applications
• Motion Control - Home Appliance / Industrial Motor
Related Resources
• AN - 9044 : Motion SPM® 3 Series Users Guide
General Description
FSBB30CH60C Is An Advacned Motion SPM
®
3 Series
that Fairchild Has Newly Developed to Provide A Very
Compact and High Performance Inverter Solution for AC
Motor Drives in Low - Power Applications Such as Air
Conditioners. It Combines Optimized Circuit Protections
and Drives Matched to Low - Loss IGBTs. The System
Reliability Is Further Enhanced by The Integrated Under
- Voltage Lock - Out and Over - Current Protection. The
High Speed Built - In HVIC Provides Optocoupler - Less
Single - Supply IGBT Gate Driving Capability that Fur-
ther Reduces The Overall Size of The Inverter System.
Each Phase Leg Current of The Inverter Can Be Moni-
tored Thanks to Three Separate Negative DC Terminals.
Package Marking and Ordering Information

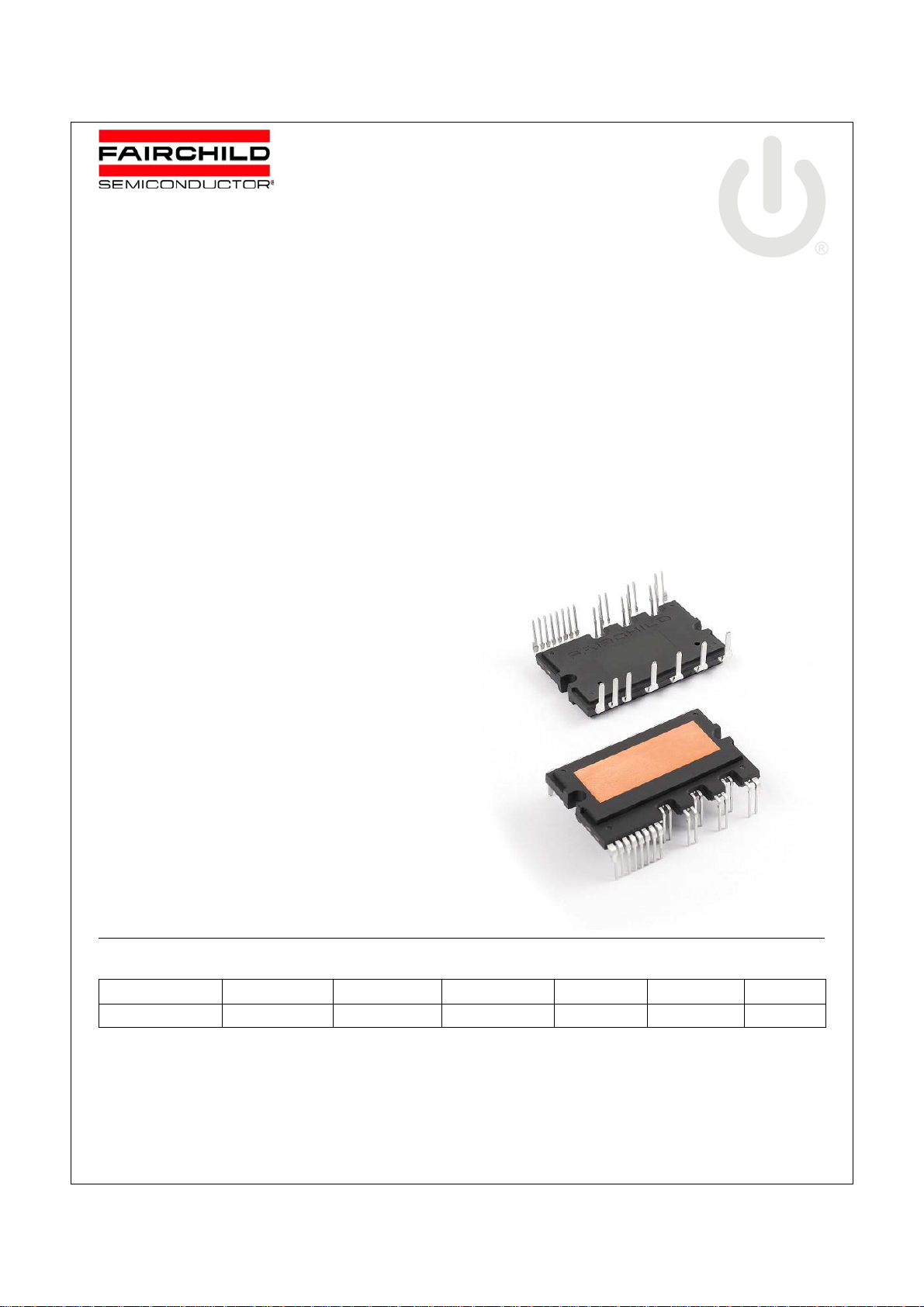

Figure 1. Package Overview
Device Marking Device Package Packing Type Reel Size Tape Width Quantity
FSBB30CH60C FSBB30CH60C SPMEC - 027 RAIL - - 10
